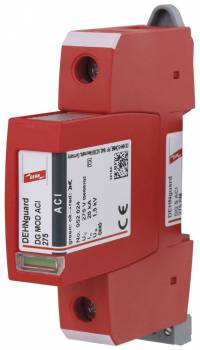

DEHN 952100 DG S ACI 275 FM surge protection device Type 2 guard S 1p 275 V ACI
|
179,64 EUR 181,76 EUR |
|||||||||||
|
( 213,77 EUR incl. VAT ) ≈ £150.36 | ≈ $197.42 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1003421 | ||||||||||
| Mfg Part No: | 952100 | ||||||||||
| UPC/EAN: | 4013364376526 | ||||||||||
| Weight: | 0.142 kg | ||||||||||
| Type: | DG S ACI 275 FM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 952100:
1-pole modular, pluggable surge arrester
with integrated ACI switch/spark gap, width 1TE
With remote signaling contact
Type 2 arrester according to EN 61643-11
Highest continuous voltage: 275 V ac
Protection level: < 1.5 kV
nominal discharge current: 20 kA
Additional external fuse not necessary
Energetic coordination according to DIN EN 62305-4
Arresters of the Red/Line family
Mechanical defect display for arresters
| General | |
| SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
| Energy coordination with terminal equipment (≤ 10 m) | type 2 + type 3 |
| Nominal voltage (a.c.) (UN) | 230 V (50 / 60 Hz) |
| Max. continuous operating voltage (AC) (UC) | 275 V (50 / 60 Hz) |
| Nominal discharge current (8/20 µs) (In) | 20 kA |
| Voltage protection level (UP) | ≤ 1.5 kV |
| Voltage protection level at 5 kA (UP) | ≤ 1,5 kV |
| Response time (tA) | ≤ 100 ns |
| Additional external fuse necessary | not required |
| Short-circuit withstand capability (ISCCR) | 25 kArms |
| Temporary overvoltage (UT) – characteristic | 440 V / 120 min. – withstand |
| Leakage current | no leakage current |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm2 solid / flexible |
| Cross-sectional area (max.) | 35 mm2 stranded / 25 mm2 flexible |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP 20 |
| Capacity | 1 Standard DIN module, DIN 43880 |
| Approvals | KEMA |
| Type of remote signalling contact | changeover contact |
| Switching capacity (a.c.) | 250 V / 0.5 A |
| Switching capacity (d.c.) | 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Cross-sectional area for remote signalling terminals | max. 1.5 mm2 solid / flexible |
Questions & answers
What is the delivery time of DEHN 952100 DG S ACI 275 FM surge protection device Type 2 guard S 1p 275 V ACI?
The article DEHN 952100 DG S ACI 275 FM surge protection device Type 2 guard S 1p 275 V ACI is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 952100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 952100 DG S ACI 275 FM surge protection device Type 2 guard S 1p 275 V ACI always at the best possible price. We can give you a discount of 2% on DEHN 952100 DG S ACI 275 FM surge protection device Type 2 guard S 1p 275 V ACI if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 952100 DG S ACI 275 FM surge protection device Type 2 guard S 1p 275 V ACI we can offer you a price of 168,86 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
