DEHN 929126 DPA M CLD RJ45B 48 surge protector patch 2 RJ45 sockets

Your rating:
Average rating
product review for DEHN 929126 DPA M CLD RJ45B 48 surge protector patch 2 RJ45 sockets
( 4.3 / 5 ) 14 ratings

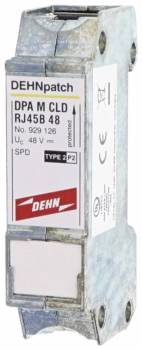

DEHN 929126
This image may differ from the desired article.
DEHN 929126DEHN 929126DEHN 929126DEHN 929126
93,48 EUR 94,55 EUR
( 111,24 EUR incl. VAT )
≈ £78.24  |  ≈ $102.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x DEHN 929126 DPA M CLD RJ45B 48 surge protector patch 2 RJ45 sockets
Datasheet:file_download Download
Lieske Part No.:1336758
Mfg Part No: 929126
UPC/EAN: 4013364242258
Weight:0.096 kg
Type:DPA M CLD RJ45B 48
Graduated prices net
From piecesPrice per pieces
687,87 EUR
1282,26 EUR
2476,65 EUR
3671,04 EUR

Product information for DEHN 929126:

The DEHN surge protection device DPA M CLD RJ45B 48 is a surge arrester for data networks and Ethernet applications, specifically designed for use in structured cabling. It protects Industrial Ethernet and Power over Ethernet (PoE) applications operating according to IEEE 802.3 up to PoE++ / 4PPoE. The device is suitable for applications classified as Class D up to 100 MHz and provides surge protection for all four wire pairs via RJ45 sockets. Mounting is on a 35 mm DIN rail in accordance with EN 60715, with earthing also achieved via the same rail. The housing is made of zinc die-cast and is finished in bare colour.

Applications
This surge arrester is intended for use in industrial and commercial network infrastructures, particularly in environments where high availability of data communication is required. It is ideal for use in structured cabling systems designed to Class D up to 100 MHz, and is suitable for PoE applications where power and data are transmitted over a single cable. The design allows for easy integration into existing systems, and the protection can be retrofitted if needed.

Functions and Features in Detail
Protection is provided by powerful gas discharge arresters covering all wire pairs (1/2, 3/6, 4/5, 7/8). The nominal voltage is 48 V, with the maximum continuous voltage for DC also being 48 V and for AC 34 V. For PoE applications, the maximum continuous voltage between wire pairs (Pa-Pa) is specified as 57 V. The nominal current is 1 A. The protection function is designed to respond quickly to surges, safeguarding connected devices.

Technology Explained Simply
The surge arrester is designed as an adapter version with two RJ45 sockets, allowing it to be installed between two network cables. The protection function is implemented using gas discharge arresters, which become conductive during surges and divert the energy to earth. The protection levels are ≤ 700 V for wire pair-to-wire pair and wire pair-to-earth (C2); for PoE applications (Pa-Pa), the protection level is ≤ 900 V. With a rapid voltage rise of 1 kV/µs (C3), the protection levels are ≤ 600 V (wire-to-wire) and ≤ 500 V (wire-to-earth). The cutoff frequency is 100 MHz, with insertion loss at this frequency being ≤ 3 dB. The capacitance per wire pair is ≤ 10 pF, ensuring minimal impact on data transmission. The operating temperature range extends from -40 °C to +80 °C.

Compatibility and Accessories
The surge arrester is suitable for use in structured cabling systems classified as Class D up to 100 MHz and supports PoE applications according to IEEE 802.3 up to PoE++ / 4PPoE. It is intended for use in surge protection concepts based on the lightning protection zone concept at interfaces 0 B – 2 and higher. Mounting is on a 35 mm DIN rail, enabling standardisation within enclosures. Earthing is achieved via the same DIN rail, ensuring easy installation.

Mounting and Installation
Mounting is on a 35 mm DIN rail in accordance with EN 60715. Earthing is achieved via the same rail, ensuring direct and efficient diversion of surges. The connection sockets are RJ45 sockets, allowing direct integration into existing networks. Wire pair assignment follows the standard 1/2, 3/6, 4/5, 7/8.

Operational Advantages
The surge arrester provides reliable protection for data communication lines against surges caused by lightning strikes or other electrical disturbances. The low insertion loss and low capacitance ensure that data transmission is not impaired. The wide operating temperature range allows use in various environments, even under extreme conditions. Mounting on the DIN rail and integrated earthing simplify installation and maintenance. The adapter design enables flexible integration into existing systems, even retroactively.

The test standards include IEC 61643-21 / EN 61643-21, and approvals include UL 497B. The protection rating is IP 10, meaning the device is not protected against mechanical impacts or environmental conditions and is intended for use in enclosed enclosures. The arrester class is U, indicating universal application. The total nominal discharge current is 10 kA (8/20 µs), with individual values for wire-to-wire, wire-to-earth, and Pa-Pa (PoE) being 1.25 kA, 2.5 kA, and 2.5 kA respectively. The lightning impulse current (10/350 µs) per wire is 0.5 kA. The protection levels are designed to protect connected devices from damage without impairing data transmission.

Technical data
SPD classU
Max. continuous operating voltage (d.c.) (Uc)48 V
Max. continuous operating voltage (d.c.) pair-pair (PoE) (Uc)57 V
Nominal current (IN)1 A
D1 Lightning impulse current (10/350 µs) per line (Iimp)0.5 kA
C2 Total nominal discharge current (8/20 µs) (In)10 kA
Cut-off frequency (fG)100 MHz
Connection (input / output)RJ45 socket / RJ45 socket
ApprovalsUL 497B


Product data sheet
Datasheet for DEHN 929126, EAN: 4013364242258

Questions & answers

What is the delivery time of DEHN 929126 DPA M CLD RJ45B 48 surge protector patch 2 RJ45 sockets?

The article DEHN 929126 DPA M CLD RJ45B 48 surge protector patch 2 RJ45 sockets is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 929126 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 929126 DPA M CLD RJ45B 48 surge protector patch 2 RJ45 sockets always at the best possible price. We can give you a discount of 2% on DEHN 929126 DPA M CLD RJ45B 48 surge protector patch 2 RJ45 sockets if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of DEHN 929126 DPA M CLD RJ45B 48 surge protector patch 2 RJ45 sockets we can offer you a price of 87,87 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
