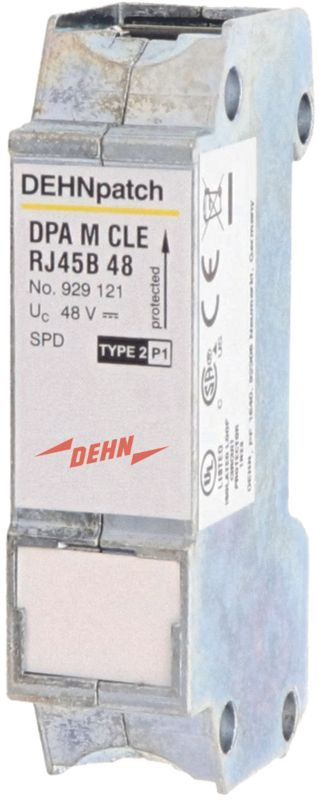

DEHN 929121 DPAMCLERJ45B48 surge protector patch

Your rating:
Average rating
product review for DEHN 929121 DPAMCLERJ45B48 surge protector patch
( 4.7 / 5 ) 15 ratings

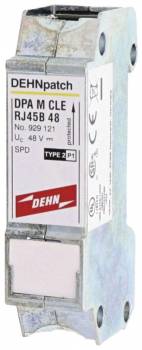

DEHN 929121
This image may differ from the desired article.
DEHN 929121DEHN 929121DEHN 929121
193,99 EUR 196,32 EUR
( 230,85 EUR incl. VAT )
≈ £161.59  |  ≈ $212.81
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x DEHN 929121 DPAMCLERJ45B48 surge protector patch
Datasheet:file_download Download
Lieske Part No.:970458
Mfg Part No: 929121
UPC/EAN: 4013364118935
Weight:0.109 kg
Type:DPA M CLE RJ45B 48
Graduated prices net
From piecesPrice per pieces
5182,35 EUR
10170,71 EUR
15159,07 EUR
20147,43 EUR

Product information for DEHN 929121:

The DEHN surge protector DPA M CLE RJ45B 48 (manufacturer number 929121) is a universal surge arrester for use in structured cabling in industrial environments. It is specifically designed for applications in the field of Industrial Ethernet and Power over Ethernet (PoE), supporting PoE technology according to IEEE 802.3 up to the PoE++ / 4PPoE standard. The arrester protects data transmission in networks designed for Class E up to 250 MHz, ensuring signal integrity while simultaneously providing power supply via the network cable. The fully shielded adapter version with sockets enables secure mounting on DIN rails, making it suitable for use in enclosures and industrial control systems.

Applications
This arrester is intended for use in industrial networks, particularly in environments with increased surge risk, such as production facilities, automation systems, or manufacturing technology. It protects data lines from transient overvoltages caused by lightning strikes, electrical disturbances, or switching operations. Support for PoE++ / 4PPoE also makes it suitable for applications requiring high power demands, for example, IP cameras, industrial sensors, or network switches powered via the network cable.

Functions and Equipment in Detail
The arrester protects all wire pairs of the RJ45 connector using powerful gas discharge tubes. Each wire pair is additionally protected by a matched filter matrix that reduces electromagnetic interference and high-frequency disturbances. This combination of gas discharge tubes and filter matrices ensures efficient protection of data transmission and power supply. The fully shielded design minimizes the influence of external electromagnetic fields and prevents interference that could impair signal quality.

Technology Explained Simply
Gas discharge tubes (GDT) respond to overvoltages by becoming conductive when a certain voltage threshold is reached, diverting excess energy to ground. This protects connected devices from damage. The filter matrices suppress high-frequency interference generated by electrical devices or other sources in the network. The combination of both technologies provides comprehensive protection, securing both data transmission and power supply over the network cable. The shielding of the adapter version prevents external electromagnetic interference from affecting the lines.

Compatibility and Accessories
The arrester is designed for structured cabling according to Class E up to 250 MHz, making it suitable for modern Ethernet networks with high data rates. It is compatible with PoE systems according to IEEE 802.3, including the PoE++ / 4PPoE standardization, which enables higher power supply over the network cable. The sockets for DIN rail mounting allow for easy and secure installation in standard enclosures.

Mounting and Installation
Mounting is done via the integrated sockets designed for DIN rail attachment. This enables quick and secure installation in enclosures or distribution boxes. The fully shielded construction requires no additional shielding measures, as shielding is already integrated into the device. Installation is performed directly into the network cable connection, with the RJ45 socket serving as the connection point for the network device.

Operational Advantages
The arrester provides reliable protection for data and power lines in industrial networks. The combination of gas discharge tubes and filter matrices ensures high efficiency in suppressing overvoltages and electromagnetic interference. DIN rail mounting enables flexible and standardized installation, easily integrating into existing enclosure configurations. Support for PoE++ / 4PPoE expands the application range to devices with high power demands, without requiring additional power supply cables.

General
Degree of protectionFully shielded adapter version
Application areaIndustrial Ethernet, Power over Ethernet (PoE) up to PoE++ / 4PPoE
Wiring classClass E
Frequency rangeup to 250 MHz
Protection technologygas discharge arrester and filter matrix per wire pair
Mounting methodDIN rail mounting
CompatibilityIEEE 802.3 compliant up to PoE++ / 4PPoE
Technical data
SPD classT
Max. continuous operating voltage (d.c.) (Uc)48 V
Max. continuous operating voltage (d.c.) pair-pair (PoE) (Uc)57 V
Nominal current (IN)1 A
D1 Lightning impulse current (10/350 µs) per line (Iimp)0.5 kA
C2 Total nominal discharge current (8/20 µs) (In)10 kA
Cut-off frequency (fG)250 MHz
Connection (input / output)RJ45 socket / RJ45 socket
ApprovalsCSA, UL 497B


Product data sheet
Datasheet for DEHN 929121, EAN: 4013364118935
