DEHN 927942 BCO CL2 BD 12 Compact combination surge arrester for 1 twin cable

Your rating:
Average rating
product review for DEHN 927942 BCO CL2 BD 12 Compact combination surge arrester for 1 twin cable
( 4.7 / 5 ) 3 ratings

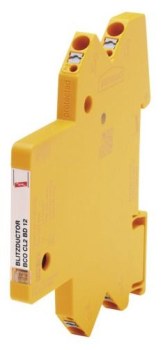

DEHN 927942
This image may differ from the desired article.
DEHN 927942DEHN 927942DEHN 927942
111,72 EUR 113,06 EUR
( 132,95 EUR incl. VAT )
≈ £93.51  |  ≈ $122.78
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 927942 BCO CL2 BD 12 Compact combination surge arrester for 1 twin cable
Datasheet:file_download Download
Lieske Part No.:2061107
Mfg Part No: 927942
UPC/EAN: 4013364411777
Weight:0.033 kg
Type:BCO CL2 BD 12
Graduated prices net
From piecesPrice per pieces
5105,02 EUR
1098,31 EUR
1591,61 EUR
2084,91 EUR

Product information for DEHN 927942:

Space-saving, compact combined surge arrester with a width of 6 mm and push-in connection technology with status indicator for protecting 1 double wire of unearthed symmetrical interfaces.

Extended technical data
Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (Imax)20 kA
Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]10 kA (10x)
Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP)≤ 600 V
Technical data
SPD classL
Impulse categoryD1, C1, C2, C3, B2
Nominal voltage (UN)12 V
Max. continuous operating voltage DC (UC)15 V
Max. continuous operating a.c. voltage (UC)10.6 V
Nominal current at 70 °C (IL)0.75 A
D1 Total lightning impulse current (10/350 µs) (Iimp)3 kA
D1 Lightning impulse current (10/350 µs) per line (Iimp)1.5 kA
C2 Total nominal discharge current (8/20 µs) (In)10 kA
C2 Nominal discharge current (8/20 µs) per line (In)5 kA
Voltage protection level line-line for In C2 (UP)≤ 32 V
Voltage protection level line-PG for In C2 (UP)≤ 600 V
Voltage protection level line-line for In C1 (UP)≤ 32 V
Voltage protection level line-PG for In C1 (UP)≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (UP)≤ 20 V
Voltage protection level line-PG at 1 kV/µs C3 (Up)≤ 600 V
Series resistance per line1 Ohm
Cut-off frequency line-line (fG)2.6 MHz
Capacitance line-line (C)≤ 2.5 nF
Capacitance line-PG (C)≤ 16 pF
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Degree of protectionIP 20
For mounting on35 mm DIN rails acc. to EN 60715
Connection (input / output)push-in / push-in
Cross-sectional area, solid0.2-2.5 mm2
Cross-sectional area, flexible0.2-2.5 mm2
Earthing via35 mm DIN rails acc. to EN 60715
Enclosure materialpolyamide PA 6.6
Colouryellow
Test standardsIEC 61643-21 / EN 61643-21
ApprovalsUL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classificationup to SIL3 *)
ATEX approvalsTÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvalsIECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory CertificationCCC no. 2021312304001192
Test values according to UL 497b
Type (SPD classification)BCO CL2 BD 12
Strike voltage Line to Ground 100 V/s min.16,7 V
Strike voltage Line to Ground 100 V/s max.18,5 V
Strike voltage Line to Line 100 V/s min.72 V
Strike voltage Line to Line 100 V/s max.108 V


Product data sheet
Datasheet for DEHN 927942, EAN: 4013364411777

Questions & answers

What is the delivery time of DEHN 927942 BCO CL2 BD 12 Compact combination surge arrester for 1 twin cable?

The article DEHN 927942 BCO CL2 BD 12 Compact combination surge arrester for 1 twin cable is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927942 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 927942 BCO CL2 BD 12 Compact combination surge arrester for 1 twin cable always at the best possible price. We can give you a discount of 2% on DEHN 927942 BCO CL2 BD 12 Compact combination surge arrester for 1 twin cable if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 927942 BCO CL2 BD 12 Compact combination surge arrester for 1 twin cable we can offer you a price of 105,02 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
