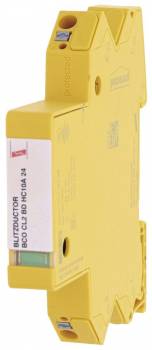

DEHN 927408 BCO CL2 BD HC10A 24 compact combination surge arrester
|
196,56 EUR 198,89 EUR |
|||||||||||
|
( 233,91 EUR incl. VAT ) ≈ £164.52 | ≈ $216.02 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2061812 | ||||||||||
| Mfg Part No: | 927408 | ||||||||||
| UPC/EAN: | 4013364463653 | ||||||||||
| Weight: | 0.052 kg | ||||||||||
| Type: | BCO CL2 BD HC10A 24 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 927408:
| Technical data | |
| SPD class | L |
| Impulse category | D1, C1, C2, C3, B2 |
| Nominal voltage (UN) | 24 V |
| Max. continuous operating voltage DC (UC) | 45 V |
| Max. continuous operating a.c. voltage (UC) | 31.8 V |
| Nominal current at 80°C (IL) | 10 A |
| D1 Total lightning impulse current (10/350 µs) (Iimp) | 5 kA |
| D1 Lightning impulse current (10/350 µs) per line (Iimp) | 2.5 kA |
| C2 Total nominal discharge current (8/20 µs) (In) | 20 kA |
| C2 Nominal discharge current (8/20 µs) per line (In) | 10 kA |
| Voltage protection level line-line for In 1 kA C2 (UP) | ≤ 100 V |
| Voltage protection level line-PG for In C2 (UP) | ≤ 800 V |
| Voltage protection level line-PG at 1 kV/µs C3 (Up) | ≤ 800 V |
| Series resistance per line | 0 Ohm |
| Cut-off frequency line-line at 100 ohms (fG) | 2 MHz |
| Capacitance line-line (C) | ≤ 1.37 nF |
| Capacitance line-PG (C) | ≤ 13.06 pF |
| Operating temperature range (TU) | -40°C to +80°C |
| Operating state / fault indication | green / red |
| Degree of protection | IP 20 |
| Connection (input / output) | Push-in / Push-in |
| Cross-sectional area, solid | 0.2-2.5 mm2 |
| Cross-sectional area, flexible | 0.2-2.5 mm2 |
| Earthing via | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | Polyamide PA 6.6, UL 94 V-0 |
| Colour | yellow |
| Test standards | IEC 61643-21 / EN 61643-21 |
| Approvals | UL 497B, SIL |
| SIL classification | up to SIL3 *) |
| Test values according to UL 497b | |
| Type (SPD classification) | BCO CL2 BD HC10A |
| Strike voltage Line to Ground 100 V/s min. | 53.4 V |
| Strike voltage Line to Ground 100 V/s max. | 59 V |
| Strike voltage Line to Line 100 V/s max. | 108 V |
Questions & answers
What is the delivery time of DEHN 927408 BCO CL2 BD HC10A 24 compact combination surge arrester?
The article DEHN 927408 BCO CL2 BD HC10A 24 compact combination surge arrester is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927408 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 927408 BCO CL2 BD HC10A 24 compact combination surge arrester always at the best possible price. We can give you a discount of 2% on DEHN 927408 BCO CL2 BD HC10A 24 compact combination surge arrester if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 927408 BCO CL2 BD HC10A 24 compact combination surge arrester we can offer you a price of 184,77 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
