DEHN 927284 BCO ML2 BD EX 24 Modular surge arrester for 1 twin cable

Your rating:
Average rating
product review for DEHN 927284 BCO ML2 BD EX 24 Modular surge arrester for 1 twin cable
( 5 / 5 ) 2 ratings

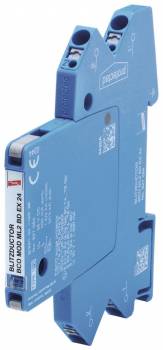

DEHN 927284
This image may differ from the desired article.
DEHN 927284DEHN 927284DEHN 927284
182,97 EUR 185,13 EUR
( 217,73 EUR incl. VAT )
≈ £153.15  |  ≈ $201.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 927284 BCO ML2 BD EX 24 Modular surge arrester for 1 twin cable
Datasheet:file_download Download
Lieske Part No.:1910390
Mfg Part No: 927284
UPC/EAN: 4013364405677
Weight:0.035 kg
Type:BCO ML2 BD EX 24
Graduated prices net
From piecesPrice per pieces
5171,99 EUR
10161,01 EUR
15150,04 EUR
20139,06 EUR

Product information for DEHN 927284:

Space-saving, modular surge arrester with a width of 6 mm and push-in connection technology with status display for protecting 1 double wire of intrinsically safe measuring circuits and bus systems. Meets FISCO requirements. Insulation strength >500 V wire-earth. With signal separation for maintenance purposes.

Extended technical data
Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (Imax)20 kA
Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]10 kA (10x)
Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP)≤ 1000 V
Technical data
SPD classL
Impulse categoryD1, C1, C2, C3, B2
Nominal voltage (UN)24 V
Max. continuous operating voltage DC (UC)36 V
Max. continuous operating a.c. voltage (UC)25.4 V
Nominal current at 80°C (IL)0.5 A
D1 Total lightning impulse current (10/350 µs) (Iimp)3 kA
D1 Lightning impulse current (10/350 µs) per line (Iimp)1.5 kA
C2 Total nominal discharge current (8/20 µs) (In)10 kA
C2 Nominal discharge current (8/20 µs) per line (In)5 kA
Voltage protection level line-line for In C2 (UP)≤ 65 V
Voltage protection level line-PG for In C2 (UP)≤ 1100 V
Voltage protection level line-line at 1 kV/µs C3 (UP)≤ 48 V
Voltage protection level line-PG at 1 kV/µs C3 (Up)≤ 1000 V
Series resistance per line1 Ohm
Cut-off frequency line-line (fG)3.5 MHz
Capacitance line-line (C)≤ 2 nF
Capacitance line-PG (C)≤ 15 pF
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Degree of protectionIP 20
Connection (input / output)push-in / push-in
Cross-sectional area, solid0.08-2.5 mm2
Cross-sectional area, flexible0.08-2.5 mm2
Earthing via35 mm DIN rails acc. to EN 60715
Enclosure materialpolyamide PA 6.6
Colourblue
Test standardsIEC 61643-21 / EN 61643-21
ApprovalsATEX, IECEx, CCC, SIL
SIL classificationup to SIL3 *)
ATEX approvals (1)TÜV 19 ATEX 8476 X: II (1)2 G Ex ia [ia Ga] IIC T4 ... T6 Gb
ATEX approvals (2)TÜV 19 ATEX 8476 X: II 2 G Ex ib IIC T4 ... T6 Gb
ATEX approvals (3)TÜV 19 ATEX 8476 X:II (1) D [Ex ia Da] IIIC
IECEx approvals (1) ( )IECEx TUR 20.0025X: Ex ia [ia Ga] IIC T4 ... T6 Gb
IECEx approvals (2)IECEx TUR 20.0025X: Ex ib IIC T4 ... T6 Gb
IECEx approvals (3) ( )IECEx TUR 20.0025X: [Ex ia Da] IIIC
China Compulsory CertificationCCC No. 2021312304001130 (Ex ia, Ex ib)


Product data sheet
Datasheet for DEHN 927284, EAN: 4013364405677

Questions & answers

What is the delivery time of DEHN 927284 BCO ML2 BD EX 24 Modular surge arrester for 1 twin cable?

The article DEHN 927284 BCO ML2 BD EX 24 Modular surge arrester for 1 twin cable is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927284 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 927284 BCO ML2 BD EX 24 Modular surge arrester for 1 twin cable always at the best possible price. We can give you a discount of 2% on DEHN 927284 BCO ML2 BD EX 24 Modular surge arrester for 1 twin cable if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 927284 BCO ML2 BD EX 24 Modular surge arrester for 1 twin cable we can offer you a price of 171,99 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
