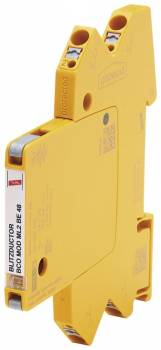

DEHN 927225 BCO ML2 BE 48 Modular combination surge arrester for 2 individual conductors
|
174,61 EUR 176,62 EUR |
|||||||||||
|
( 207,79 EUR incl. VAT ) ≈ £146.15 | ≈ $191.90 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1910387 | ||||||||||
| Mfg Part No: | 927225 | ||||||||||
| UPC/EAN: | 4013364405615 | ||||||||||
| Weight: | 0.034 kg | ||||||||||
| Type: | BCO ML2 BE 48 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 927225:
| Extended technical data | |
| Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (Imax) | 20 kA |
| Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] | 10 kA (10x) |
| Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP) | ≤ 68 V |
| Standards | |
| Certification | UL |
| UL Standard | UL 497b |
| UL File Number | E156818 |
| Technical data | |
| SPD class | M |
| Impulse category | D1, C1, C2, C3, B2 |
| Nominal voltage (UN) | 48 V |
| Max. continuous operating voltage DC (UC) | 54 V |
| Max. continuous operating a.c. voltage (UC) | 38.1 V |
| Nominal current at 70 °C (IL) | 0.75 A |
| D1 Total lightning impulse current (10/350 µs) (Iimp) | 3 kA |
| D1 Lightning impulse current (10/350 µs) per line (Iimp) | 1.5 kA |
| C2 Total nominal discharge current (8/20 µs) (In) | 10 kA |
| C2 Nominal discharge current (8/20 µs) per line (In) | 5 kA |
| Voltage protection level line-line for In C2 (UP) | ≤ 140 V |
| Voltage protection level line-PG for In C2 (UP) | ≤ 90 V |
| Voltage protection level line-line for In C1 (UP) | ≤ 140 V |
| Voltage protection level line-PG for In C1 (UP) | ≤ 90 V |
| Voltage protection level line-line at 1 kV/µs C3 (UP) | ≤ 130 V |
| Voltage protection level line-PG at 1 kV/µs C3 (Up) | ≤ 68 V |
| Series resistance per line | 1 Ohm |
| Cut-off frequency line-line (fG) | 5 MHz |
| Capacitance line-line (C) | ≤ 1 nF |
| Capacitance line-PG (C) | ≤ 1.5 nF |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Degree of protection | IP 20 |
| Connection (input / output) | push-in / push-in |
| Cross-sectional area, solid | 0.2-2.5 mm2 |
| Cross-sectional area, flexible | 0.2-2.5 mm2 |
| Earthing via | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | polyamide PA 6.6 |
| Colour | yellow |
| Test standards | IEC 61643-21 / EN 61643-21 |
| Approvals | UL 497B, CSA, ATEX, IECEx, CCC, SIL |
| SIL classification | up to SIL3 *) |
| ATEX approvals | TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc |
| IECEx approvals | IECEx TUR 20.0063X: Ex ec IIC T4 Gc |
| China Compulsory Certification | CCC no. 2021312304001192 |
| Test values according to UL 497b | |
| Type (SPD classification) | BCO ML2 BE 48 |
| Strike voltage Line to Ground 100 V/s min. | 120 V |
| Strike voltage Line to Ground 100 V/s max. | 132,6 V |
| Strike voltage Line to Line 100 V/s min. | 60 V |
| Strike voltage Line to Line 100 V/s max. | 66,3 V |
Questions & answers
What is the delivery time of DEHN 927225 BCO ML2 BE 48 Modular combination surge arrester for 2 individual conductors?
The article DEHN 927225 BCO ML2 BE 48 Modular combination surge arrester for 2 individual conductors is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927225 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 927225 BCO ML2 BE 48 Modular combination surge arrester for 2 individual conductors always at the best possible price. We can give you a discount of 2% on DEHN 927225 BCO ML2 BE 48 Modular combination surge arrester for 2 individual conductors if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 927225 BCO ML2 BE 48 Modular combination surge arrester for 2 individual conductors we can offer you a price of 164,13 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
