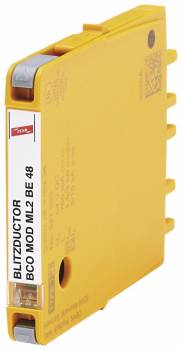

DEHN 927025 BCO MOD ML2 BE 48 combination surge arrester protection module for 2
|
112,67 EUR 113,95 EUR |
|||||||||||
|
( 134,08 EUR incl. VAT ) ≈ £94.30 | ≈ $123.82 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2061111 | ||||||||||
| Mfg Part No: | 927025 | ||||||||||
| UPC/EAN: | 4013364410145 | ||||||||||
| Weight: | 0.014 kg | ||||||||||
| Type: | BCO MOD ML2 BE 48 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 927025:
| Extended technical data | |
| Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (Imax) | 20 kA |
| Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] | 10 kA (10x) |
| Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP) | ≤ 68 V |
| Technical data | |
| SPD class | M |
| Impulse category | D1, C1, C2, C3, B2 |
| Nominal voltage (UN) | 48 V |
| Max. continuous operating voltage DC (UC) | 54 V |
| Max. continuous operating a.c. voltage (UC) | 38.1 V |
| Nominal current at 70 °C (IL) | 0.75 A |
| D1 Total lightning impulse current (10/350 µs) (Iimp) | 3 kA |
| D1 Lightning impulse current (10/350 µs) per line (Iimp) | 1.5 kA |
| C2 Total nominal discharge current (8/20 µs) (In) | 10 kA |
| C2 Nominal discharge current (8/20 µs) per line (In) | 5 kA |
| Voltage protection level line-line for In C2 (UP) | ≤ 140 V |
| Voltage protection level line-PG for In C2 (UP) | ≤ 90 V |
| Voltage protection level line-line for In C1 (UP) | ≤ 140 V |
| Voltage protection level line-PG for In C1 (UP) | ≤ 90 V |
| Voltage protection level line-line at 1 kV/µs C3 (UP) | ≤ 130 V |
| Voltage protection level line-PG at 1 kV/µs C3 (Up) | ≤ 68 V |
| Series resistance per line | 1 Ohm |
| Cut-off frequency line-line (fG) | 5 MHz |
| Capacitance line-line (C) | ≤ 1 nF |
| Capacitance line-PG (C) | ≤ 1.5 nF |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Degree of protection (with plugged-in protection module) | IP 20 |
| Pluggable into | BCO base part |
| Earthing via | BCO base part |
| Enclosure material | polyamide PA 6.6 |
| Colour | yellow |
| Test standards | IEC 61643-21 / EN 61643-21 |
| Approvals | UL 497B, CSA, ATEX, IECEx, CCC, SIL |
| SIL classification | up to SIL3 *) |
| ATEX approvals | TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc |
| IECEx approvals | IECEx TUR 20.0063X: Ex ec IIC T4 Gc |
| China Compulsory Certification | CCC no. 2021312304001192 |
Questions & answers
What is the delivery time of DEHN 927025 BCO MOD ML2 BE 48 combination surge arrester protection module for 2?
The article DEHN 927025 BCO MOD ML2 BE 48 combination surge arrester protection module for 2 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927025 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 927025 BCO MOD ML2 BE 48 combination surge arrester protection module for 2 always at the best possible price. We can give you a discount of 2% on DEHN 927025 BCO MOD ML2 BE 48 combination surge arrester protection module for 2 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 927025 BCO MOD ML2 BE 48 combination surge arrester protection module for 2 we can offer you a price of 105,91 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
