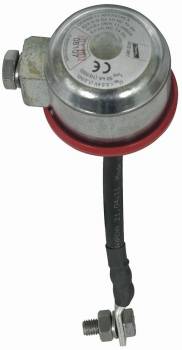

DEHN 923061 EXFS L200 spark gap for Ex area with cable Cu 25qmm 200mm
|
313,31 EUR 317,00 EUR |
|||||||||||
|
( 372,84 EUR incl. VAT ) ≈ £262.24 | ≈ $344.33 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 827823 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 923061 | ||||||||||
| UPC/EAN: | 4013364038905 | ||||||||||
| Weight: | 0.83 kg | ||||||||||
| Type: | EXFS L200 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 923061:
| General | |
| Application range | Ex zone 2 (gases) |
| Lightning impulse current (10/350 µs) | 50 kA |
| Nominal surge current (8/20 µs) | 100 kA |
| Rated power-frequency withstand voltage | 300 V |
| 100% lightning surge response voltage | ≤ 2,5 kV |
| Rated impulse sparkover voltage | 2,5 kV |
| Triggering alternating voltage (50 Hz) | ≤ 1,2 kV |
| Degree of protection | IP54 |
| Operation temperature | -20 °C to +80 °C |
| Approval / certification | ZELM 03 ATEX 3192X |
| Classification of surge current capacity according to EN 50164-3 | N |
| Length housing | 90 mm |
| Diameter housing | 63 mm |
| Connection cable | H01N2-D 25 mm² with cable lug and screw/nut (M10) |
| Cable length | 200 mm |
| Suitable for flange size | 120–230 mm |
| Connection | Flange |
| Connection material | Stainless steel 304 (V2A) |
| Housing material | Zinc die-cast, plastic |
Questions & answers
What is the delivery time of DEHN 923061 EXFS L200 spark gap for Ex area with cable Cu 25qmm 200mm?
The article DEHN 923061 EXFS L200 spark gap for Ex area with cable Cu 25qmm 200mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 923061 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 923061 EXFS L200 spark gap for Ex area with cable Cu 25qmm 200mm always at the best possible price. We can give you a discount of 2% on DEHN 923061 EXFS L200 spark gap for Ex area with cable Cu 25qmm 200mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of DEHN 923061 EXFS L200 spark gap for Ex area with cable Cu 25qmm 200mm we can offer you a price of 294,51 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
