DEHN 920384 BXT ML4 BC EX 24 combination branch module 4 single conductors BLITZDUCTOR XT LC

Your rating:
Average rating
product review for DEHN 920384 BXT ML4 BC EX 24 combination branch module 4 single conductors BLITZDUCTOR XT LC
( 4.4 / 5 ) 7 ratings

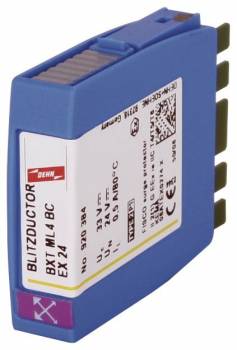

DEHN 920384
This image may differ from the desired article.
DEHN 920384DEHN 920384DEHN 920384DEHN 920384
300,58 EUR 304,13 EUR
( 357,69 EUR incl. VAT )
≈ £251.59  |  ≈ $330.34
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 920384 BXT ML4 BC EX 24 combination branch module 4 single conductors BLITZDUCTOR XT LC
Datasheet:file_download Download
Lieske Part No.:1314160
Mfg Part No: 920384
UPC/EAN: 4013364109162
Weight:0.022 kg
Type:BXT ML4 BC EX 24
Graduated prices net
From piecesPrice per pieces
4282,55 EUR
8264,51 EUR
12246,48 EUR
16228,44 EUR

Product information for DEHN 920384:

Space-saving surge arrester module with LifeCheck for protecting up to four single earth-potential-free wires with a common reference potential of intrinsically safe measuring circuits, meets the requirements of FISCO. ATEX. Insulation strength > 500 V wire-earth. LifeCheck detects thermal or electrical overload conditions after which the arrester must be replaced. The indication is contactless using DEHNrecord LC / SCM / MCM.

General
SPD classT
SPD monitoring systemLifeCheck
Nominal voltage (UN)24 V
Max. continuous operating voltage (d.c.) (Uc)33 V
Max. continuous operating voltage (a.c.) (Uc)23.3 V
Max. input voltage acc. to EN 60079-11 (Ui)30 V
Max. input current according to EN 60079-11 (Ii)0.5 A
D1 Total lightning impulse current (10/350 µs) (Iimp)4 kA
D1 Lightning impulse current (10/350 µs) per line (Iimp)1 kA
C2 Total nominal discharge current (8/20 µs) (In)20 kA
C2 Nominal discharge current (8/20 µs) per line (In)5 kA
Voltage protection level line-line for Iimp D1 (UP)≤ 53 V
Voltage protection level line-PG for Iimp D1 (UP)≤ 1300 V
Voltage protection level line-line for In C2 (UP)≤ 55 V
Voltage protection level line-PG for In C2 (UP)≤ 1400 V
Voltage protection level line-line at 1 kV/µs C3 (UP)≤ 45 V
Voltage protection level line-PG at 1 kV/µs C3 (Up)≤ 1100 V
Series resistance per line1 Ohm
Cut-off frequency line-line (fG)6.4 MHz
Capacitance line-line (C)≤ 0.8 nF
Capacitance line-PG (C)≤ 16 pF
Operating temperature range (TU)-40 °C ... +80 °C
Degree of protection (with plugged-in protection module)IP 20
Pluggable intobase part
Earthing viabase part
Enclosure materialpolyamide PA 6.6
Colourblue
Test standardsIEC 61643-21 / EN 61643-21
Approvals *)CSA, ATEX, IECEx, CCC, CSA & USA Hazloc, SIL, Inmetro, UKCA
SIL classificationup to SIL3 *)
ATEX approvals (1)KEMA 06ATEX0274 X: II 2 (1) G Ex ia [ia Ga] IIC T6 ... T4 Gb
ATEX approvals (2)KEMA 06ATEX0274 X: II 2 G Ex ib IIC T6 ... T4 Gb
IECEx approvals (1) ( )DEK 11.0078X: Ex ia [ia Ga] IIC T6 ... T4 Gb
IECEx approvals (2)DEK 11.0078X: Ex ib IIC T6 ... T4 Gb
CSA & USA Hazloc approvals (1)70000011: Class I Div. 1; Class I Zone 1
CSA & USA Hazloc approvals (2)70000011: Ex ia [ia] IIC T6 ... T4
China Compulsory CertificationCCC No. 2021312304001156
Inmetro approvalsTÜV 17.0697 X: Ex ia [ia Ga] IIC T6 ... T4 Gb


Product data sheet
Datasheet for DEHN 920384, EAN: 4013364109162

Questions & answers

What is the delivery time of DEHN 920384 BXT ML4 BC EX 24 combination branch module 4 single conductors BLITZDUCTOR XT LC?

The article DEHN 920384 BXT ML4 BC EX 24 combination branch module 4 single conductors BLITZDUCTOR XT LC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 920384 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 920384 BXT ML4 BC EX 24 combination branch module 4 single conductors BLITZDUCTOR XT LC always at the best possible price. We can give you a discount of 2% on DEHN 920384 BXT ML4 BC EX 24 combination branch module 4 single conductors BLITZDUCTOR XT LC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of DEHN 920384 BXT ML4 BC EX 24 combination branch module 4 single conductors BLITZDUCTOR XT LC we can offer you a price of 282,55 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
