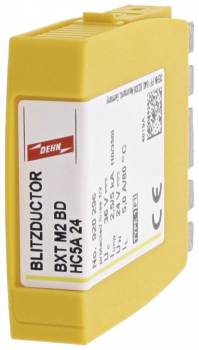

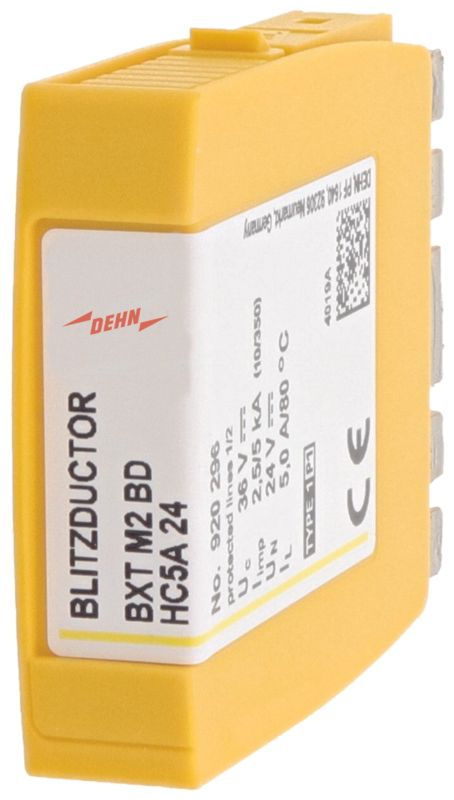

DEHN 920296 BXT M2 BD HC5A 24 combination module for 1 twin cable

Your rating:
Average rating
product review for DEHN 920296 BXT M2 BD HC5A 24 combination module for 1 twin cable
( 4.7 / 5 ) 11 ratings
DEHN 920296
This image may differ from the desired article.
DEHN 920296DEHN 920296DEHN 920296
81,03 EUR 81,97 EUR
( 96,43 EUR incl. VAT )
≈ £67.50  |  ≈ $88.89
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 920296 BXT M2 BD HC5A 24 combination module for 1 twin cable
Datasheet:file_download Download
Lieske Part No.:1424888
Mfg Part No: 920296
UPC/EAN: 4013364340015
Weight:0.021 kg
Type:BXT M2 BD HC5A 24
Graduated prices net
From piecesPrice per pieces
676,17 EUR
1271,31 EUR
2466,44 EUR
3661,58 EUR

Product information for DEHN 920296:

The DEHN combination surge arrester module type BXT M2 BD HC5A 24 is a space-saving protective element for earth potential-free, symmetrical interfaces. It is designed to protect a single twin cable against overvoltages caused by electrical disturbances or transients. The module is specifically designed for use in control systems for motor-driven actuators, where starting and operating currents up to 5 A occur. The construction allows for compact mounting in enclosures and reduces space requirements compared to separate arresters.

Applications

The module is used in industrial plants where electrical signals are transmitted via symmetrical lines, for example in automation systems, building automation or process control systems. It protects sensitive electronic components from transient voltage spikes caused by lightning discharges, switching operations or electromagnetic interference. The application is particularly in systems controlling motor-driven actuators, where current strengths during starting and operation can reach up to 5 A.

Functions and equipment in detail

The combination surge arrester module integrates multiple protective functions in one housing. It protects a twin cable, which functions as a symmetrical interface, against overvoltages. The design is such that it protects the signal lines from transient voltage surges without impairing signal integrity. The module form allows for easy mounting in standard switchboards or enclosures. The adaptation to actuators with up to 5 A starting and operating current ensures reliable operation under real operating conditions.

Technology explained simply

The arrester operates on the principle of overvoltage diversion, where excess energy is diverted via a diversion resistor or varistor structure as soon as a certain voltage threshold is exceeded. The symmetrical arrangement of the twin cable enables efficient protection of both conductors against common mode and differential mode overvoltages. The module is designed for use in earth potential-free systems, meaning it does not require a direct earth connection, but instead realizes the protective function through the wiring structure itself.

Compatibility and accessories

The module is designed for use in systems with symmetrical interfaces and can be integrated in combination with other DEHN overvoltage protection modules in an enclosure. It is specifically adapted for controlling motor-driven actuators, taking into account maximum currents of 5 A. Use in other applications is possible, provided the electrical parameters (voltage, current, impedance) match the module's specifications.

Mounting and installation

Mounting is carried out in standard switchboards or enclosures. The module is inserted into the designated mounting openings and connected to the corresponding lines. Wiring is done at the designated connection terminals, with the twin cable connected to the appropriate poles. Installation requires no special tools or additional components. The mounting is designed to function without additional earth connections, as the module is designed for earth potential-free systems.

Advantages in operation

The compact design minimizes space requirements in the enclosure. The integrated protection function for a twin cable reduces the number of required individual components. Reliability under real operating conditions, especially with motor-driven actuators with starting currents up to 5 A, ensures stable operation of control systems. The simple mounting and integration into existing systems increase maintainability and reduce installation time.

General
Degree of protectionfor 1 pair cable -
Interfaceearth potential-free, symmetrical -
ApplicationControl of motor-driven actuators -
Maximum starting and operating current5 A
Technical data
SPD classM
Max. continuous operating voltage DC (UC)36 V
Nominal current (IN)5 A
D1 Total lightning impulse current (10/350 µs) (Iimp)5 kA
C2 Total nominal discharge current (8/20 µs) (In)20 kA
Series resistance per line0 Ohm
Cut-off frequency line-line (fG)1.56 MHz
ApprovalsSIL


Product data sheet
Datasheet for DEHN 920296, EAN: 4013364340015

Questions & answers

What is the delivery time of DEHN 920296 BXT M2 BD HC5A 24 combination module for 1 twin cable?

The article DEHN 920296 BXT M2 BD HC5A 24 combination module for 1 twin cable is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 920296 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 920296 BXT M2 BD HC5A 24 combination module for 1 twin cable always at the best possible price. We can give you a discount of 2% on DEHN 920296 BXT M2 BD HC5A 24 combination module for 1 twin cable if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of DEHN 920296 BXT M2 BD HC5A 24 combination module for 1 twin cable we can offer you a price of 76,17 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
