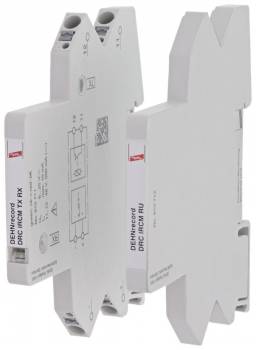

DEHN 910710 DRC IRCM Condition Monitoring Unit
|
239,59 EUR 242,45 EUR |
|||||||||||
|
( 285,11 EUR incl. VAT ) ≈ £200.54 | ≈ $263.31 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 3 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1055251 | ||||||||||
| Mfg Part No: | 910710 | ||||||||||
| UPC/EAN: | 4013364424678 | ||||||||||
| Weight: | 0.052 kg | ||||||||||
| Type: | DRC IRCM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 910710:
| General | |
| Input voltage range (d.c.) (UIN) | 6-35 V DC |
| Max. nominal current consumption (IIN) | ≤ 10 mA |
| Distance between transmitter / receiver and reverse unit | ≤ 305 mm |
| Message: Replacing of SPD recommended | LED, remote signalling contact (break contact) |
| Indicator element | two-colour LED (green, red) |
| Type of remote signalling contact | break contact (nc) |
| Technical data of remote signalling contact | contact resistance < 2.5 ohms; leakage current < 1 µA |
| Switching capacity (d.c.) | 48 V / 500 mA / Pmax 300 mW |
| Test cycle | continuous |
| Operating temperature range (TU) | -30 °C ... +70 °C |
| Degree of protection | IP 20 |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Connection (input / output) | Push-in / Push-in |
| Cross-sectional area (solid) | 0.2-2.5 mm² |
| Cross-sectional area (fine stranded) | 0.2-2.5 mm² |
| Enclosure material | polyamide PA 6.6 |
| Colour | grey |
| Test standards | EN 61010-1 |
| Approvals | UL, CSA, ATEX, IECEx, CCC |
| ATEX approvals | TÜV 20 ATEX 8480 X: II 3G Ex ec IIC T4 Gc |
| IECEx approvals | IECEx TUR 20.0071X: Ex ec IIC T4 Gc |
| China Compulsory Certification | CCC no. 2023322309005182 |
| Delivery includes | Transmitter-/receiver unit /reverse unit |
Questions & answers
What is the delivery time of DEHN 910710 DRC IRCM Condition Monitoring Unit?
The article DEHN 910710 DRC IRCM Condition Monitoring Unit is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 910710 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 910710 DRC IRCM Condition Monitoring Unit always at the best possible price. We can give you a discount of 2% on DEHN 910710 DRC IRCM Condition Monitoring Unit if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 910710 DRC IRCM Condition Monitoring Unit we can offer you a price of 225,21 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
