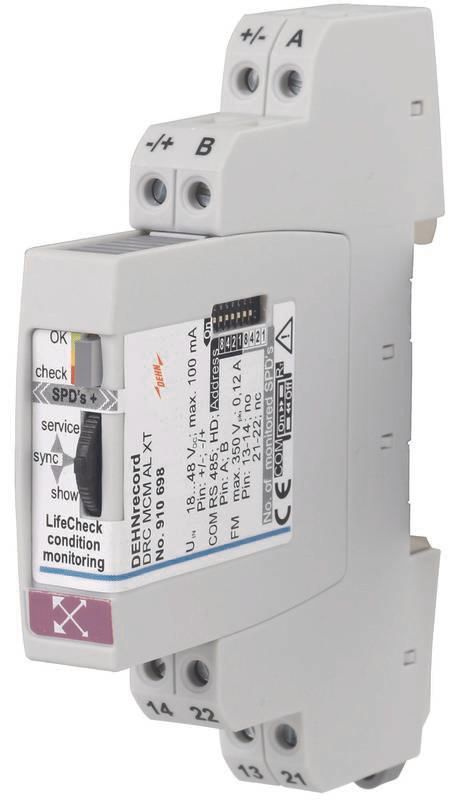

DEHN 910698 DRC MCM AL XT Condition Monitoring unit for monitoring
|
465,50 EUR 470,94 EUR |
|||||||||||
|
( 553,94 EUR incl. VAT ) ≈ £389.62 | ≈ $511.58 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 696081 | ||||||||||
| Mfg Part No: | 910698 | ||||||||||
| UPC/EAN: | 4013364337053 | ||||||||||
| Weight: | 0.067 kg | ||||||||||
| Type: | DRC MCM AL XT | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 910698:
| General | |
| For testing | bis zu 10 BLITZDUCTOR XT/XTU ML, bis zu 10 BLITZDUCTOR XT/XTU ML EX nur in nicht-explosionsfähiger Atmosphäre! Fadenmaß einhalten! |
| Operating elements | multiway button, DIP switch |
| Indicator element | three-coloured LED (green, orange, red) |
| Input voltage range DC (UIN) | 18-48 V |
| Max. nominal current consumption (IIN) | 100 mA |
| RFID transmission frequency | 125 kHz |
| Physical interface | RS485 |
| Message: Replacing of SPD recommended | LED, remote signalling contact (break and make contact) |
| Test cycle | continuous |
| Operating temperature range for monitoring 10 BXT / BXTU arresters | -20 °C ... +60 °C |
| Operating temperature range for monitoring 8 BXT / BXTU arresters | -40 °C ... +80 °C |
| Operating temperature range for addressing the BXT of 10 BXT / BXTU | 0 °C ... +60 °C |
| Degree of protection | IP 20 |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Connection | screw |
| Cross-sectional area, solid / flexible | 0.08-2.5 mm2 |
| Tightening torque (terminal) | 0.4 Nm |
| Enclosure material | polyamide PA 6.6 |
| Colour | grey |
| Test standards | EN 61010-1, 61000-6-2/4, ETSI EN 300 330-1 V1.7.1 |
| Type of remote signalling contact | make (no) and break contact (nc) |
| Technical data of remote signalling contact | contact resistance < 25 ohms; leakage current < 1 µA |
| Switching capacity (d.c.) | 350 V / 0.12 A |
| Switching capacity (a.c.) | 250 V / 0.07 A |
| Delivery includes | base part, monitoring module, quick guide and labelling system |
Questions & answers
What is the delivery time of DEHN 910698 DRC MCM AL XT Condition Monitoring unit for monitoring?
The article DEHN 910698 DRC MCM AL XT Condition Monitoring unit for monitoring is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 910698 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 910698 DRC MCM AL XT Condition Monitoring unit for monitoring always at the best possible price. We can give you a discount of 2% on DEHN 910698 DRC MCM AL XT Condition Monitoring unit for monitoring if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of DEHN 910698 DRC MCM AL XT Condition Monitoring unit for monitoring we can offer you a price of 437,57 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
