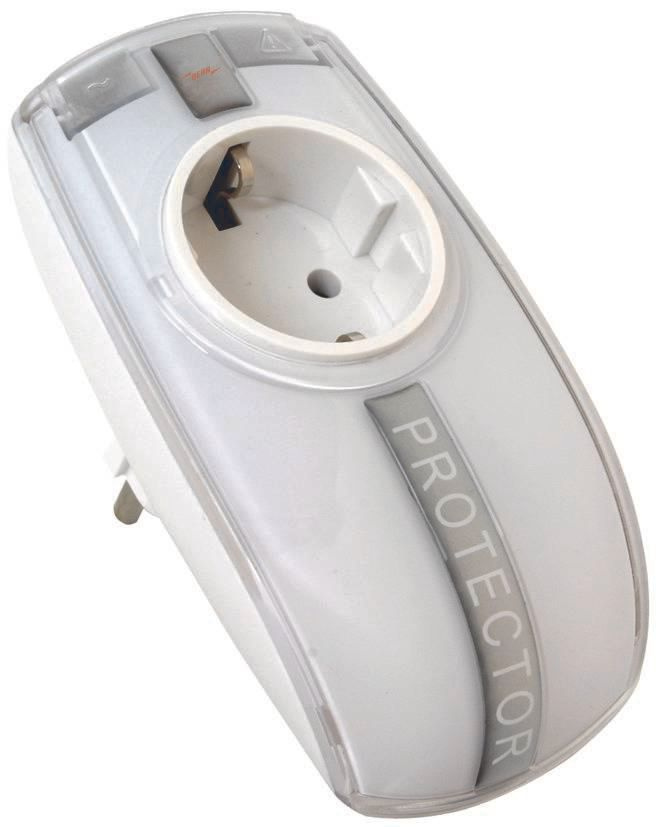

DEHN 909230 DPRO230 surge arrester Type 3 230 V AC protector

Your rating:
Average rating
product review for DEHN 909230 DPRO230 surge arrester Type 3 230 V AC protector
( 4.7 / 5 ) 28 ratings
DEHN 909230
This image may differ from the desired article.
DEHN 909230DEHN 909230DEHN 909230
96,90 EUR 98,01 EUR
( 115,31 EUR incl. VAT )
≈ £81.11  |  ≈ $106.49
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >5 pieces
1x DEHN 909230 DPRO230 surge arrester Type 3 230 V AC protector
Datasheet:file_download Download
Lieske Part No.:856039
Mfg Part No: 909230
UPC/EAN: 4013364117686
Weight:0.239 kg
Type:DPRO 230
Graduated prices net
From piecesPrice per pieces
691,09 EUR
1285,27 EUR
2479,46 EUR
3673,64 EUR

Product information for DEHN 909230:

The DEHN surge arrester DPRO 230 is a Type 3 surge protection device, specifically developed for use in the lightning protection zone concept at interfaces 1 to 2 and beyond. The device protects the power supply of electronic equipment against transient overvoltages as well as high-frequency interference voltages. It is designed as an adapter and is used in conjunction with a Schuko socket to protect connected devices from voltage spikes. The protection function is ensured by a clearly identifiable Y-protection circuit, which enables a secure and unambiguous connection between the conductors.

Applications

The DPRO 230 is designed for use in buildings where electronic devices are connected to the power supply. It is particularly used in areas where there is a high probability of overvoltages, such as near lightning protection systems or in industrial environments. The application is at interfaces 1 to 2 of the lightning protection zone concept, meaning the device is installed at the transition point between the external and internal protection zones to protect the power supply of sensitive equipment.

Functions and Equipment in Detail

The device features an integrated monitoring system that monitors the operating status of the surge protection. In the event of a failure or damage to the protective element, this is indicated by the monitoring system, allowing for quick replacement. Additionally, an isolation device is integrated, which safely disconnects the circuit in the event of a fault to prevent any hazard. The Y-protection circuit ensures that the protection function between the conductors is implemented clearly and unambiguously, increasing the reliability of the protection.

Technology Explained Simply

The DPRO 230 operates according to the standards of EN 61643-11, which apply to Type 3 surge protection devices. This standard defines the requirements for electrical and mechanical properties as well as testing procedures. The device protects against transient overvoltages caused by lightning strikes or other electrical disturbances. The integrated monitoring system enables continuous monitoring of the protective element, ensuring early detection of defects. The isolation device ensures that the circuit is safely interrupted in the event of a fault, preventing any hazard.

Compatibility and Accessories

The DPRO 230 is designed as an adapter and is used in conjunction with a Schuko socket. It is intended for use in the lightning protection zone concept at interfaces 1 to 2 and higher.

Installation and Mounting

Installation is carried out by inserting the device into a Schuko socket. The device is designed to be inserted directly into the socket, thereby activating the protection function. Mounting requires no additional tools or special preparations. Correct installation is crucial for the protection function, so compliance with regulations and standards during installation is recommended.

Advantages in Operation

The DPRO 230 offers high safety through the clearly identifiable Y-protection circuit and the integrated monitoring system. Continuous monitoring of the protective element enables early detection of defects, ensuring the availability of connected devices. The isolation device ensures safe disconnection in the event of a fault, minimizing the risk of damage or fire. The device is easy to install and requires no additional tools, simplifying maintenance and replacement.

General
Degree of protectionIP 20
NormEN 61643-11
Operating voltage230 V AC
Protection circuitryY-protection circuit
Use in lightning protection zone conceptinterfaces 1 - 2 and higher
SPD according to EN 61643-11 / IEC 61643-11type 3 / class III
Nominal voltage (a.c.) (UN)230 V (50 / 60 Hz)
Max. continuous operating voltage (AC) (UC)255 V (50 / 60 Hz)
Nominal load current (a.c.) (IL)16 A
Nominal discharge current (8/20 µs) (In)3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal)5 kA
Combination wave (UOC)6 kV
Combination wave [L+N-PE] (UOC total)10 kV
Voltage protection level [L-N] / [L/N-PE] (UP)≤ 1350 / ≤ 1500 V
Response time [L-N] (tA)≤ 25 ns
Response time [L/N-PE] (tA)≤ 100 ns
Max. mains-side overcurrent protectionB 16 A
Short-circuit withstand capability for max. mains-side overcurrent protection (ISCCR)1 kArms
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic335 V / 5 sec. – Festigkeit, 440 V / 120 min. – sicherer Ausfall
Temporary overvoltage (TOV) [L/N-PE] (UT) – Characteristic335 V / 120 min. – Festigkeit, 440 V / 5 sec. – Festigkeit
Temporary overvoltage (TOV) [L+N-PE] (UT) – Characteristic1200 V + UREF / 200 ms – safe failure
Fault indicationred light
Operating state indicationgreen light
Number of ports1
Operating temperature range (TU)-25 °C ... +40 °C
Mountingearthed socket outlets DIN 49440 / DIN 49441
Enclosure materialthermoplastic, pure white, UL 94 V-2
Place of installationindoor installation
Dimensions126 x 69 x 41 mm


Product data sheet
Datasheet for DEHN 909230, EAN: 4013364117686

Questions & answers

What is the delivery time of DEHN 909230 DPRO230 surge arrester Type 3 230 V AC protector?

The article DEHN 909230 DPRO230 surge arrester Type 3 230 V AC protector is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 909230 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 909230 DPRO230 surge arrester Type 3 230 V AC protector always at the best possible price. We can give you a discount of 2% on DEHN 909230 DPRO230 surge arrester Type 3 230 V AC protector if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of DEHN 909230 DPRO230 surge arrester Type 3 230 V AC protector we can offer you a price of 91,09 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
