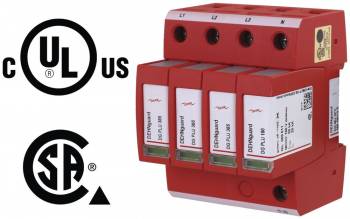

DEHN 908346 DG MU 3PY 480 4W+G R surge arrester Type 2 guard M
|
478,61 EUR 484,21 EUR |
|||||||||||
|
( 569,55 EUR incl. VAT ) ≈ £400.60 | ≈ $525.99 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1903682 | ||||||||||
| Mfg Part No: | 908346 | ||||||||||
| UPC/EAN: | 4013364148871 | ||||||||||
| Weight: | 0.458 kg | ||||||||||
| Type: | DG MU 3PY 480 4W+G R | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 908346:
| Extended technical data | |
| Max. discharge current (8/20) (Imax) | 50 kA |
| Standards | |
| Certification | UL |
| UL Standard | UL 1449 5th edition |
| UL File Number | E319777 |
| Technical data | |
| SPD as per ANSI/UL 1449 | Open-Type 1 SPD |
| SPD as per CSA-C22.2 no. 269.1 | Type 4-1 Component Assembly |
| Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV) | 385 V a.c. / 565 V a.c. / 770 V a.c. / 180 V a.c. |
| Nominal discharge current (8/20 µs) (In) | 20 kA |
| Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR) | 1200 Vpk / 1800 Vpk / 2500 Vpk / 600 Vpk |
| Max. mains-side overcurrent protection | Not needed |
| Approvals | UL, CSA |
| Type of remote signalling contact | Floating (dry), Form C (SPDT) |
| Test values according to UL 1449 | |
| Type (SPD classification) | Type 1 component assembly |
| Voltage protection rating (VPR) | 1,200 / 1,800 / 2,500 / 600 V |
| Nominal discharge current (8/20µs) ( In) | 20 kA |
| Maximum ambient temperature | 85 °C |
| AWG (conductors) | 4-14 Cu solid or stranded |
| AWG (remote indicator) | 16 - 22 Cu |
Questions & answers
What is the delivery time of DEHN 908346 DG MU 3PY 480 4W+G R surge arrester Type 2 guard M?
The article DEHN 908346 DG MU 3PY 480 4W+G R surge arrester Type 2 guard M is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 908346 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 908346 DG MU 3PY 480 4W+G R surge arrester Type 2 guard M always at the best possible price. We can give you a discount of 2% on DEHN 908346 DG MU 3PY 480 4W+G R surge arrester Type 2 guard M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of DEHN 908346 DG MU 3PY 480 4W+G R surge arrester Type 2 guard M we can offer you a price of 449,89 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
