DEHN 908094 DG SU 1P 240 R surge protector Type 2 guard S

Your rating:
Average rating
product review for DEHN 908094 DG SU 1P 240 R surge protector Type 2 guard S
( 5 / 5 ) 1 ratings
DEHN 908094
This image may differ from the desired article.
DEHN 908094DEHN 908094
133,38 EUR 134,94 EUR
( 158,72 EUR incl. VAT )
≈ £111.64  |  ≈ $146.58
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 908094 DG SU 1P 240 R surge protector Type 2 guard S
Datasheet:file_download Download
Lieske Part No.:1903678
Mfg Part No: 908094
UPC/EAN: 4013364148574
Weight:0.126 kg
Type:DG SU 1P 240 R
Graduated prices net
From piecesPrice per pieces
5125,38 EUR
10117,37 EUR
15109,37 EUR
20101,37 EUR

Product information for DEHN 908094:

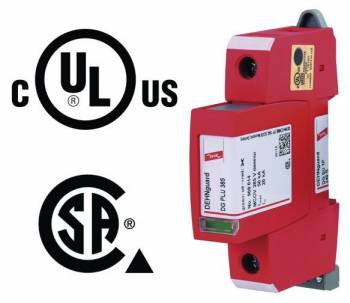

Single-pole surge arrester DEHNguard SU, Open-Type 1 SPD according to ANSI/UL 1449 consisting of a base part and plugged-in protection modules. High device safety due to arrester monitoring with thermo-dynamic control. Enables terminal device protection. For the protection of single-phase systems.

Extended technical data
Max. discharge current (8/20) (Imax)50 kA
Standards
CertificationUL
UL StandardUL 1449 5th edition
UL File NumberE319777
Technical data
SPD as per ANSI/UL 1449Open-Type 1 SPD
SPD as per CSA-C22.2 no. 269.1Type 4-1 Component Assembly
Max. continuous operating voltage AC (MCOV)385 Vac
Nominal discharge current (8/20 µs) (In)20 kA
Voltage protection rating (VPR)1200 Vpk
Max. mains-side overcurrent protectionNot needed
ApprovalsUL, CSA
Type of remote signalling contactFloating (dry), Form C (SPDT)
Test values according to UL 1449
Type (SPD classification)Type 1 component assembly
Nominal discharge current (8/20µs) ( In)20 kA
Maximum ambient temperature85 °C
AWG (conductors)2-14 Cu solid or stranded
AWG (remote indicator)16 - 22 Cu


Product data sheet
Datasheet for DEHN 908094, EAN: 4013364148574

Questions & answers

What is the delivery time of DEHN 908094 DG SU 1P 240 R surge protector Type 2 guard S?

The article DEHN 908094 DG SU 1P 240 R surge protector Type 2 guard S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 908094 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 908094 DG SU 1P 240 R surge protector Type 2 guard S always at the best possible price. We can give you a discount of 2% on DEHN 908094 DG SU 1P 240 R surge protector Type 2 guard S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 908094 DG SU 1P 240 R surge protector Type 2 guard S we can offer you a price of 125,38 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
