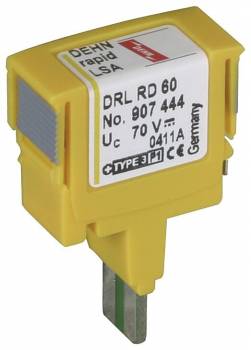

DEHN 907444 DRLRD60 surge arrester rapid LSA for 1 pair cable Un 60 V
|
44,27 EUR 44,75 EUR |
|||||||||||
|
( 52,68 EUR incl. VAT ) ≈ £37.05 | ≈ $48.65 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1310920 | ||||||||||
| Mfg Part No: | 907444 | ||||||||||
| UPC/EAN: | 4013364107724 | ||||||||||
| Weight: | 0.003 kg | ||||||||||
| Type: | DRL RD 60 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 907444:
| General | |
| SPD class | O |
| Nominal voltage (UN) | 60 V |
| Max. continuous operating voltage DC (UC) | 70 V |
| Max. continuous operating a.c. voltage (UC) | 49.5 V |
| Nominal current (IN) | 0.4 A |
| D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (Iimp) | 5 kA |
| D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (Iimp) | 2.5 kA |
| C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (In) | 10 kA |
| C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (In) | 5 kA |
| C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (In) | 0.25 kA |
| Voltage protection level line-PG for Iimp D1 in combination with DRL 10 B... (UP) | ≤ 500 V |
| Voltage protection level line-line at 1 kV/µs C3 (UP) | ≤ 95 V |
| Series impedance per line | 4.7 ohms |
| Cut-off frequency line-line (fG) | 11 MHz |
| Capacitance line-line (C) | ≤ 500 pF |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Degree of protection | IP 20 (when plugged in) |
| Pluggable into | LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block |
| Enclosure material | polyamide PA 6.6 |
| Colour | yellow |
| Test standards | IEC 61643-21 / EN 61643-21 |
Questions & answers
What is the delivery time of DEHN 907444 DRLRD60 surge arrester rapid LSA for 1 pair cable Un 60 V?
The article DEHN 907444 DRLRD60 surge arrester rapid LSA for 1 pair cable Un 60 V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 907444 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 907444 DRLRD60 surge arrester rapid LSA for 1 pair cable Un 60 V always at the best possible price. We can give you a discount of 2% on DEHN 907444 DRLRD60 surge arrester rapid LSA for 1 pair cable Un 60 V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of DEHN 907444 DRLRD60 surge arrester rapid LSA for 1 pair cable Un 60 V we can offer you a price of 41,61 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
