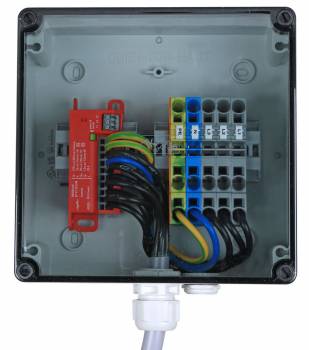

DEHN 900905 DCU EMOB 2 32 surge arrester type 2+3 cube
|
364,23 EUR 368,48 EUR |
|||||||||||
|
( 433,43 EUR incl. VAT ) ≈ £304.86 | ≈ $400.29 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2121876 | ||||||||||
| Mfg Part No: | 900905 | ||||||||||
| UPC/EAN: | 4013364506244 | ||||||||||
| Weight: | 2.071 kg | ||||||||||
| Type: | DCU EMOB 2 32 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 900905:
| General | |
| SPD according to EN 61643-11 / IEC 61643-11 | Type 2 + Type 3 / class II + class III |
| Tested to | EN 61439-1 / ... IEC 61439-1, EN 61439-2 / ... IEC 61439-2 |
| Nominal voltage (a.c.) (UN) | 230 V (50 / 60 Hz) |
| Nominal alternating current (IL) | 32 A |
| Max. power | 11 / 22 kW |
| Voltage protection level [L-N] (UP) | ≤ 1.5 kV |
| Voltage protection level [N-PE] (UP) | ≤ 1.5 kV |
| Temporary overvoltage (TOV) [L-N] (UT) – Characteristic | 335 V / 5 sec. – withstand, 440 V / 120 min. – safe failure |
| Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic | 1200 V / 200 ms – withstand |
| Operating state / fault indication | green / red |
| Type of remote signalling contact | Changeover contact |
| Switching capacity (a.c.) | 250 V / 0.5 A |
| Switching capacity (d.c.) | 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Cross-sectional area for remote signalling terminals | max. 1.5 mm2 solid / fine-stranded |
| Place of installation | Installation in protected outdoor areas |
| Degree of protection | IP 65 |
| Type | with pressure compensating element |
| Cover | Transparent cover with product label |
| Enclosure colour | grey |
| Input | Ölflex 5x 6 mm², length 1.5 m |
| Output | System-side connection with M25 screw connection |
| Enclosure dimensions (W x H x D) | 182 x 180 x 100 mm |
Questions & answers
What is the delivery time of DEHN 900905 DCU EMOB 2 32 surge arrester type 2+3 cube?
The article DEHN 900905 DCU EMOB 2 32 surge arrester type 2+3 cube is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 900905 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 900905 DCU EMOB 2 32 surge arrester type 2+3 cube always at the best possible price. We can give you a discount of 2% on DEHN 900905 DCU EMOB 2 32 surge arrester type 2+3 cube if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of DEHN 900905 DCU EMOB 2 32 surge arrester type 2+3 cube we can offer you a price of 342,38 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
