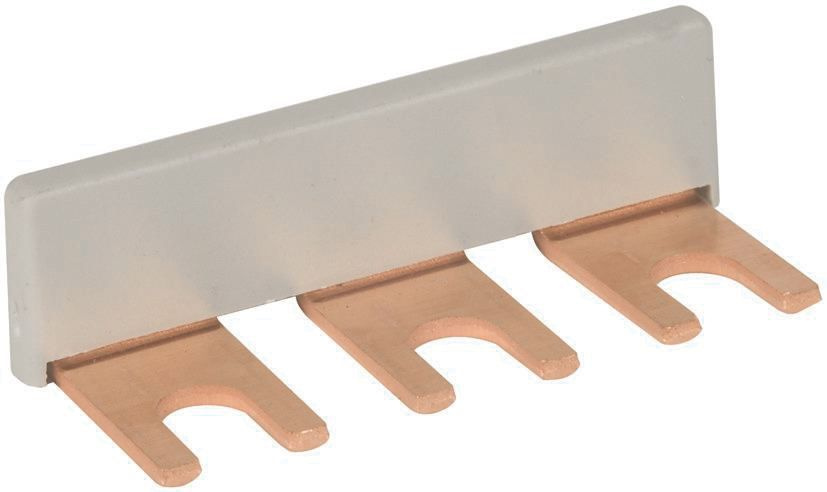

DEHN 900615 MVS13 comb busbar modular wiring system 1ph 3-pole CU 16 mm²

Your rating:
Average rating
product review for DEHN 900615 MVS13 comb busbar modular wiring system 1ph 3-pole CU 16 mm²
( 4.5 / 5 ) 11 ratings
DEHN 900615
This image may differ from the desired article.
DEHN 900615DEHN 900615
4,84 EUR 4,85 EUR
( 5,76 EUR incl. VAT )
≈ £4.05  |  ≈ $5.32
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 900615 MVS13 comb busbar modular wiring system 1ph 3-pole CU 16 mm²
Datasheet:file_download Download
Lieske Part No.:193634
Mfg Part No: 900615
UPC/EAN: 4013364086562
Weight:0.014 kg
Type:MVS 1 3
Graduated prices net
From piecesPrice per pieces
504,55 EUR
1004,26 EUR
2503,97 EUR
5003,68 EUR

Product information for DEHN 900615:

The DEHN comb bar MVS 1 3 is a single-phase, three-pole modular wiring system made of copper with a cross-section of 16 mm². It serves as a connection element in electrical installations, particularly in the field of earthing and equipotential bonding installations. The comb bar enables a structured and secure connection of multiple conductors or earthing conductors at a central point, thereby simplifying the installation and maintenance of electrical systems. The system is suitable for use in industrial, commercial, and also certain residential applications where a reliable and durable earthing connection is required.

Applications

The comb bar MVS 1 3 is primarily used in the field of electrical installation, particularly for connecting earthing conductors, equipotential bonding conductors, or protective conductors. It is suitable for applications where multiple conductors must be brought together at a single point, for example in distribution boxes, enclosures, or during the installation of lightning protection systems. The three-pole design allows for the simultaneous connection of three conductors, making installation in single-phase systems with protective conductor, neutral conductor, and phase conductor more efficient.

Functions and Equipment in Detail

The product consists of a copper profile with a cross-section of 16 mm², ensuring high electrical conductivity and mechanical stability. The comb bar is designed as a modular wiring system, meaning it can be integrated into existing installations and allows for flexible adaptation to different requirements. The three-pole construction enables the simultaneous connection of three conductors, thereby reducing the number of required connection points. The connection is made via screw terminals, which ensure a secure and durable electrical connection.

Technology Explained Simply

The comb bar MVS 1 3 is made of copper, a material with high electrical conductivity, which is particularly suitable for earthing and equipotential bonding conductors. The cross-section of 16 mm² corresponds to a standard value for earthing conductors in many applications and ensures sufficient current-carrying capacity as well as low resistance. The single-phase, three-pole design means the comb bar is designed for connecting three conductors in a single-phase system – typically phase, neutral conductor, and protective conductor. The modular design allows for easy integration into existing installations and flexible adaptation to different requirements.

Compatibility and Accessories

The comb bar is designed for use in electrical installations requiring a structured earthing or equipotential bonding connection. It can be combined with other components of the DEHN modular wiring system to build complete earthing systems. The connection is made via screw terminals, which are tightened using appropriate tools (e.g. screwdriver or wrench). The exact installation must be carried out in accordance with applicable regulations and standards of electrical engineering, particularly VDE 0100 and DIN VDE 0100-510.

Installation and Mounting

The comb bar is mounted in distribution boxes, enclosures, or other suitable installation systems. The comb bar is fixed at a stable point, with mounting options varying depending on the installation system. The conductors are inserted into the screw terminals and tightened securely using an appropriate tool. Correct installation requires compliance with applicable standards and regulations to ensure a safe and durable electrical connection.

Operational Advantages

The comb bar MVS 1 3 provides a structured and clear connection of multiple conductors at a central point. This simplifies the installation, maintenance, and inspection of the electrical system. The use of copper with a cross-section of 16 mm² ensures high electrical conductivity and long service life. The modular design allows for flexible adaptation to different requirements and easy integration into existing installations. The three-pole design reduces the number of required connection points and improves the clarity of the installation.

General
Product typecomb rail / modular wiring system
Number of phasessingle-phase
Polesthree-pole
MaterialCopper
Cross section16 mm²
Typesingle-phase
Number of contact studs3
Nominal cross-section16 mm²


Product data sheet
Datasheet for DEHN 900615, EAN: 4013364086562

Questions & answers

What is the delivery time of DEHN 900615 MVS13 comb busbar modular wiring system 1ph 3-pole CU 16 mm²?

The article DEHN 900615 MVS13 comb busbar modular wiring system 1ph 3-pole CU 16 mm² is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 900615 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 900615 MVS13 comb busbar modular wiring system 1ph 3-pole CU 16 mm² always at the best possible price. We can give you a discount of 2% on DEHN 900615 MVS13 comb busbar modular wiring system 1ph 3-pole CU 16 mm² if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of DEHN 900615 MVS13 comb busbar modular wiring system 1ph 3-pole CU 16 mm² we can offer you a price of 4,55 EUR per piece. The more you buy, the cheaper the article will be.
