DEHN 900448 DCOR L 2P 275 SO IP surge arrester Type 2 cord

Your rating:
Average rating
product review for DEHN 900448 DCOR L 2P 275 SO IP surge arrester Type 2 cord
( 4.4 / 5 ) 19 ratings

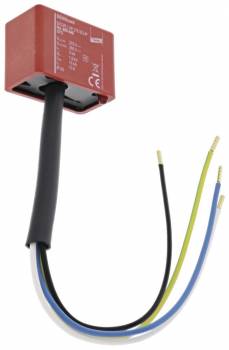

DEHN 900448
This image may differ from the desired article.
DEHN 900448DEHN 900448
82,74 EUR 83,75 EUR
( 98,46 EUR incl. VAT )
≈ £69.25  |  ≈ $90.93
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 900448 DCOR L 2P 275 SO IP surge arrester Type 2 cord
Datasheet:file_download Download
Lieske Part No.:869888
Mfg Part No: 900448
UPC/EAN: 4013364293007
Weight:0.14 kg
Type:DCOR L 2P 275 SO IP
Graduated prices net
From piecesPrice per pieces
677,78 EUR
1272,81 EUR
2467,85 EUR
3662,88 EUR

Product information for DEHN 900448:

Zweipoliger Überspannungsableiter DEHNcord L, Typ 2 nach EN 61643-11, in sehr kompakter Bauform mit Anschlussleitung zur Montage im Außenbereich (Schutzart IP 65) z. B. an Kabelübergangskästen von LED-Mastleuchten mit Abschaltung des Laststromkreises im Fehlerfall. Zum Einsatz im Blitz-Schutzzonen-Konzept an den Schnittstellen 0B - 1 und höher.

Technical data
SPD according to EN 61643-11 / IEC 61643-11Type 2 / Class II
Energy-coordinated protective effect to end device (≤ 10 m)Type 2 + Type 3
Nominal voltage AC (UN)230 V (50 / 60 Hz)
Maximum continuous operating voltage AC [L-N] (UC)275 V (50 / 60 Hz)
Maximum continuous operating voltage AC [N-PE] (UC)255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In)5 kA
Maximum discharge current (8/20 µs) (Imax)10 kA
Protection level [L-N] (UP)≤ 1,5 kV
Protection level [L-N] at 3 kA (UP)≤ 1 kV
Protection level [L-N] at 1.5 kA (UP)≤ 0,85 kV
Protection level [N-PE] (UP)≤ 1,5 kV
Follow current interruption capability [N-PE] (Ifi)100 Aeff
Response time [L-N] (tA)≤ 25 ns
Response time [L/N-PE] (tA)≤ 100 ns
Maximum load current AC (IL)10 A
Max. mains-side overcurrent protectionB 16 A
Short-circuit withstand capability with network-side overcurrent protection (ISCCR)1 kAeff
Short-circuit withstand capability with network-side overcurrent protection with 16 A gG (ISCCR)6 kAeff
TOV voltage [L-N] (UT) – characteristic335 V / 5 sec. – withstand, 440 V / 120 min. – safe failure
TOV voltage [N-PE] (UT) – characteristic1200 V / 200 ms. – safe failure
Fault indicationRed
Number of ports1
Operating temperature range (TU)-40 °C ... +80 °C
Connection cable1.5 mm2, length approx. 230 mm
Housing materialThermoplastic, colour red, UL 94 V-0
Degree of protection in installed stateIP 65
Additional tests---------------------------------
Total discharge surge current (Isum)20 kA
Extended technical data---------------------------------
Combined surge (UOC)10 kV
Interruption of load circuit in fault conditionYes


Product data sheet
Datasheet for DEHN 900448, EAN: 4013364293007

Questions & answers

What is the delivery time of DEHN 900448 DCOR L 2P 275 SO IP surge arrester Type 2 cord?

The article DEHN 900448 DCOR L 2P 275 SO IP surge arrester Type 2 cord is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 900448 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 900448 DCOR L 2P 275 SO IP surge arrester Type 2 cord always at the best possible price. We can give you a discount of 2% on DEHN 900448 DCOR L 2P 275 SO IP surge arrester Type 2 cord if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of DEHN 900448 DCOR L 2P 275 SO IP surge arrester Type 2 cord we can offer you a price of 77,78 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
