DEHN 900075 DCB YPV 1200 FM combi arrester combo for photovoltaic systems 1200 V

Your rating:
Average rating
product review for DEHN 900075 DCB YPV 1200 FM combi arrester combo for photovoltaic systems 1200 V
( 4.7 / 5 ) 6 ratings

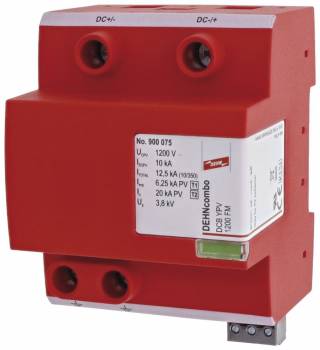

DEHN 900075
This image may differ from the desired article.
DEHN 900075DEHN 900075DEHN 900075
367,27 EUR 371,55 EUR
( 437,05 EUR incl. VAT )
≈ £307.40  |  ≈ $403.63
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 900075 DCB YPV 1200 FM combi arrester combo for photovoltaic systems 1200 V
Datasheet:file_download Download
Lieske Part No.:1593933
Mfg Part No: 900075
UPC/EAN: 6942299504538
Weight:0.588 kg
Type:DCB YPV 1200 FM
Graduated prices net
From piecesPrice per pieces
4345,23 EUR
8323,20 EUR
12301,16 EUR
16279,13 EUR

Product information for DEHN 900075:

The DEHN DCB YPV 1200 FM is a multipole combination surge arrester for photovoltaic generator circuits, developed for protection against overvoltages in the DC range. It combines the protection functions of Type 1 and Type 2 according to EN 61643-31 and is specifically designed for use in photovoltaic systems. The arrester protects photovoltaic inverters against transient overvoltages caused by direct lightning strikes or inductive voltage spikes. It is intended for use in accordance with the standard IEC 60364-7-712:2002-05, which regulates the installation of photovoltaic supply systems.

Applications
The DEHNcombo YPV 1200 FM is used in photovoltaic systems where high protection requirements exist for DC circuits. It is suitable for installations located in areas with increased lightning strike risk and provides reliable protection for the electronic components of the system, particularly inverters. The application is typically in the generator section, i.e., between the photovoltaic module strings and the inverter, to protect the entire DC line against overvoltages.

Functions and Equipment in Detail
The arrester features a 3-stage DC switching device that combines both disconnection and short-circuit functions in a single unit. This combination enables safe disconnection of the circuit in the event of a fault, minimizing the risk of fires or further damage. The integrated switching device responds to overloads or short circuits and automatically disconnects the circuit, eliminating the need for additional fuses or switches.

Technology Explained Simply
The DEHNcombo YPV 1200 FM operates according to standards for surge protection devices in DC systems. The Type 1 protection function safeguards against direct lightning strikes, which release high energy, while the Type 2 function is designed for indirect overvoltages, such as those caused by inductive effects. The combination of both types in a single device ensures comprehensive protection. The 3-stage switching device ensures that in the event of a fault, the circuit is both disconnected and short-circuited, enabling safe control of energy discharge.

Compatibility and Accessories
The arrester is specifically designed for photovoltaic generator circuits and is used in systems with DC voltages up to 1200 V. It is compatible with the requirements of the standard IEC 60364-7-712:2002-05, which regulates the installation of photovoltaic supply systems.

Mounting and Installation
Mounting is typically performed in the DC section of the photovoltaic system, between the modules and the inverter. Installation requires compliance with the provisions of the standard IEC 60364-7-712:2002-05, particularly regarding mounting, wiring, and safety distances. No specific tools or additional components are required beyond those standard in electrical trade practice.

Advantages in Operation
The DEHNcombo YPV 1200 FM provides reliable, integrated protection for photovoltaic systems. The combination of Type 1 and Type 2 protection in a single device reduces the number of required components and simplifies installation. The 3-stage switching device enhances safety by integrating both disconnection and short-circuit functions in one unit. This leads to reduced susceptibility to faults and improved operational safety for the entire system.

General
Degree of protectionType 1 + Type 2
NormEN 61643-31
Application areaPhotovoltaic generator circuits
Switching device3-stage DC switching device
FunctionCombined disconnect and short-circuit device
Application standardIEC 60364-7-712:2002-05
Technical data
SPD according to EN 61643-31 / IEC 61643-31Typ 1 + Typ 2 / Class I + Class II
Max. PV voltage [DC+ - DC-] (UCPV)≤ 1200 V
Short-circuit withstand capability (ISCPV)10 kA
Total discharge current (10/350 µs) [DC+/DC- - PE] (Itotal)12,5 kA
Lightning impulse current (10/350 µs) [DC+ - PE/DC- - PE] (Iimp)6,25 kA
Voltage protection level [(DC+/DC-) - PE] (UP)< 3,8 kV
ApprovalsKEMA, UL
Type of remote signalling contactchangeover contact


Product data sheet
Datasheet for DEHN 900075, EAN: 6942299504538

Questions & answers

What is the delivery time of DEHN 900075 DCB YPV 1200 FM combi arrester combo for photovoltaic systems 1200 V?

The article DEHN 900075 DCB YPV 1200 FM combi arrester combo for photovoltaic systems 1200 V is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 900075 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 900075 DCB YPV 1200 FM combi arrester combo for photovoltaic systems 1200 V always at the best possible price. We can give you a discount of 2% on DEHN 900075 DCB YPV 1200 FM combi arrester combo for photovoltaic systems 1200 V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of DEHN 900075 DCB YPV 1200 FM combi arrester combo for photovoltaic systems 1200 V we can offer you a price of 345,23 EUR per piece. The more you buy, the cheaper the article will be.
