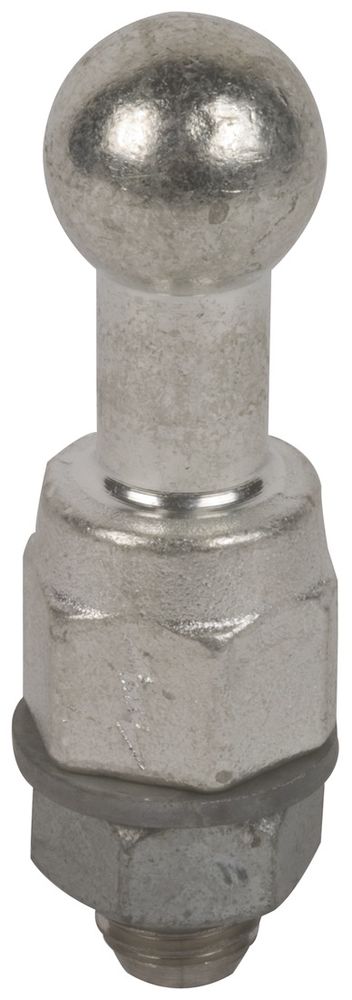

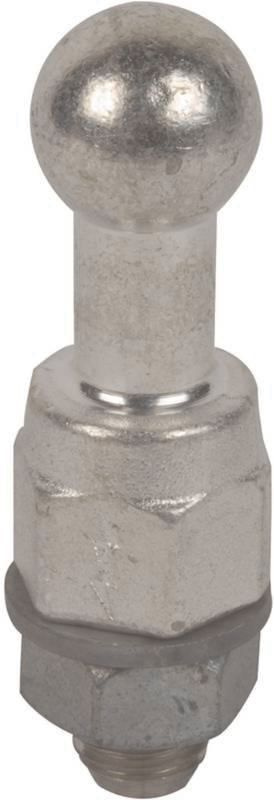

DEHN 755627 KFP25M1235SKM ball anchor D25 mm with bolt nut and washer M12x35 mm

Your rating:
Average rating
product review for DEHN 755627 KFP25M1235SKM ball anchor D25 mm with bolt nut and washer M12x35 mm
( 4.3 / 5 ) 7 ratings
DEHN 755627
This image may differ from the desired article.
DEHN 755627DEHN 755627
45,98 EUR
( 54,72 EUR incl. VAT )
≈ £38.30  |  ≈ $50.44
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 755627 KFP25M1235SKM ball anchor D25 mm with bolt nut and washer M12x35 mm
Datasheet:file_download Download
Lieske Part No.:1312500
Mfg Part No: 755627
UPC/EAN: 4013364077768
Weight:0.311 kg
Type:KFP 25 M12 35 SKM
Graduated prices net
From piecesPrice per pieces
1043,91 EUR
2541,84 EUR
5039,77 EUR
7537,70 EUR

Product information for DEHN 755627:

The Kugelfestpunkt KFP 25 M12 35 SKM from DEHN is a straight fixing point with a diameter of 25 mm, specifically designed for the secure attachment of conductors and earthing systems in electrical installations. It serves as a phase-side and earth-side connection point in accordance with the standard DIN VDE 0683-100 (equivalent to EN/IEC 61230), which applies to the connection of conductors with earthing systems in high- and low-voltage installations. The construction enables a reliable mechanical and electrical connection, with the fixing point featuring a threaded bolt and nut intended for mounting on corresponding components.

Applications

The Kugelfestpunkt is used in electrical installations where a firm and permanent connection between conductors and earthing systems is required. This includes low-voltage applications such as in distribution boxes, enclosures, or during the installation of protective conductors. Its use is required in installations that must comply with DIN VDE 0683-100 to ensure safe and standard-compliant earthing.

Functions and Equipment in Detail

The fixing point features a straight, cylindrical body with a diameter of 25 mm, serving as a sphere to distribute mechanical stress during installation. At both ends, a threaded bolt with a nut is integrated, enabling a secure connection on both the phase-side and earth-side. The nut ensures secure fastening at the respective connection points, with the thread and nut design meeting the requirements of the standard.

Technology Explained Simply

The design of the Kugelfestpunkt is based on a simple yet effective principle: the spherical shape ensures even distribution of mechanical forces generated when tightening the nut. This prevents local overloading and increases the connection’s service life. The use of threaded bolts and nuts allows for precise and repeatable installation, which remains reliable even during frequent maintenance or in confined spaces. The DIN VDE 0683-100 standard ensures that the electrical and mechanical connection meets the requirements for earthing in electrical installations.

Compatibility and Accessories

The Kugelfestpunkt is designed for use with conductors and earthing systems manufactured in accordance with DIN VDE 0683-100. The connection is made via the integrated threaded bolts and nuts, which are intended for mounting on corresponding components.

Installation and Mounting

Mounting is performed by tightening the nut on the threaded bolt, securing the fixing point to the conductor or earthing system. The exact torque specification is defined in the technical documentation of DIN VDE 0683-100 and must be observed during installation to ensure a secure connection. Installation takes place in electrical installations complying with the standard, and no additional tools or components are required.

Operational Advantages

The Kugelfestpunkt provides a robust and reliable connection that meets the requirements of DIN VDE 0683-100. The spherical shape ensures even force distribution, increasing the connection’s lifespan. The integrated threaded bolts and nuts enable simple and secure installation, which remains reliable even during frequent maintenance. Its use in electrical installations ensures safe earthing, which is essential for the protection of personnel and equipment.

General
Diameter25 mm
Threaded studM12 x35 mm
Connection typephase side and earth side
NormDIN VDE 0683-100
ShapeStraight
FunctionFixed point for conductors and grounding system
Fixed ball point Ø25 mm
DimensionsM12 x 35 mm
Max. short-circuit current Ik 0.06 s34.0 kA
DB drawing No.3 Ebgw 01.63
DB Material No.622 014


Product data sheet
Datasheet for DEHN 755627, EAN: 4013364077768

Questions & answers

What is the delivery time of DEHN 755627 KFP25M1235SKM ball anchor D25 mm with bolt nut and washer M12x35 mm?

The article DEHN 755627 KFP25M1235SKM ball anchor D25 mm with bolt nut and washer M12x35 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 755627 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 755627 KFP25M1235SKM ball anchor D25 mm with bolt nut and washer M12x35 mm always at the best possible price. We can give you a discount of 2% on DEHN 755627 KFP25M1235SKM ball anchor D25 mm with bolt nut and washer M12x35 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of DEHN 755627 KFP25M1235SKM ball anchor D25 mm with bolt nut and washer M12x35 mm we can offer you a price of 43,91 EUR per piece. The more you buy, the cheaper the article will be.
