DEHN 745903 EKSVI2FKVSKK earthing and short-circuit set VI for KVS with KSkoffer
|
2.625,51 EUR |
|||||||||||
|
( 3.124,36 EUR incl. VAT ) ≈ £2,197.55 | ≈ $2,885.44 plus delivery charges: 100,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 193146 | ||||||||||
| Mfg Part No: | 745903 | ||||||||||
| UPC/EAN: | 4013364093577 | ||||||||||
| Weight: | 7 kg | ||||||||||
| Type: | EKS VI 2F KVS KK | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 745903:
Applications
This earthing and short-circuiting set is intended for use in low-voltage installations, particularly at cable distributors (KVS) in industrial and commercial environments. It is used to safely earth and short-circuit electrical installations during maintenance work or repairs, preventing dangerous residual voltage conditions. The application is carried out in accordance with the requirements of DIN VDE 0683-100 (EN/IEC 61230), which specifies the technical requirements for earthing and short-circuiting devices.
Functions and Equipment in Detail

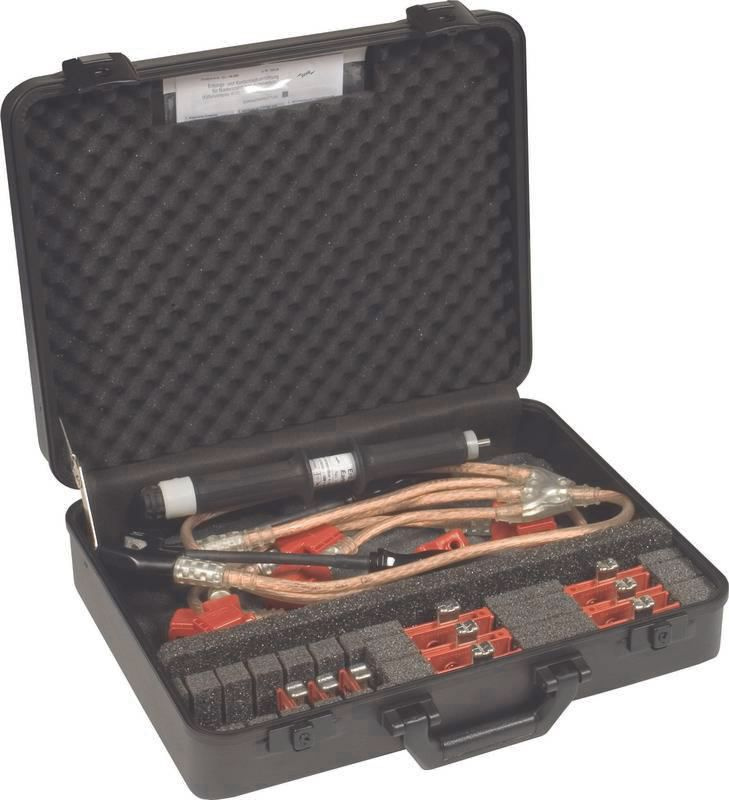

The set includes all necessary components for safe earthing and short-circuiting at a cable distributor. It contains earthing cartridges with T-connection, operated via an insulated earthing handle VI. This handle is used both for inserting and removing the cartridges and for screwing on the earthing and short-circuiting device. The cable routing and knot piece are waterproof plastic-insulated and feature additional crush protection to minimize mechanical stress and extend service life. The variant number of the earthing and short-circuiting device is V162LDM.
Technology Explained Simply
The fully insulated design (VI) means that all conductive parts of the device are electrically insulated, ensuring shock protection. This is particularly important when the device is used in areas with an increased risk of electrical hazard. The waterproof insulation of the cable routing protects against moisture, increasing reliability in outdoor or damp indoor environments. The temperature resistance of the set ranges from –25 °C to +55 °C, enabling use in a wide range of environments. The dimensions of the case are 450 x 350 x 110 mm.
Compatibility and Accessories
The set is specifically designed for NS cable distributors (KVS) and matches the standard dimensions of these switchgear installations. Other cable lengths can be selected via the EuK configurator online at www.dehn.de/de/euk to meet individual installation requirements. Compatibility with other DEHN earthing and short-circuiting components is ensured, as the components are manufactured according to uniform standards.
Mounting and Installation
Installation is performed by inserting the earthing cartridges into the designated connection points of the cable distributor. The insulated earthing handle VI allows safe handling without direct contact of the operator with conductive parts. The earthing and short-circuiting device is then screwed on, with the cables establishing the connection between the individual poles. Installation is carried out in accordance with the requirements of DIN VDE 0105-100, which regulates safety measures for electrical installations.
Operational Advantages
The fully insulated design and shock-safe construction increase operator safety. The waterproof insulation of the cable routing ensures high reliability even under damp conditions. The integrated cable routing with crush protection extends the service life of the device. The complete set in a plastic case facilitates transport and storage, ensuring availability at the site of use. Compliance with the standard DIN VDE 0683-100 (EN/IEC 61230) ensures that the product meets recognized technical standards.
| General | |
| Variant No. of EaS device | V162LDM |
| Dimensions | 450 x 350 x 110 mm |
Questions & answers
What is the delivery time of DEHN 745903 EKSVI2FKVSKK earthing and short-circuit set VI for KVS with KSkoffer?
The article DEHN 745903 EKSVI2FKVSKK earthing and short-circuit set VI for KVS with KSkoffer is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 745903 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 745903 EKSVI2FKVSKK earthing and short-circuit set VI for KVS with KSkoffer always at the best possible price. We can give you a discount of 2% on DEHN 745903 EKSVI2FKVSKK earthing and short-circuit set VI for KVS with KSkoffer if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of DEHN 745903 EKSVI2FKVSKK earthing and short-circuit set VI for KVS with KSkoffer we can offer you a price of 2.507,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
