DEHN 740200 EFD BU 6 420 C sense EFD in case Un 6...420 kV / 16.7...60 Hz

Your rating:
Average rating
product review for DEHN 740200 EFD BU 6 420 C sense EFD in case Un 6...420 kV / 16.7...60 Hz
( 0 / 5 ) 0 ratings

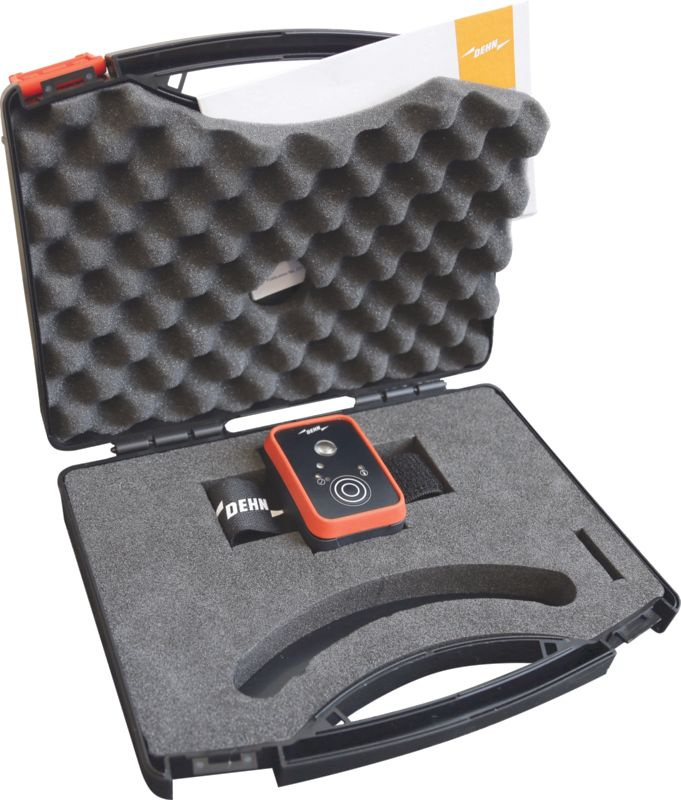

DEHN 740200
This image may differ from the desired article.
DEHN 740200DEHN 740200DEHN 740200
1.036,16 EUR
( 1.233,03 EUR incl. VAT )
≈ £867.27  |  ≈ $1,138.74
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 740200 EFD BU 6 420 C sense EFD in case Un 6...420 kV / 16.7...60 Hz
Datasheet:file_download Download
Lieske Part No.:604060
Mfg Part No: 740200
UPC/EAN: 4013364522558
Weight:0.451 kg
Type:EFD BU 6 420 C
Graduated prices net
From piecesPrice per pieces
2989,53 EUR
4942,91 EUR
6896,28 EUR
8849,65 EUR

Product information for DEHN 740200:

The DEHNsense EFD BU 6 420 C is a portable E-field hazard warning device from the brand DEHN, developed for detection and warning of electric fields in high-voltage installations. The device serves as an additional safety measure and complements the 5 safety rules for handling electrical installations. It warns the user upon approaching hazardous areas through visual, acoustic, and haptic signals, preventing accidental entry into the danger zone. The warning function is based on measuring electric fields in the voltage range of 6 to 420 kV and frequencies from 16.7 to 60 Hz.

Applications

The EFD BU 6 420 C is designed for use in high-voltage installations, particularly in areas where personnel work near live conductors or energized parts. It is suitable for maintenance work, inspections, and tests in outdoor and indoor installations. The application occurs near high-voltage lines, transformers, switchgear, and other electrical equipment that generate an electric field. The device is suitable for outdoor use, as it is delivered in a robust case providing protection against mechanical impacts and environmental influences.

Functions and Equipment in Detail

The device detects electric fields in the range of 6 to 420 kV and triggers a warning as soon as the preset threshold limit is exceeded. The warning is conveyed via three channels: visually through an LED, acoustically through a signal tone, and haptically through vibration. The sensitivity can be adjusted site-specifically via the free DEHNwork app. This app also allows displaying device information and storing settings. Adjusting sensitivity enables individual calibration for each installation, minimizing false alarms and increasing safety.

Technology Explained Simply

The EFD BU 6 420 C measures the electric field generated by energized conductors. The device does not react to the voltage itself, but to the surrounding electric field, which is already measurable at a certain distance from live parts. Measurement occurs in the frequency range of 16.7 to 60 Hz, corresponding to typical operating frequencies in electrical networks. The warning function is activated as soon as the measured field exceeds a preset threshold. Threshold values can be individually set via the DEHNwork app to adapt the warning to the specific conditions of the installation. The app also enables transmission of device information, such as firmware version or operating status.

Compatibility and Accessories

The device is compatible with the free DEHNwork app, which runs on smartphones and tablets with iOS and Android operating systems. The app is used to adjust sensitivity, display device information, and store settings. Using the app is optional but recommended to fully utilize the device’s functionality.

Mounting and Installation

The DEHNsense EFD BU 6 420 C is designed as a portable device and requires no mounting or installation. It is delivered in a robust case protecting it during transport and storage. The device is attached directly to the user’s body, e.g., to clothing or belt, to ensure optimal perception of warning signals. Operation is via buttons on the device, while settings are adjusted through the DEHNwork app. The app requires a Bluetooth connection to the device to transfer settings.

Advantages in Operation

The EFD BU 6 420 C provides a reliable warning function against electrical hazards detected via the electric field. The combination of visual, acoustic, and haptic warnings increases the likelihood that the user perceives the warning, even in noisy or distracting environments. Site-specific adjustment of sensitivity via the DEHNwork app allows precise settings, enhancing safety while reducing false alarms. The portable design and simple operation make the device particularly suitable for mobile applications. Use as an additional measure to the 5 safety rules supports safety culture in operations and increases employee awareness of electrical hazards.

Batteries are not included in the delivery scope.

General
Device typeE-field hazard warning device
Voltage range6...420 kV
Frequency range2,400 to 2,483.5 MHz
Warning typesoptical, acoustic, haptic
Adjustmentsystem-specific via DEHNwork App
App compatibilityDEHNwork App
Additional measurein accordance with the 5 safety rules
Type of deliveryIn case
Nominal voltage (UN)6 ... 420 kV
Frequency16.7 … 60 Hz
Rechargeable battery capacity750 mAh, replaceable
ChargingContactless, inductive charging (Qi standard) *)
Degree of protectionIP 65
Operation1-button operating concept
Transmission typeBluetooth LE
CE declaration in accordance withRadio Equipment Directive (RED) 2014/53/EU and RoHS Directive 2011/65/EU
Transmission powermax. +5 dBm
Dimensions50 x 70 x 30 mm
Self-test functionYes
Internal memoryYes


Product data sheet
Datasheet for DEHN 740200, EAN: 4013364522558

Questions & answers

What is the delivery time of DEHN 740200 EFD BU 6 420 C sense EFD in case Un 6...420 kV / 16.7...60 Hz?

The article DEHN 740200 EFD BU 6 420 C sense EFD in case Un 6...420 kV / 16.7...60 Hz is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 740200 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 740200 EFD BU 6 420 C sense EFD in case Un 6...420 kV / 16.7...60 Hz always at the best possible price. We can give you a discount of 2% on DEHN 740200 EFD BU 6 420 C sense EFD in case Un 6...420 kV / 16.7...60 Hz if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of DEHN 740200 EFD BU 6 420 C sense EFD in case Un 6...420 kV / 16.7...60 Hz we can offer you a price of 989,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
