DEHN 563030 PAS AH RK 13x25 1x8.10 equipotential bonding bar

Your rating:
Average rating
product review for DEHN 563030 PAS AH RK 13x25 1x8.10 equipotential bonding bar
( 4.5 / 5 ) 39 ratings
DEHN 563030
This image may differ from the desired article.
DEHN 563030DEHN 563030DEHN 563030DEHN 563030
54,24 EUR
( 64,55 EUR incl. VAT )
≈ £45.40  |  ≈ $59.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces

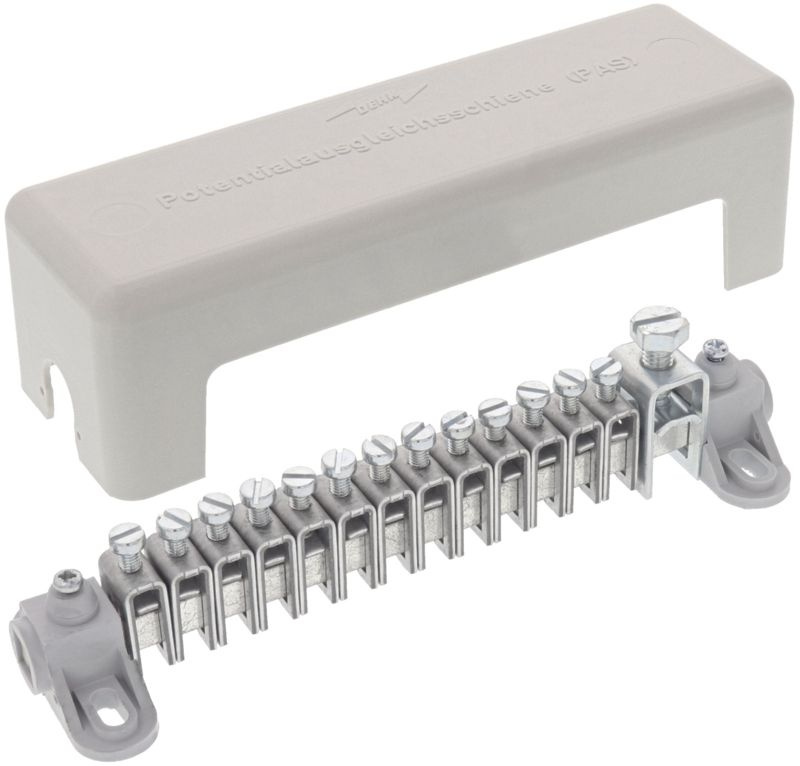

1x DEHN 563030 PAS AH RK 13x25 1x8.10 equipotential bonding bar
Datasheet:file_download Download
Lieske Part No.:392719
Mfg Part No: 563030
UPC/EAN: 4013364027824
Weight:0.444 kg
Type:PAS AH RK 13X25 1X8.10
Graduated prices net
From piecesPrice per pieces
650,99 EUR
1247,73 EUR
2444,48 EUR
3641,22 EUR

Product information for DEHN 563030:

The DEHN equipotential bonding bar type PAS AH RK 13X25 1X8.10 (manufacturer number 563030) is a component for main equipotential bonding in electrical installations. It serves both protective and functional equipotential bonding according to DIN VDE 0100-410/540 as well as lightning protection equipotential bonding in accordance with DIN EN 62305-3 (VDE 0185-305-3). The bar is designed and tested as type C according to DIN VDE 0609, confirming compliance with the required safety and performance specifications for use in electrical installations.

Applications

The bar is used in electrical installations where a safe and reliable connection of all conductive parts is required to avoid voltage differences. This includes, for example, connecting protective conductors, metal structures, pipe lines, and other conductive components. It is particularly suitable for buildings with increased requirements for electrical safety, such as industrial facilities, hospitals, or administrative buildings. The standard DIN EN 62561-1, which the bar complies with, defines the requirements for equipotential bonding bars to ensure safe and functional earthing.

Functions and Equipment in Detail

The bar features a row terminal system with 13 connection points for single- and multi-core conductors with a cross-section of 2.5 to 25 mm². Additionally, there is a connection for round wires (Rd) designed for diameters of 8 to 10 mm or for cables with a cross-section of 16 to 95 mm². The terminal bar is made of brass, galvanically tin-plated (Ms/gal Sn), ensuring good electrical conductivity and corrosion resistance. The bar brackets and the cover are made of grey, halogen-free plastic, providing high mechanical stability and resistance to environmental influences. The cover is sealable and labelable, facilitating identification and enhancing installation security.

Technology Explained Simply

The cross-section of the bar is 100 mm², ensuring high current-carrying capacity and resistance to thermal stress. Mounting is achieved via four screws with dimensions 6 x 12 mm, enabling secure installation on suitable substrates. The lightning current-carrying capacity is defined according to the manufacturer's test certificate reference, with exact specifications detailed in the test certificate. The continuous current test at 25 A and a maximum temperature rise of ≤ 45 K was successfully passed, confirming thermal endurance under continuous operation. The bar is therefore designed for use in installations that must operate reliably even under continuous electrical loads.

Compatibility and Accessories

The bar is part of the R15 product family with a row terminal system and can be combined with other components of this system to build complex earthing systems. The use of accessories such as cross or longitudinal connectors allows flexible adaptation to the specific requirements of the installation. Compatibility information refers exclusively to components listed in the manufacturer's catalog for the R15 family.

Mounting and Installation

Mounting is performed on suitable substrates using the provided mounting screws (4x 6 x 12 mm). The terminals are designed for connecting conductors within the specified cross-section, with connection points clearly marked. The cover protects the terminals from mechanical damage and environmental influences and can be sealed after installation to prevent unauthorized access. Labeling the cover allows for clear identification of the connection points.

Operational Advantages

The bar provides a reliable and durable connection of all conductive parts in the installation. The use of galvanically tin-plated brass for the terminal bar ensures high electrical conductivity and corrosion resistance. The halogen-free plastic cover is resistant to UV radiation and chemical influences, extending the service life of the bar. The sealable and labelable cover simplifies maintenance and documentation of the installation. Compliance with DIN EN 62561-1 and testing according to DIN VDE 0609 guarantee the safety and reliability of the product in operation.

General
Clamping barbrass/gal Sn
Cross section100 mm²
Fixing[4x] 6 x 12 mm
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 563030, EAN: 4013364027824
