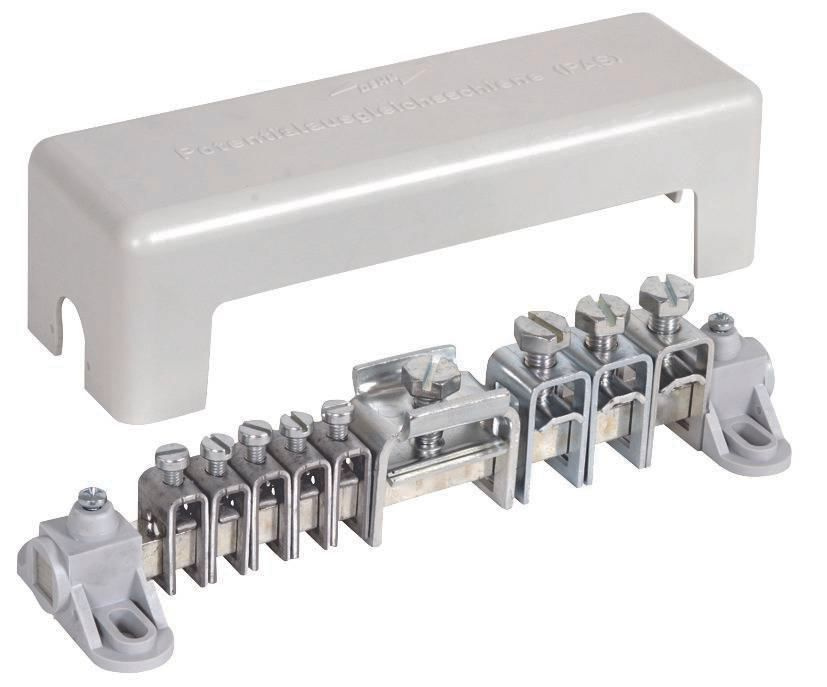

DEHN 563020 PAS AH RK 5X25 3X8.10 1XFL30 equipotential bonding bar

Your rating:
Average rating
product review for DEHN 563020 PAS AH RK 5X25 3X8.10 1XFL30 equipotential bonding bar
( 4.5 / 5 ) 11 ratings
DEHN 563020
This image may differ from the desired article.
DEHN 563020DEHN 563020
49,68 EUR
( 59,12 EUR incl. VAT )
≈ £41.58  |  ≈ $54.60
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >50 pieces
1x DEHN 563020 PAS AH RK 5X25 3X8.10 1XFL30 equipotential bonding bar
Datasheet:file_download Download
Lieske Part No.:182568
Mfg Part No: 563020
UPC/EAN: 4013364027817
Weight:0.481 kg
Type:PAS AH RK 5X25 3X8.10 1XFL30
Graduated prices net
From piecesPrice per pieces
1047,44 EUR
2545,21 EUR
5042,97 EUR
7540,74 EUR

Product information for DEHN 563020:

The potential equalization bar PAS AH RK 5X25 3X8.10 1XFL30 from DEHN is a component for main potential equalization in electrical installations. It serves both protective and functional potential equalization according to DIN VDE 0100-410/540 as well as lightning protection potential equalization according to DIN EN 62305-3 (VDE 0185-305-3). The bar is designed and tested as type B according to DIN VDE 0609, confirming compliance with the required safety and performance specifications. It belongs to the R15 potential equalization bar product family with a row terminal system and is modular in design, allowing flexible use in various installation configurations.

Applications

The bar is used in electrical installations where a safe and reliable potential equalization connection is required. This includes, for example, buildings with electrical power supply, industrial installations, and installations subject to increased lightning protection requirements. The application is particularly as a main earthing bar, which consolidates all earthing and potential equalization conductors. The standard DIN EN 62561-1, which the bar meets, defines the requirements for the construction and performance of earthing and potential equalization systems.

Functions and Equipment in Detail

The bar features a terminal bar made of brass, galvanically tin-plated (Ms/gal Sn), ensuring a secure and durable connection to the connected conductors. Connection options are diverse: five single- or multi-core conductors with a cross-section of 2.5 to 25 mm² can be connected. Additionally, three connections are provided for round wires (Rd) with a cross-section of 8 to 10 mm or 16 to 95 mm². One further connection is designed for flat conductors in the format -30 x 4 mm. The bar itself has a cross-section of 100 mm², enabling high current-carrying capacity and heat dissipation.

Technology Explained Simply

The bar is designed for use in electrical installations where high reliability and electrical conductivity are required. The row terminals made of steel, galvanically zinc-plated (St/gal Zn), ensure a mechanically stable and corrosion-resistant connection. Mounting is done via four screws with dimensions 6 x 12 mm. The lightning current-carrying capacity is specified according to DIN EN 62561-1, with the exact rating to be found in the test certificate. Thus, the bar is suitable for use in lightning protection systems where high current impulses may occur.

Compatibility and Accessories

The bar is part of a modular system and can be combined with other components from the R15 product family, such as cross or longitudinal connectors, parallel or T-connectors, and pipe clamps. These components enable flexible and modular arrangement of potential equalization systems. The bar supports and the cover are made of halogen-free plastic in gray color. The cover is sealable and labelable, facilitating documentation and identification of connection points.

Installation and Mounting

Mounting is done using the provided fastening screws (4x 6 x 12 mm) on a suitable base. Connections are secured via the row terminals, with the respective conductor cross-sections matching the designated connection areas. The bar is intended for indoor use, with materials and construction ensuring high mechanical and electrical stability.

Operational Advantages

The bar offers high reliability through the use of high-quality materials and compliance with relevant standards. The modular design allows flexible adaptation to different installation conditions. The sealable and labelable cover supports maintenance and documentation. The high lightning current-carrying capacity makes the bar suitable for installations with increased lightning protection requirements. The tested conformity according to DIN VDE 0609 ensures compliance with safety requirements.

General
Clamping barbrass/gal Sn
Cross section100 mm²
Fixing[4x] 6 x 12 mm
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 563020, EAN: 4013364027817
