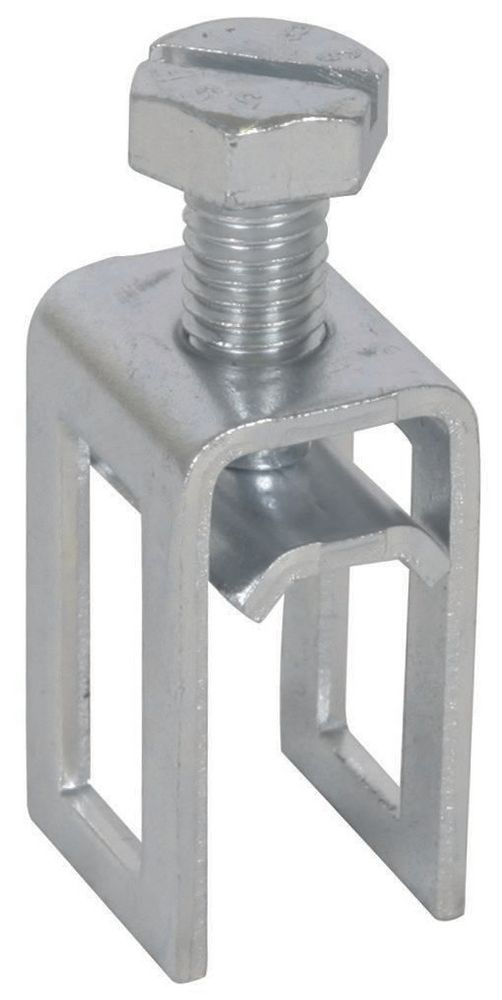

DEHN 563013 RK95PAS series terminal 16–95 mm² for PAS St/gal Zn

Your rating:
Average rating
product review for DEHN 563013 RK95PAS series terminal 16–95 mm² for PAS St/gal Zn
( 4.5 / 5 ) 32 ratings
DEHN 563013
This image may differ from the desired article.
DEHN 563013DEHN 563013DEHN 563013
3,61 EUR
( 4,30 EUR incl. VAT )
≈ £3.02  |  ≈ $3.97
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 563013 RK95PAS series terminal 16–95 mm² for PAS St/gal Zn
Datasheet:file_download Download
Lieske Part No.:696396
Mfg Part No: 563013
UPC/EAN: 4013364027756
Weight:0.04 kg
Type:RK 95 PAS
Graduated prices net
From piecesPrice per pieces
503,39 EUR
1003,18 EUR
2502,96 EUR
5002,74 EUR

Product information for DEHN 563013:

The RK 95 PAS series terminal from DEHN is a component for equipotential bonding in electrical installations. It serves as a connection point for conductors with a cross-section of 16 to 95 mm², either single- or multi-stranded, or for round bars with a diameter of 8 to 10 mm. The product is specifically designed for use in combination with terminal rails, rail brackets, and covers in the R15 system, enabling flexible and modular earthing systems. The terminal thus allows for structured and secure connection of earthing conductors and other equipotential bonding components in technical installations.

Series terminal is the product type specifically designed for use in earthing systems. The terminal is designed as a single component mounted in a row on a terminal rail, creating a continuous and electrically conductive connection. The pitch units are 2, meaning the terminal is placed on a standard terminal rail with a 25 mm module spacing, leaving space for additional components in the row. This is important for planning earthing systems where multiple connections in a line are required.

Material of the series terminal is St/gal Zn, i.e. galvanised steel. This material combination ensures high mechanical strength and corrosion protection, particularly in environments with increased humidity or outdoors. The galvanisation protects the steel base material from oxidation and extends the component's service life. The terminal is thus suitable for use in industrial, commercial, and outdoor applications where permanent electrical conductivity and mechanical stability are required.

The standard compliance is according to DIN EN 62561-1, which defines specific requirements for earthing and equipotential bonding components. This standard ensures that the component has the required electrical and mechanical properties for use in safety systems and electrical installations. Compliance with this standard is essential for approval in electrical installations and for meeting VDE regulations.

The connection capability for conductor cross-sections of 16 to 95 mm² allows connection to a wide range of earthing conductors used in various installations. The terminal is designed for both single- and multi-stranded conductors, offering high flexibility in conductor selection. Additionally, it can accommodate round bars with a diameter of 8 to 10 mm, making it suitable for use in pipe or bar earthing systems. The terminal is thus universally applicable and adapts to various requirements in the field of earthing.

The series terminal is part of a modular system consisting of various components such as terminal rails, rail brackets, and covers. These components can be combined to create custom earthing systems. Installation is done by mechanical fastening to the terminal rail, with the electrical connection ensured by the metallic contact surface.

The function of the series terminal lies in the secure and durable connection of earthing conductors and other equipotential bonding components. It ensures low transition resistance and a stable mechanical connection, which is crucial for the effectiveness of the earthing system. The terminal is designed for use in electrical installations where reliable equipotential bonding is required to minimise electrical hazards and ensure system safety.

Compatibility is provided with the R15 system, which includes terminal rails, rail brackets, and covers. The terminal can be combined with these components to create a modular and expandable earthing system. Use within the R15 system enables structured and clear installation, with the terminal mounted as part of the row on the rail. Combination with other components is achieved through mechanical fastening, with electrical conductivity ensured by metallic contacts.

Installation and mounting are done by fastening to a terminal rail in the R15 system. The terminal is inserted into the designated modules of the rail and mechanically fixed. The electrical connection is established via the metallic contact surface, with the conductor or round bar placed into the designated opening and tightened. Installation requires no additional tools or components, as the terminal itself provides the necessary fastening and connection.

The RK 95 PAS series terminal offers high reliability and longevity in operation. The use of galvanised steel ensures long-term corrosion protection, while the design guarantees a stable and durable electrical connection. The terminal is suitable for use in various applications, including industrial facilities, commercial buildings, and outdoor environments. Compliance with DIN EN 62561-1 ensures that the component meets required safety standards and is approved for use in electrical installations.

General
MaterialSt/gal Zn
Modules2
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 563013, EAN: 4013364027756

Questions & answers

What is the delivery time of DEHN 563013 RK95PAS series terminal 16–95 mm² for PAS St/gal Zn?

The article DEHN 563013 RK95PAS series terminal 16–95 mm² for PAS St/gal Zn is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 563013 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 563013 RK95PAS series terminal 16–95 mm² for PAS St/gal Zn always at the best possible price. We can give you a discount of 2% on DEHN 563013 RK95PAS series terminal 16–95 mm² for PAS St/gal Zn if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of DEHN 563013 RK95PAS series terminal 16–95 mm² for PAS St/gal Zn we can offer you a price of 3,39 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
