DEHN 540900 SPK25BRSAQ425V2A tension head for tension band 25x0.3 mm clamp 2x4–25 mm²

Your rating:
Average rating
product review for DEHN 540900 SPK25BRSAQ425V2A tension head for tension band 25x0.3 mm clamp 2x4–25 mm²
( 4.4 / 5 ) 13 ratings

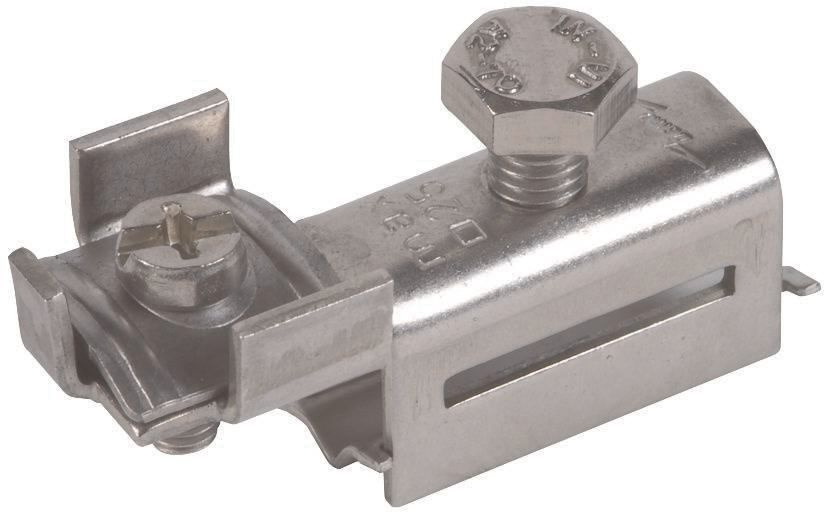

DEHN 540900
This image may differ from the desired article.
DEHN 540900DEHN 540900
7,89 EUR
( 9,39 EUR incl. VAT )
≈ £6.60  |  ≈ $8.67
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x DEHN 540900 SPK25BRSAQ425V2A tension head for tension band 25x0.3 mm clamp 2x4–25 mm²
Datasheet:file_download Download
Lieske Part No.:400656
Mfg Part No: 540900
UPC/EAN: 4013364076532
Weight:0.055 kg
Type:SPK 25 BRS AQ4 25 V2A
Graduated prices net
From piecesPrice per pieces
257,42 EUR
506,94 EUR
1006,47 EUR
2506,00 EUR

Product information for DEHN 540900:

The DEHN earthing strap pipe clamp type SPK 25 BRS AQ4 25 V2A (manufacturer's number 540900) is a component for integrating pipes into the protective and functional equipotential bonding in accordance with DIN VDE 0100-410/540. It serves to securely connect metallic pipe lines with earthing or equipotential bonding conductors in electrical installations. The material is NIRO (V2A), a stainless steel suitable for outdoor use and resistant to corrosive influences.

Applications

The clamp is used in electrical installations where a reliable connection between metallic conduits and the earthing system is required. This includes, for example, connecting water, gas, or heating pipes to the equipotential bonding system in buildings. The application is particularly relevant in electrical installation work, compliance with VDE standards, and implementation of lightning protection measures. The clamp is designed for outdoor use, making it suitable for installations on facades, outdoor facilities, or industrial plants.

Functions and Equipment in Detail

The clamp features a two-conductor connection, allowing two conductors with a cross-section of 4 to 25 mm² to be connected. The through-wiring design enables the conductor to pass through the clamp without requiring interruption. The screws are also made of NIRO and have dimensions M8 x 20 mm (d i) and M6 x 16 mm (d m), ensuring a secure and durable connection.

Technology Explained Simply

The lightning current-carrying capacity of the clamp is defined according to the standard specifications, with the exact classification detailed in the test certificate. The clamp complies with the requirements of DIN EN 62561-1, which applies to earthing and equipotential bonding systems. The use of NIRO as the material ensures high corrosion resistance, especially in damp or saline environments. The continuously adjustable strap connection allows for flexible installation on pipes of various diameters.

Compatibility and Accessories

The clamp is specifically designed for use with the endless strap 25 x 0.3 mm (article number 540 901). This combination enables flexible and durable fastening to metallic pipes. The clamp is not intended for use without the strap and must be combined with the appropriate strap to fulfill its function. The connection cross-sections of 4 to 25 mm² make it compatible with a wide range of conductors commonly used in electrical installations.

Installation and Mounting

Mounting is performed by attaching the clamp to the pipe to be connected, with the strap pulled over the clamp and tensioned using the tension head. The screws are then tightened to secure the connection. The through-wiring design allows the earthing conductor to pass through the clamp without requiring an additional connection. Installation is typically carried out by qualified professionals in the electrical installation sector, who take into account VDE standards and equipotential bonding requirements.

Advantages in Operation

The clamp provides a reliable and durable connection between pipe lines and the earthing system. The use of NIRO ensures a long service life, even under the influence of moisture or salt. The continuously adjustable strap connection allows flexible adaptation to different pipe diameters. Compliance with DIN EN 62561-1 ensures conformity with applicable safety standards. The clamp is suitable for outdoor use, making it applicable to a wide range of industrial and construction applications.

General
MaterialStSt
Connection4-25 mm²
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 540900, EAN: 4013364076532

Questions & answers

What is the delivery time of DEHN 540900 SPK25BRSAQ425V2A tension head for tension band 25x0.3 mm clamp 2x4–25 mm²?

The article DEHN 540900 SPK25BRSAQ425V2A tension head for tension band 25x0.3 mm clamp 2x4–25 mm² is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 540900 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 540900 SPK25BRSAQ425V2A tension head for tension band 25x0.3 mm clamp 2x4–25 mm² always at the best possible price. We can give you a discount of 2% on DEHN 540900 SPK25BRSAQ425V2A tension head for tension band 25x0.3 mm clamp 2x4–25 mm² if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 540900 SPK25BRSAQ425V2A tension head for tension band 25x0.3 mm clamp 2x4–25 mm² we can offer you a price of 7,42 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
