DEHN 540250 UEK8.10AQ450HKSM8V2A UNI earthing terminal for Rd 8-10 mm

Your rating:
Average rating
product review for DEHN 540250 UEK8.10AQ450HKSM8V2A UNI earthing terminal for Rd 8-10 mm
( 4.3 / 5 ) 9 ratings
DEHN 540250

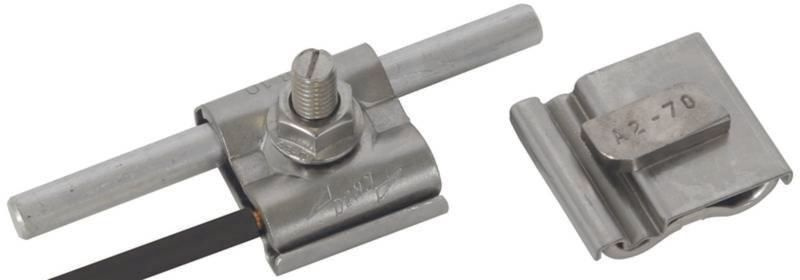

This image may differ from the desired article.
DEHN 540250DEHN 540250DEHN 540250DEHN 540250
9,31 EUR
( 11,08 EUR incl. VAT )
≈ £7.79  |  ≈ $10.23
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x DEHN 540250 UEK8.10AQ450HKSM8V2A UNI earthing terminal for Rd 8-10 mm
Datasheet:file_download Download
Lieske Part No.:550576
Mfg Part No: 540250
UPC/EAN: 4013364138650
Weight:0.06 kg
Type:UEK 8.10 AQ4 50 HKSM8 V2A
Graduated prices net
From piecesPrice per pieces
258,75 EUR
508,19 EUR
1007,63 EUR
2507,08 EUR

Product information for DEHN 540250:

The DEHN UNI earthing clamp type UEK 8.10 AQ4 50 HKSM8 V2A is a specific component for integrating mounting systems, for example from photovoltaic installations, into the functional equipotential bonding and functional earthing as well as into the lightning protection equipotential bonding. The clamp ensures a secure and corrosion-free connection of different materials, such as copper, aluminium, steel/zinc and NIRO, with aluminium mounting systems. This is achieved by a contact plate (intermediate element) made of NIRO, which prevents the formation of contact corrosion. The clamp is designed according to DIN EN 62561-1 and is suitable for use in electrical installations that must meet the requirements for equipotential bonding and earthing.

Applications
The clamp is primarily intended for integrating mounting systems into photovoltaic installations, where reliable earthing and equipotential bonding are required. It is used to connect the metallic parts of the installation, such as frames or brackets, to the earthing system. The clamp is used in both functional equipotential bonding and lightning protection equipotential bonding, where the conductor colour may be black. The clamp is designed for use in installations complying with the standards DIN EN 62305-3 (VDE 0185-305-3).

Functions and equipment in detail
The clamp features a clamping range for round conductors with a diameter of 8 to 10 mm and enables the connection of single- and multi-strand conductors with a cross-section of 4 to 50 mm². The fastening is done using a hammerhead screw M8 x 30 mm made of NIRO, secured with a lock nut (SW 13 mm). The double lug design allows for through-wiring, enabling profiles to be easily and quickly connected to each other. The materials of the clamp, as well as the screw and nut, are made of NIRO (stainless steel V2A), ensuring high corrosion resistance.

Technology explained simply
The use of a contact plate made of NIRO ensures that different metallic materials, such as copper or aluminium, can be connected without electrochemical reactions. This prevents the formation of contact corrosion, which could lead to deterioration of electrical conductivity and increased resistance. The hammerhead screw with lock nut ensures a secure and durable connection that remains stable even under mechanical stress. The double lug design enables efficient wiring, allowing multiple profiles to be connected in a line without requiring additional connecting pieces.

Compatibility and accessories
The clamp is compatible with aluminium mounting systems, as commonly used in photovoltaic installations. The connection is made via the NIRO contact plate, which provides galvanic separation between the different materials. The clamp is designed for use in installations complying with the standards DIN EN 62561-1 and DIN EN 62305-3.

Installation and mounting
Mounting is done by screwing in the hammerhead screw M8 x 30 mm into the mounting system, with the lock nut securing the connection. The conductor is inserted into the clamping area (8–10 mm) and tightened with the screw. The double lug design allows multiple profiles to be connected in a line, making the installation more efficient. The clamp is intended for use in electrical installations that meet the requirements for earthing and equipotential bonding.

Advantages in operation
The clamp provides a reliable and corrosion-free connection between different materials, ensuring long-term stability of the electrical connection. The double lug design reduces installation time and simplifies wiring. The use of NIRO as the material for the clamp, screw, and nut ensures high corrosion resistance, which is particularly advantageous in humid or aggressive environments. The clamp is designed for use in installations complying with the standards DIN EN 62561-1 and DIN EN 62305-3, ensuring high safety and reliability.

General
Material of clampStSt
Clamping range Rd8-10 mm
Connection (solid / stranded)4-50 mm²
Screwhammer-head bolt M8 x 30 mm
Self-locking nutwidth across flats 13 mm
Material of screw / nutStSt
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 540250, EAN: 4013364138650

Questions & answers

What is the delivery time of DEHN 540250 UEK8.10AQ450HKSM8V2A UNI earthing terminal for Rd 8-10 mm?

The article DEHN 540250 UEK8.10AQ450HKSM8V2A UNI earthing terminal for Rd 8-10 mm is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 540250 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 540250 UEK8.10AQ450HKSM8V2A UNI earthing terminal for Rd 8-10 mm always at the best possible price. We can give you a discount of 2% on DEHN 540250 UEK8.10AQ450HKSM8V2A UNI earthing terminal for Rd 8-10 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 540250 UEK8.10AQ450HKSM8V2A UNI earthing terminal for Rd 8-10 mm we can offer you a price of 8,75 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
