DEHN 478129 AK ZS 8.10 FL30 GB M10×60 V4A connection clamp for earthing fixed point

Your rating:
Average rating
product review for DEHN 478129 AK ZS 8.10 FL30 GB M10×60 V4A connection clamp for earthing fixed point
( 4.4 / 5 ) 23 ratings
DEHN 478129

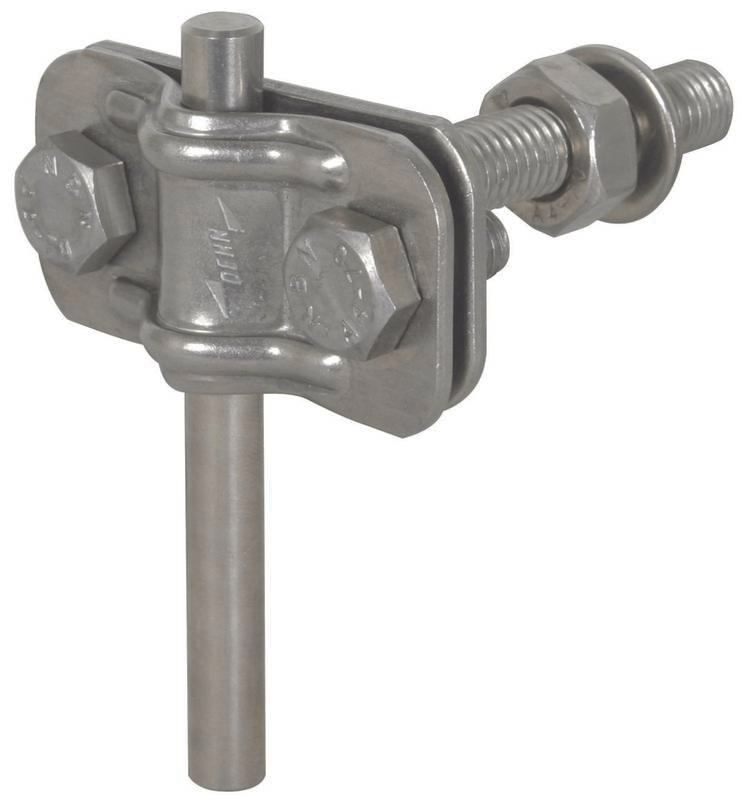

This image may differ from the desired article.
30,02 EUR
( 35,72 EUR incl. VAT )
≈ £25.13  |  ≈ $32.99
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 478129 AK ZS 8.10 FL30 GB M10×60 V4A connection clamp for earthing fixed point
Datasheet:file_download Download
Lieske Part No.:559711
Mfg Part No: 478129
UPC/EAN: 4013364118508
Weight:0.14 kg
Type:AK ZS 8.10 FL30 GBM10X60 V4A
Graduated prices net
From piecesPrice per pieces
1028,22 EUR
2526,42 EUR
5024,62 EUR
7522,82 EUR

Product information for DEHN 478129:

The DEHN connection terminal type AK ZS 8.10 FL30 GBM10X60 V4A is a component specifically developed for earthing systems to ensure a safe and durable connection between round and flat conductors and earthing fixed points. The terminal is designed for mounting on fixed points with thread M10 or M12 and enables a reliable electrical connection in the field of installation technology. It is particularly suitable for use in installations where stable earthing is required, such as in industrial electrical systems, building protection systems, or during the installation of lightning protection systems.

Applications

The connection terminal is primarily used in the field of electrical earthing, where round conductors with a diameter of 8 to 10 mm or flat conductors with a width of 30 mm must be connected to earthing fixed points. It is suitable for mounting on the front and rear side of the earthing fixed point, and mounting without a connection shaft — for example, when using flat strip — is possible. This expands the range of applications, especially in complex installation situations where flexible fastening is required.

Functions and Equipment in Detail

The terminal features a threaded bolt that is screwed into the M10 thread of the earthing fixed point. The design is lightweight, which facilitates handling and installation. The terminal is designed for connecting round and flat conductors, with maximum cross-sections of 8 to 10 mm for round conductors and 30 mm for flat conductors. The construction ensures a secure and durable electrical connection that meets the requirements in the field of earthing.

Technology Explained Simply

The use of threaded bolts enables a mechanically stable fastening that does not loosen under load from vibrations or mechanical stress. The terminal is designed to function even when mounted on the rear side of the earthing fixed point without an additional connection shaft, which is advantageous when installing flat strips. The material execution in V4A (stainless steel) ensures high corrosion resistance, extending the service life of the terminal in damp or aggressive environments.

Compatibility and Accessories

The connection terminal is specifically designed for earthing fixed points with thread M10 or M12. It is therefore compatible with standard earthing fixed points commonly used in electrical installation. The terminal is designed for connecting round conductors with a diameter range of 8 to 10 mm and flat conductors with a width of 30 mm.

Mounting and Installation

Installation is carried out by screwing the threaded bolt into the M10 or M12 thread of the earthing fixed point. The terminal is positioned so that the conductor is securely placed into the terminal opening and held firmly by the mechanical tension of the bolt. Mounting can be performed on both the front and rear side of the fixed point, with no connection shaft required when mounting on the rear side. The use of V4A material facilitates installation in environments with increased corrosion risk.

Advantages in Operation

The terminal provides a reliable and durable electrical connection that remains stable even under mechanical load. The use of stainless steel (V4A) ensures high corrosion resistance, increasing the service life of the terminal. The lightweight design facilitates handling and installation, especially in tight or hard-to-reach installation situations. Compatibility with various conductor cross-sections (round and flat conductors) increases flexibility in planning and execution of earthing systems.

General
Connection threadM10
Compatibility with round conductor8-10 mm
Flat cable compatibility30 mm
MaterialV4A
Applicationgrounding anchor points
Mounting positionfront and rear side
Modellight
Material of clampStSt (V4A)
Clamping range Rd / Fl8-10 / 30 mm
Clamping range (stranded / cable)35-95 mm²
Dimensions58 x 30 x 2.5 mm
StandardEN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)2.7 kA


Product data sheet
Datasheet for DEHN 478129, EAN: 4013364118508

Questions & answers

What is the delivery time of DEHN 478129 AK ZS 8.10 FL30 GB M10×60 V4A connection clamp for earthing fixed point?

The article DEHN 478129 AK ZS 8.10 FL30 GB M10×60 V4A connection clamp for earthing fixed point is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 478129 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 478129 AK ZS 8.10 FL30 GB M10×60 V4A connection clamp for earthing fixed point always at the best possible price. We can give you a discount of 2% on DEHN 478129 AK ZS 8.10 FL30 GB M10×60 V4A connection clamp for earthing fixed point if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of DEHN 478129 AK ZS 8.10 FL30 GB M10×60 V4A connection clamp for earthing fixed point we can offer you a price of 28,22 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
