DEHN 472499 PAS EX FL connection set Fl 30/40 mm for PA rail EX area Zone

Your rating:
Average rating
product review for DEHN 472499 PAS EX FL connection set Fl 30/40 mm for PA rail EX area Zone
( 4.3 / 5 ) 4 ratings
DEHN 472499
This image may differ from the desired article.
DEHN 472499DEHN 472499
56,05 EUR
( 66,70 EUR incl. VAT )
≈ £46.91  |  ≈ $61.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 472499 PAS EX FL connection set Fl 30/40 mm for PA rail EX area Zone
Datasheet:file_download Download
Lieske Part No.:1927376
Mfg Part No: 472499
UPC/EAN: 4013364470514
Weight:0.386 kg
Type:PAS EX FL
Graduated prices net
From piecesPrice per pieces
653,95 EUR
1251,85 EUR
2449,74 EUR
3647,64 EUR

Product information for DEHN 472499:

The product PAS EX FL by DEHN, manufacturer number 472499, is a connection set for integrating metallic conductors and cables into spark-free Ex equipotential bonding rails. It is designed for integration into lightning protection equipotential bonding systems in accordance with VDE 0185-305-3 (IEC 62305-3) as well as protection and functional equipotential bonding systems according to DIN VDE 0100 Part 410/540. The set is specifically designed for use in explosive atmospheres, particularly in Ex Zones 1 and 2 (gases, vapours, mists) and Ex Zones 21 and 22 (dusts), and complies with Explosion Group IIC with safety factor 1 according to CLC 50703-2. The temperature class T4 (maximum surface temperature 135 °C) and the standard DIN EN 62561-1 (VDE 0185-561-1) are also fulfilled. The lightning current carrying capacity class H (100 kA) ensures the required performance under lightning surge currents. The screw locking against self-loosening complies with the requirements of VDE 0185-305-3 Addendum 2. The product is approved for both indoor and outdoor use.

Applications

The PAS EX FL connection set is used in industrial facilities where explosive gases, vapours, mists or dusts are handled. It is intended for connecting flat conductors to the equipotential bonding rails PAS EX 11AP M10 V2A and PAS EX 7AP M10 V2A. The application is within lightning protection and equipotential bonding technology, to divert electrical potentials and thus minimise the risk of sparking or electrical overvoltages. Spark-free operation is essential to avoid creating ignition sources in hazardous areas.

Functions and Equipment in Detail

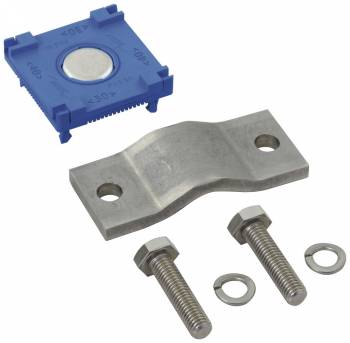

The set consists of screws with spring washers, a washer, and an adapter housing. The screws are made of NIRO (V4A, material number 1.4301/1.4303), have a diameter of M10 and a length of 40 mm. The spring washers and the washer are also made of NIRO. The adapter housing is made of halogen-free polyamide in blue colour and is UV-stabilised, enabling long-term use outdoors. The construction ensures a secure and durable connection between the flat conductor and the equipotential bonding rail.

Technology Explained Simply

Spark-free operation is achieved through special construction and material selection. At a lightning surge current of 100 kA (Class H), the device remains spark-free, meaning no sparks are generated that could trigger an explosion. For NIRO materials (V4A), the lightning surge current is 75 kA (2HExIIC) and 100 kA (H), while for St/tZn materials it is 100 kA (1HExIIC). The maximum short-circuit current withstand capability is 750 A (AC/DC, 5 s) for NIRO and 1500 A for St/tZn. The surface temperature must not exceed 135 °C, corresponding to temperature class T4. These values are critical for safety in explosive atmospheres.

Compatibility and Accessories

The connection set is specifically developed for use with the equipotential bonding rails PAS EX 11AP M10 V2A and PAS EX 7AP M10 V2A. It enables the connection of flat conductors with cross-sections of 30x3.5 mm and 40x5 mm. Compatibility is ensured by the specific construction and materials used. Spark-free operation is only guaranteed when used with the specified PAS EX rails.

Installation and Mounting

Mounting is performed via screw connection using the designated M10 x 40 mm screws, which are equipped with spring washers. The screw locking prevents self-loosening, which is particularly important under vibration or mechanical stress. Installation is carried out on the equipotential bonding rail, where the flat conductor is securely fixed in the adapter housing. The connection must be firm and durable to ensure electrical conductivity and safety.

Operational Advantages

The PAS EX FL provides a reliable and safe connection in explosive atmospheres. Spark-free operation and high lightning current carrying capacity (100 kA) protect against dangerous sparks and overvoltages. The use of NIRO materials ensures corrosion resistance, especially in outdoor environments. The UV-stabilised polyamide housing ensures long service life. The screw locking prevents connection loosening, enhancing operational safety. Compliance with standards VDE 0185-305-3 and DIN VDE 0100 Part 410/540 ensures conformity with applicable safety regulations.

General
Screw materialStSt
Spring washer materialStSt
Material of saddle clampStSt
Fl adapter housing materialPolyamide / halogen-free, blue
Screwsd i M10 x 40 mm
Screw typewith spring washer
Lightning impulse current (10/350 µs) StSt (V4A) 30x3.5 mm / 40x5 mm2HExIIC 75kA (non-sparking) T4, H 100 kA
Lightning impulse current (10/350 µs) St/tZn 30x3.5 mm/40x5 mm1HExIIC 100 kA (non-sparking) T4
Max. short-circuit current (AC 50 Hz / DC / 5 s) StSt (V4A) 30x3.5 mm / 40x5 mm750 A / T4
Max. short-circuit current (AC 50 Hz / DC / 5 s) St/tZn 30x3.5 mm / 40x5 mm1500 A / T4
Max. surface temperature T4135 °C


Product data sheet
Datasheet for DEHN 472499, EAN: 4013364470514
