DEHN 472498 PAS EX R connection set Rd 10 mm for PA rail EX area Zone 1/21

Your rating:
Average rating
product review for DEHN 472498 PAS EX R connection set Rd 10 mm for PA rail EX area Zone 1/21
( 5 / 5 ) 4 ratings
DEHN 472498
This image may differ from the desired article.
DEHN 472498DEHN 472498
100,41 EUR
( 119,49 EUR incl. VAT )
≈ £84.04  |  ≈ $110.35
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline

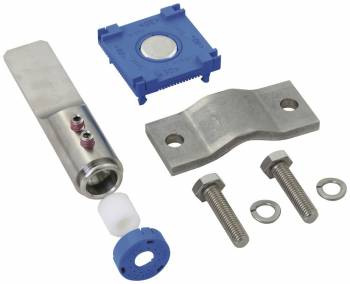

1x DEHN 472498 PAS EX R connection set Rd 10 mm for PA rail EX area Zone 1/21
Datasheet:file_download Download
Lieske Part No.:1927375
Mfg Part No: 472498
UPC/EAN: 4013364476042
Weight:0.756 kg
Type:PAS EX R
Graduated prices net
From piecesPrice per pieces
596,64 EUR
1092,88 EUR
1589,11 EUR
2085,35 EUR

Product information for DEHN 472498:

The PAS EX R connection set from DEHN, type 472498, is earthing material specifically developed for use in explosive atmospheres, enabling the safe integration of metallic conductors and cables into the lightning protection equipotential bonding system. It is designed for use with PAS EX rail models 11AP M10 V2A and 7AP M10 V2A and serves for integration into protective and functional equipotential bonding systems in accordance with DIN VDE 0100 part 410/540 as well as lightning protection equipotential bonding according to VDE 0185-305-3 (IEC 62305-3). The design enables a reliable electrical connection that meets safety requirements in hazardous environments.

Applications
This connection set is approved for use in Ex zones 1 and 2 (gases, vapours, mists) as well as Ex zones 21 and 22 (dusts). It corresponds to explosion group IIC with a safety factor of 1 according to CLC 50703-2. The temperature class T4 ensures that the device can be operated safely even at elevated ambient temperatures. The application is permitted both indoors and outdoors, increasing flexibility for installation in various industrial environments.

Functions and Equipment in Detail
The set enables the secure connection of metallic conductors with a diameter of 10 mm to the PAS EX rails. The screw locking is designed in accordance with VDE 0185-305-3 supplement 2 to prevent self-loosening of the screw connection. This is crucial for long-term stability and reliability of the earthing connection, particularly under mechanical stress or vibrations. The connection is designed to remain stable even under high electrical loads.

Technology Explained Simply
The lightning current carrying capacity class H (100 kA) according to DIN EN 62561-1 (VDE 0185-561-1) means that the connection set is capable of safely conducting high lightning currents without causing damage to the connection or the connected system. This is a key factor for safety in lightning protection. The use of V2A material (stainless steel) in the PAS EX rails, with which the set is compatible, ensures corrosion resistance and long service life, especially in damp or aggressive environments.

Compatibility and Accessories
The connection set is specifically developed for PAS EX rail models 11AP M10 V2A and 7AP M10 V2A. It serves as a connecting element to join metallic conductors with these rails. Use in combination with these rails enables a structured and standard-compliant earthing installation suitable for both lightning protection and protective and functional equipotential bonding.

Mounting and Installation
Mounting is done via screw connection to the PAS EX rail. The screw locking ensures that the connection remains secure even under mechanical stress or vibrations. Installation must follow the requirements of the relevant standards (VDE 0185-305-3, DIN VDE 0100 part 410/540) and requires adherence to prescribed mounting procedures to ensure the electrical connection.

Operational Advantages
The use of the PAS EX R connection set provides a reliable and durable connection that meets safety requirements in explosive atmospheres. Compliance with standards VDE 0185-305-3 and DIN VDE 0100 part 410/540 ensures proper integration into the earthing system. The screw locking prevents unintended loosening of the connection, increasing operational safety. Compatibility with PAS EX rail models 11AP M10 V2A and 7AP M10 V2A enables modular and flexible system design.

General
Connection diameter10 mm
CompatibilityPAS EX 11AP M10 V2A, PAS EX 7AP M10 V2A
Application rangeEx zones 1, 2, 21, 22
Explosion groupIIC
Safety factor1
Temperature classT4
Surge current withstand classH
Lightning current load-bearing capacity100 kA
StandardsVDE 0185-305-3, DIN VDE 0100 Part 410/540, DIN EN 62561-1, CLC 50703-2
Screw lockagainst self-loosening
Area of applicationInterior and exterior area
Screw materialStSt
Spring washer materialStSt
Material of saddle clampStSt
Material No.1.4301 / 1.4303
Screwsd i M10 x 40 mm
Screw typewith spring washer
Max. surface temperature T4135 °C


Product data sheet
Datasheet for DEHN 472498, EAN: 4013364476042

Questions & answers

What is the delivery time of DEHN 472498 PAS EX R connection set Rd 10 mm for PA rail EX area Zone 1/21?

The article DEHN 472498 PAS EX R connection set Rd 10 mm for PA rail EX area Zone 1/21 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 472498 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 472498 PAS EX R connection set Rd 10 mm for PA rail EX area Zone 1/21 always at the best possible price. We can give you a discount of 2% on DEHN 472498 PAS EX R connection set Rd 10 mm for PA rail EX area Zone 1/21 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 472498 PAS EX R connection set Rd 10 mm for PA rail EX area Zone 1/21 we can offer you a price of 96,64 EUR per piece. The more you buy, the cheaper the article will be.
