DEHN 472425 PAS EX 11AP SET PA-rail for EX-area Zone 1/21 2/22 SET with Push-in

Your rating:
Average rating
product review for DEHN 472425 PAS EX 11AP SET PA-rail for EX-area Zone 1/21 2/22 SET with Push-in
( 4.7 / 5 ) 3 ratings

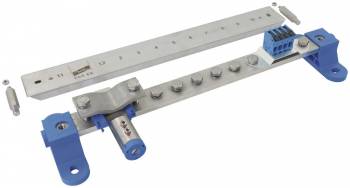

DEHN 472425
This image may differ from the desired article.
DEHN 472425DEHN 472425
480,32 EUR
( 571,58 EUR incl. VAT )
≈ £402.03  |  ≈ $527.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 472425 PAS EX 11AP SET PA-rail for EX-area Zone 1/21 2/22 SET with Push-in
Datasheet:file_download Download
Lieske Part No.:1927367
Mfg Part No: 472425
UPC/EAN: 4013364470606
Weight:3.818 kg
Type:PAS EX 11AP SET
Graduated prices net
From piecesPrice per pieces
4451,50 EUR
8422,68 EUR
12393,86 EUR
16365,04 EUR

Product information for DEHN 472425:

The PAS EX 11AP SET from DEHN is a spark-free Ex equipotential bonding bar specifically designed for use in explosive atmospheres. It is intended for integrating metallic conductors and cables into the lightning protection equipotential bonding in accordance with VDE 0185-305-3 (IEC 62305-3) as well as into the protective and functional equipotential bonding according to DIN VDE 0100 Part 410/540. The bar is approved for use in Ex Zones 1 and 2 (gases, vapours, mists) and Ex Zones 21 and 22 (dusts), and complies with Explosion Group IIC with a safety factor of 1 according to CLC 50703-2. The temperature class T4 (maximum surface temperature 135 °C) and the lightning current carrying capacity class H (100 kA) in accordance with DIN EN 62561-1 (VDE 0185-561-1) ensure reliability under harsh operating conditions. The bar is suitable for use both indoors and outdoors, although the use of the Push-in adapter is permitted exclusively indoors.

Applications
The PAS EX 11AP SET is intended for applications in industrial environments with increased explosion risk, particularly in areas where flammable gases, vapours, mists or dusts may be present. The bar is used to equalize electrical potentials in such areas, thereby preventing the risk of spark formation that could lead to ignition. Spark-free operation has been tested up to 100 kA according to CLC 50703-2, ensuring safety in critical installations. The bar is also suitable for use in installations with high short-circuit currents, as it is designed for maximum short-circuit currents of up to 3.1 kA (with Cu 95 mm²).

Functions and Equipment in Detail
The bar features multiple connection options: one connection for flat conductors (30/40 mm) or round conductors (Ø10 mm), five connections for flexible or rigid conductors (16–95 mm²) using cable lugs (M10 x 20 mm with spring washer), and one Push-in adapter for four conductors with cross-sections of 4–16 mm². The screw locking against self-loosening in accordance with VDE 0185-305-3 Addendum 2 ensures a permanent connection, even under mechanical stress. The materials are selected to meet the requirements in explosive atmospheres: the PA bar is made of NIRO (material no. 1.4301 / 1.4303), and the screws and spring washers are also made of NIRO. The adapter housings and insulators are made of halogen-free polyamide in blue colour and are UV-stabilized, ensuring long-term durability in outdoor environments.

Technology Explained Simply
The bar is designed for diverting high lightning surge currents. During a lightning surge (10/350 µs), it can divert up to 100 kA depending on the connection type, with values varying according to material and conductor cross-section. For example, the lightning surge current for NIRO (V4A) 30x3.5 mm / 40x5 mm is 75 kA (2HExIIC) or 100 kA (H), while for Cu 16–95 mm² it reaches 100 kA (1HExIIC). The nominal surge current ratings (8/20 µs) are 10 kA (for Cu 4–10 mm²) and 15 kA (for Cu 16 mm²) per conductor. The maximum surface temperature of 135 °C (T4) ensures safe operation even in areas with increased thermal stress. The bar is flexibly configurable to realize different connection options.

Compatibility and Accessories
The PAS EX 11AP SET consists of several components: Art. No. 472 421 (PAS EX 11AP M10 V2A), Art. No. 472 498 (PAS EX R), Art. No. 472 497 (PAS EX CC), and Art. No. 472 422 (PAS EX AD 11 AP). These components enable modular adaptation to specific requirements. The use of tinned crimp cable lugs with a nickel barrier layer is recommended to avoid whisker formation in Ex areas. The bar is designed for connecting metallic conductors and cables that are to be integrated into the lightning protection and functional equipotential bonding.

Installation and Mounting
Mounting is carried out using the supplied screws (M10 x 40 mm and M10 x 20 mm with spring washer) on suitable mounting surfaces. The screws are designed to prevent self-loosening, ensuring a durable and secure connection. The dimensions of the bar are 522 x 140 x 101 mm, enabling compact integration into existing installations. The UV-stabilized design ensures high resistance to weather influences in outdoor environments.

Operational Advantages
The PAS EX 11AP SET offers high safety in explosive atmospheres due to its spark-free design and high lightning current carrying capacity. The modular construction allows flexible adaptation to different connection requirements. The use of NIRO materials and UV-stabilized polyamide ensures long service life and high corrosion resistance. The screw locking against self-loosening reduces the risk of loosening during operation, increasing the reliability of the installation. The bar is suitable for indoor and outdoor use, although the Push-in adapter may only be used indoors.

Materials and Standards
The bar complies with standards DIN EN 62561-1 and CLC 50703-2. The materials are selected to meet the requirements in explosive atmospheres: NIRO (material no. 1.4301 / 1.4303) for the bar, screws and spring washers, halogen-free polyamide for the adapter housings and insulators. The mounting plates are made of Cu/gal (Ni)Sn. The UV-stabilized design ensures long-term durability in outdoor environments.

Lightning Current and Short-Circuit Performance
The bar is designed for high lightning surge currents. During a lightning surge (10/350 µs), it can divert up to 100 kA depending on the connection type. The maximum short-circuit current load is up to 3.1 kA (with Cu 95 mm²). The nominal surge current ratings (8/20 µs) are 10 kA (for Cu 4–10 mm²) and 15 kA (for Cu 16 mm²) per conductor. The maximum surface temperature is 135 °C (T4), ensuring safety in areas with increased thermal stress.

Recommendations for Use
To avoid whisker formation in Ex areas, the use of tinned crimp cable lugs with a nickel barrier layer is recommended. The bar is suitable for indoor and outdoor use, although the Push-in adapter may only be used indoors. The screws are secured against self-loosening, ensuring a durable connection. The UV-stabilized design ensures high resistance to weather influences in outdoor environments.

General
Connection cable lug5x flexible/rigid conductor 16–95 mm²
Material equipotential bonding barStSt
Material No.1.4301 / 1.4303
Fl adapter housing materialPolyamide / halogen-free, blue
Material of insulatorPolyamide / halogen-free, blue
Dimensions522 x 140 x 101 mm
Screwsd i M10 x 40 mm / d i M10 x 20 mm
Screw typewith spring washer
Lightning impulse current (10/350 µs) StSt (V4A) 30x3.5 mm / 40x5 mm2HExIIC 75 kA (non-sparking) T4, H 100 kA
Lightning impulse current (10/350 µs) St/tZn 30x3.5 mm/40x5 mm1HExIIC 100 kA (non-sparking) T4
Lightning impulse current (10/350 µs) Cu 16-95 mm21HExIIC 100 kA (non-sparking) T4
Max. short-circuit current (AC 50 Hz / DC / 5 s) StSt (V4A) 30x3.5 mm / 40x5 mm750 A / T4
Max. short-circuit current (AC 50 Hz / DC / 5 s) St/tZn 30x3.5 mm / 40x5 mm1500 A / T4
Max. short-circuit current (AC 50 Hz / DC / 5 s) Cu 16 mm²750 A / T4
Max. short-circuit current (AC 50 Hz / DC / 5 s) Cu 95 mm²3.1 kA / T4
Max. surface temperature T4135 °C
TypeUV-stabilised
StandardIEC 62561-1 / CLC 50703-2


Product data sheet
Datasheet for DEHN 472425, EAN: 4013364470606

Questions & answers

What is the delivery time of DEHN 472425 PAS EX 11AP SET PA-rail for EX-area Zone 1/21 2/22 SET with Push-in?

The article DEHN 472425 PAS EX 11AP SET PA-rail for EX-area Zone 1/21 2/22 SET with Push-in is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 472425 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 472425 PAS EX 11AP SET PA-rail for EX-area Zone 1/21 2/22 SET with Push-in always at the best possible price. We can give you a discount of 2% on DEHN 472425 PAS EX 11AP SET PA-rail for EX-area Zone 1/21 2/22 SET with Push-in if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of DEHN 472425 PAS EX 11AP SET PA-rail for EX-area Zone 1/21 2/22 SET with Push-in we can offer you a price of 451,50 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
