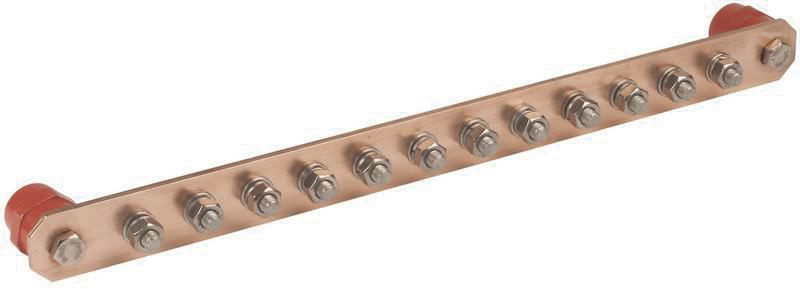

DEHN 472237 PASI12APM10CU PA rail without cover, Cu metal screw M10 for 12 connections

Your rating:
Average rating
product review for DEHN 472237 PASI12APM10CU PA rail without cover, Cu metal screw M10 for 12 connections
( 4.5 / 5 ) 11 ratings
DEHN 472237
This image may differ from the desired article.
DEHN 472237DEHN 472237
148,29 EUR
( 176,47 EUR incl. VAT )
≈ £124.12  |  ≈ $162.97
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x DEHN 472237 PASI12APM10CU PA rail without cover, Cu metal screw M10 for 12 connections
Datasheet:file_download Download
Lieske Part No.:544777
Mfg Part No: 472237
UPC/EAN: 4013364096448
Weight:1.53 kg
Type:PAS I 12AP M10 CU
Graduated prices net
From piecesPrice per pieces
5139,39 EUR
10130,50 EUR
15121,60 EUR
20112,70 EUR

Product information for DEHN 472237:

The DEHN potential equalisation bar for industrial applications, type PAS I 12AP M10 CU, is earthing material for use in industrial electrical installations. It serves for protective and functional potential equalisation in accordance with DIN VDE 0100 part 410/540, as well as for lightning protection potential equalisation according to DIN EN 62305-3 (VDE 0185-305-3). The bar is made of copper (Cu) and features a cross-section of 200 mm², ensuring high electrical conductivity and stability under high currents. Dimensions are 505 mm length, 40 mm width, and 5 mm thickness, allowing integration into standardised installation systems. The bar is equipped with 12 connection points, each realised with an M10 x 25 mm screw, a spring washer, and a nut. The screws and nuts are made of NIRO (stainless steel), providing high corrosion resistance and mechanical strength. The insulators are made of UP (thermosetting material), red lacquered, UV-stabilised, and halogen-free, ensuring durability even under long-term outdoor use or in industrial environments with high stress. The design with spring washers ensures a secure, long-lasting connection and prevents self-loosening of the screws, which is particularly relevant for use in Ex zones 2/22.

Applications include industrial electrical installations where reliable potential equalisation is required to minimise electrical hazards and ensure the functionality of electrical systems. The bar is designed for main potential equalisation and is suitable for both protective measures and connecting functional potentials, for example in machines, plants, or buildings with increased safety requirements. Conformity with DIN EN 62561-1 ensures that the bar meets current technical and safety standards.

Functions and equipment in detail include the 12 connection points, each equipped with an M10 screw and spring washer. The spring washers ensure constant preload, guaranteeing a secure and durable connection. The UP material insulators are marked red, enabling visual distinction from other components, and are UV-resistant, making them suitable for outdoor or sun-exposed areas. The halogen-free composition reduces the formation of toxic gases in case of fire. The bar is suitable for use in Ex zones 2/22, with the construction specifically designed to prevent self-loosening of screws, an important requirement for safety in explosive environments.

Technology explained simply shows that the bar has high electrical conductivity due to its copper construction. The cross-section of 200 mm² allows for the dissipation of high currents, for example during short-circuit events. The short-circuit current is 39 kA for a duration of 1 second and a maximum temperature of 300 °C, describing the thermal and mechanical load capacity of the bar under extreme conditions. The use of stainless steel (NIRO) for screws and nuts ensures high corrosion resistance, which is particularly important in damp or aggressive environments. The UV stabilisation of the insulators prevents material ageing due to sunlight, extending the service life of the bar.

Compatibility and accessories include use in systems complying with DIN EN 62561-1, DIN VDE 0100 part 410/540, and DIN EN 62305-3 (VDE 0185-305-3). The bar is suitable for use in Ex zones 2/22, with the construction specifically designed to prevent self-loosening of screws.

Mounting and installation is carried out using the provided M10 screws, inserted into the pre-drilled holes. The spring washers ensure a secure connection, and the screws must be tightened using appropriate tools. The bar is suitable for mounting on vertical or horizontal surfaces, with the exact mounting technique depending on the specific installation situation. The dimensions allow integration into standard installation systems.

Operational advantages lie in the high reliability and longevity of the bar. The combination of copper, stainless steel, and UV-resistant insulating material ensures high mechanical and chemical durability. The 12 connection points allow flexible connection of multiple cables or devices. The construction with spring washers prevents self-loosening, enhancing safety, especially in critical applications such as Ex zones. Conformity with standards ensures compliance with legal and technical requirements.

The bar is designed for use in industrial plants, buildings, and machines where reliable potential equalisation is required. Technical data are detailed in the shop’s product overview, with the values mentioned here derived from manufacturer specifications and verified. The bar meets requirements for safety, performance, and durability in professional electrical installations.

General
Number of terminals12
MaterialCu
Dimensions (l x w x d1)505 x 40 x 5 mm
Cross section200 mm²
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)39 kA
Screwd i M10 x 25 mm
Material of screw / nutStSt
Typewith spring washer
Material of insulatorUP
Colour of insulatorred ●
StandardEN 62561-1
Insulator UV resistanceyes


Product data sheet
Datasheet for DEHN 472237, EAN: 4013364096448
