DEHN 472217 PASI10APM10CU PA rail without cover CU with screw M10 for 10 connections

Your rating:
Average rating
product review for DEHN 472217 PASI10APM10CU PA rail without cover CU with screw M10 for 10 connections
( 4.6 / 5 ) 10 ratings

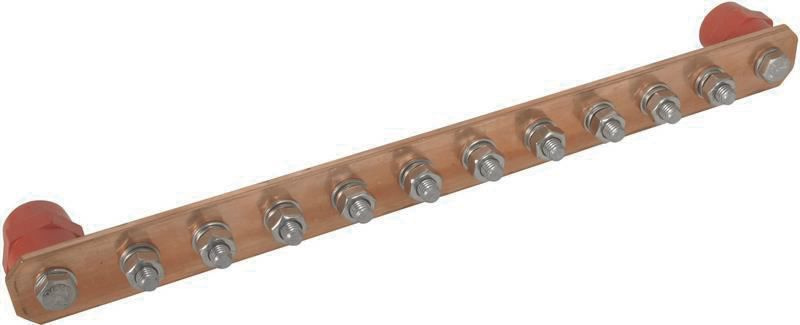

DEHN 472217
This image may differ from the desired article.
DEHN 472217DEHN 472217
131,38 EUR
( 156,34 EUR incl. VAT )
≈ £109.97  |  ≈ $144.39
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 3 pieces
1x DEHN 472217 PASI10APM10CU PA rail without cover CU with screw M10 for 10 connections
Datasheet:file_download Download
Lieske Part No.:246884
Mfg Part No: 472217
UPC/EAN: 4013364090941
Weight:1.35 kg
Type:PAS I 10AP M10 CU
Graduated prices net
From piecesPrice per pieces
5125,47 EUR
10119,56 EUR
15113,64 EUR
20107,73 EUR

Product information for DEHN 472217:

The DEHN potential equalisation bar for industrial applications, type PAS I 10AP M10 CU (article number 472217), is earthing material designed for use in industrial electrical installations. It serves for protective and functional potential equalisation in accordance with DIN VDE 0100 Part 410/540, as well as for lightning protection potential equalisation in accordance with DIN EN 62305-3 (VDE 0185-305-3). The bar is made of copper (Cu) and features a cross-section of 200 mm², ensuring high electrical conductivity and stability under high currents. Its dimensions are 435 mm in length, 40 mm in width, and 5 mm in thickness, allowing integration into standardised installation systems.

Applications include industrial facilities where reliable potential equalisation is required to minimise electrical hazards and ensure the proper function of electrical equipment. The bar is also suitable for use in Ex zones 2/22, with its construction designed to prevent self-loosening of screws, enhancing long-term stability and safety in potentially explosive environments.

Functions and equipment in detail include 10 connection points, each equipped with an M10 x 25 mm screw, a spring washer, and a nut. The screws and nuts are made of NIRO (stainless steel), providing high corrosion resistance and mechanical strength. The insulators are made of UP (thermosetting, red), UV-stabilised and halogen-free, ensuring durable and safe insulation even under prolonged outdoor or industrial exposure.

Technology explained simply indicates that the bar is designed for a short-circuit current of 39 kA (AC 50 Hz / DC) over a duration of 1 second and a maximum temperature of 300 °C. This meets the requirements for thermal and mechanical load capacity in high-performance installations. The standard DIN EN 62561-1 governs the design and testing of potential equalisation bars.

Compatibility and accessories relate to use in systems complying with the mentioned standards. The bar is designed for mounting with standard installation components, with M10 screws enabling universal connections to other earthing and potential equalisation components. The use of spring washers ensures a secure and durable connection, even under vibration.

Mounting and installation typically occurs in electrical switchgear, distributors, or suitable mounting points in industrial facilities. The bar is connected to the respective earthing or potential equalisation conductors using the provided screws and spring washers. The UV resistance of the insulators allows outdoor use, with the red colour providing visual identification of the function.

Operational advantages include high reliability, long service life, and compliance with relevant standards. The combination of copper material, NIRO screws, and UV-resistant insulators ensures a robust and low-maintenance construction. The bar is designed for demanding environments, including Ex zones, and meets safety and functionality requirements in industrial electrical installations.

General
Number of terminals10
MaterialCu
Dimensions (l x w x d1)435 x 40 x 5 mm
Cross section200 mm²
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)39 kA
Screwd i M10 x 25 mm
Material of screw / nutStSt
Typewith spring washer
Material of insulatorUP
Colour of insulatorred ●
StandardEN 62561-1
Insulator UV resistanceyes


Product data sheet
Datasheet for DEHN 472217, EAN: 4013364090941

Questions & answers

What is the delivery time of DEHN 472217 PASI10APM10CU PA rail without cover CU with screw M10 for 10 connections?

The article DEHN 472217 PASI10APM10CU PA rail without cover CU with screw M10 for 10 connections is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 472217 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 472217 PASI10APM10CU PA rail without cover CU with screw M10 for 10 connections always at the best possible price. We can give you a discount of 2% on DEHN 472217 PASI10APM10CU PA rail without cover CU with screw M10 for 10 connections if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 472217 PASI10APM10CU PA rail without cover CU with screw M10 for 10 connections we can offer you a price of 125,47 EUR per piece. The more you buy, the cheaper the article will be.
