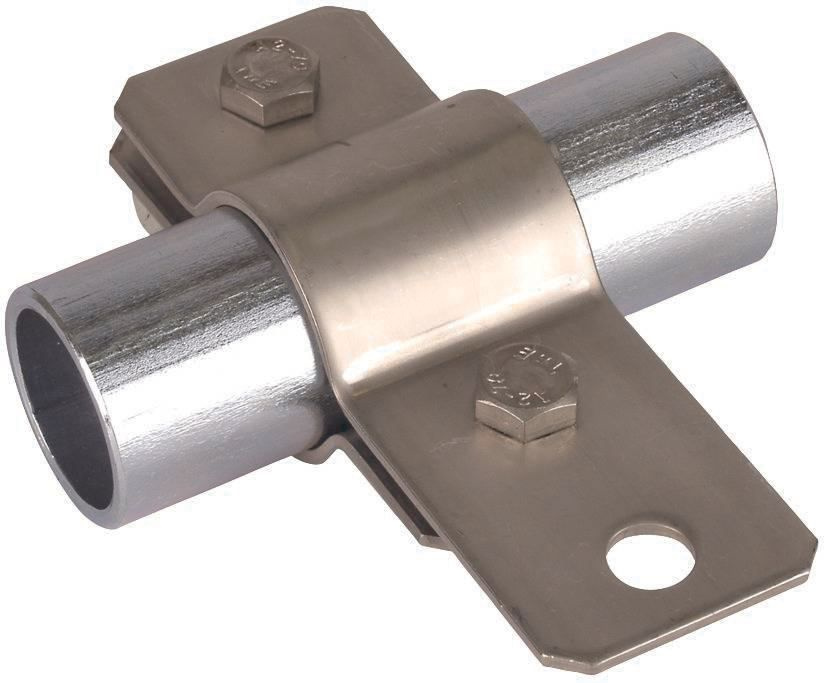

DEHN 410349 ERS42AB11V2A earthing pipe clamp D42.4 mm stainless steel with connection D11 mm

Your rating:
Average rating
product review for DEHN 410349 ERS42AB11V2A earthing pipe clamp D42.4 mm stainless steel with connection D11 mm
( 4.5 / 5 ) 8 ratings
DEHN 410349
This image may differ from the desired article.
DEHN 410349DEHN 410349
14,72 EUR
( 17,52 EUR incl. VAT )
≈ £12.32  |  ≈ $16.18
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 410349 ERS42AB11V2A earthing pipe clamp D42.4 mm stainless steel with connection D11 mm
Datasheet:file_download Download
Lieske Part No.:184559
Mfg Part No: 410349
UPC/EAN: 4013364081604
Weight:0.2778 kg
Type:ERS 42 AB11 V2A
Graduated prices net
From piecesPrice per pieces
1513,84 EUR
3012,95 EUR
7012,07 EUR
10011,19 EUR

Product information for DEHN 410349:

The DEHN earthing pipe clamp type ERS 42 AB11 V2A (manufacturer's number 410349) is a component for the secure integration of pipes into the protective and functional equipotential bonding as well as into the lightning protection equipotential bonding. It serves as a connecting element between metallic pipe lines and earthing conductors to equalize electrical potentials and thus ensure safety in building and industrial operations. The clamp is specifically designed for pipes with an outer diameter of 42 mm (1 1/10,2 cm ( 4 inch )) and is made of stainless steel material, providing high corrosion resistance and longevity even in moist or aggressive environments.

Applications

The earthing pipe clamp is used in the field of electrical installation and lightning protection, particularly for connecting pipe lines (e.g. heating, water, or gas pipes) with the earthing system. It is compliant with DIN EN 62561-1, DIN VDE 0100-410/540 and DIN EN 62305-3 (VDE 0185-305-3), which legitimizes its use in installations according to the applicable standards for electrical installations and lightning protection systems. The clamp is suitable for use in buildings, industrial plants and other technical facilities where reliable equipotential bonding is required.

Functions and equipment in detail

The clamp features a clamping range for pipes with an outer diameter of 42 mm (equivalent to 1 1/10,2 cm ( 4 inch )), where the actual pipe diameter is 42.4 mm. The fastening is done using a screw M10 x 25 mm, also made of stainless steel material, to ensure uniform corrosion resistance. The connection diameter is 11 mm, making the clamp suitable for round conductors with a cross-section of 7 to 10 mm as well as for flat conductors. The dimensions of the clamp are 132.5 mm (length l1) × 21 mm (width r1). The screw size M10 enables a secure and durable connection.

Technology explained simply

The earthing pipe clamp serves as a mechanical and electrical transition between metallic pipe lines and the earthing system. By connecting, it ensures that all metallic parts of a building or plant are at the same electrical potential, minimizing the risk of electric shock and sparking. The use of stainless steel material ensures high mechanical strength and resistance to external influences such as moisture, salt or chemical substances. The lightning current carrying capacity is to be evaluated according to the standards, with the exact classification to be found in the test certificate.

Compatibility and accessories

The clamp is compatible with round conductors in cross-sections of 7 to 10 mm as well as with flat conductors. It can be combined with KS connector systems to realize complex earthing structures. The use is in conjunction with other earthing elements such as equipotential bonding rails, cross or longitudinal connectors, to create a closed earthing system. The compliance with DIN EN 62561-1, DIN VDE 0100-410/540 and DIN EN 62305-3 (VDE 0185-305-3) ensures adherence to legal and technical requirements.

Installation and mounting

The installation is done by attaching the clamp around the pipe to be connected, with the screw M10 x 25 mm being tightened securely. The connection is made through the designated hole with a 11 mm diameter, where the earthing conductor (round or flat conductor) is fastened with a suitable screw and nut. The installation requires no special tools other than a screwdriver or appropriate wrench. The clamp is designed for a permanent, mechanically stable and electrically conductive connection.

Advantages in operation

The use of the DEHN earthing pipe clamp ERS 42 AB11 V2A ensures a reliable and durable connection between pipe lines and the earthing system. The stainless steel version offers high corrosion resistance, extending the service life of the clamp and reducing maintenance work. Compliance with the relevant standards ensures that the clamp can be used in technically demanding applications without violating safety requirements. The clear design and standardized dimensions facilitate planning and installation in the context of electrical and lightning protection projects.

General
ManufacturerDEHN
ModelNIRO
Pipe diameter42,4 mm
Connection diameter11 mm
Screw sizeM10
CompatibilityRundleiter 7-10 mm, Flachleiter
Compliance with standardsDIN EN 62561-1, DIN VDE 0100-410/540, DIN EN 62305-3 (VDE 0185-305-3)
Clamping range for pipe Ø42 mm
MaterialStSt
Dimension (l1 x r1)132.5 x 21 mm
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 410349, EAN: 4013364081604

Questions & answers

What is the delivery time of DEHN 410349 ERS42AB11V2A earthing pipe clamp D42.4 mm stainless steel with connection D11 mm?

The article DEHN 410349 ERS42AB11V2A earthing pipe clamp D42.4 mm stainless steel with connection D11 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 410349 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 410349 ERS42AB11V2A earthing pipe clamp D42.4 mm stainless steel with connection D11 mm always at the best possible price. We can give you a discount of 2% on DEHN 410349 ERS42AB11V2A earthing pipe clamp D42.4 mm stainless steel with connection D11 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of DEHN 410349 ERS42AB11V2A earthing pipe clamp D42.4 mm stainless steel with connection D11 mm we can offer you a price of 13,84 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
