DEHN 372240 AK6.10KBWKBF1835STTZN connection clamp horizontal for 18–35 mm
|
11,21 EUR |
|||||||||||
|
( 13,34 EUR incl. VAT ) ≈ £9.38 | ≈ $12.32 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 164576 | ||||||||||
| Mfg Part No: | 372240 | ||||||||||
| UPC/EAN: | 4013364119147 | ||||||||||
| Weight: | 0.335 kg | ||||||||||
| Type: | AK 6.10 KB W KBF18 35 STTZN | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 372240:

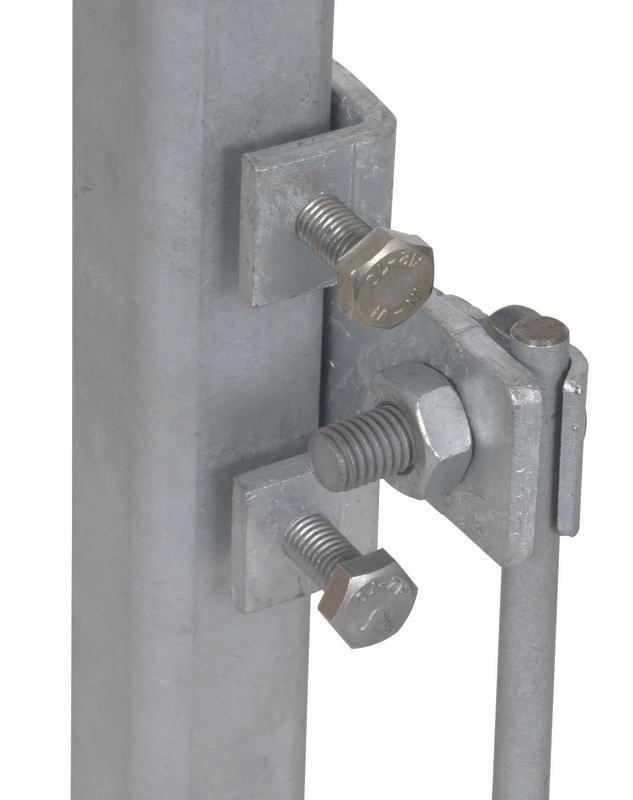

Connection clamp for steel beams
The clamp enables a secure and durable connection to steel profiles with a clamping range of 18 to 35 mm. The horizontal design with a clamping bracket ensures stable fixation, allowing the connection to be made either parallel or perpendicular to the profile direction. This provides flexibility during installation at various points on the steel structure.
Clamping bracket and mounting
The connection is made via a clamping bracket, which is fastened using a screw with a diameter of M8 and a length of 25 mm. The screw and the corresponding nut are made of NIRO material, ensuring high corrosion resistance and long service life even in damp or aggressive environments. The clamp itself is made of steel with zinc coating (St/tZn), which also provides good protection against oxidation.
Lightning current carrying capacity and compliance with standards
The clamp is designed for use in grounding systems that must dissipate lightning currents. The lightning current carrying capacity is specified according to the standard DIN EN 62561-1, with the exact value assignment detailed in the test certificate. This standard ensures that the clamp meets the required electrical and mechanical specifications for use in lightning protection systems.
Application areas
The connection clamp is suitable for use in industrial installations, buildings with steel structures, and areas with increased grounding requirements. It is also approved for use in Ex Zone 2/22, meaning it can be used in areas with increased explosion risk, provided the entire installation complies with the relevant safety requirements.
Technology explained simply
The clamp functions as a mechanical and electrical transition between the steel beam and the grounding conductor. The clamping surface ensures good metallic contact, while the screw connection provides mechanical stability. The use of NIRO material for the screw and nut prevents corrosion, which could otherwise lead to increased transition resistance. The zinc coating of the clamp also protects against oxidation and ensures a long service life.
Compatibility and accessories
The clamp is specifically designed for steel beams with a cross-section of 18 to 35 mm. The connection range for the grounding conductor is 6 to 10 mm, enabling connection to flexible or rigid conductors. The clamp is part of DEHN’s product family of connection clamps for steel beams and can be combined with other components from this family to build complex grounding systems.
Mounting and installation
Installation is carried out by securing the clamp to the steel structure using the M8 screw. The clamping bracket is positioned to allow the grounding conductor to be connected securely and without mechanical stress. The connection direction can be either parallel or perpendicular depending on space constraints, enabling flexible installation at various points on the structure.
Operational advantages
The clamp provides a stable and durable connection that remains reliable even under mechanical stress and in damp environments. The use of corrosion-resistant materials ensures a long service life and minimizes maintenance requirements. Compliance with DIN EN 62561-1 guarantees adherence to the required safety standards for lightning protection systems.
| General | |
| Clamping range | 18-35 mm |
| Material of clamp | St/tZn |
| Clamping range Rd | 6-10 mm |
| Screw | d i M8 x 25 mm |
| Material of screw / nut | StSt |
| Connection with | clamping piece |
| Lightning current carrying capability (10/350 µs) | & *) |
| Standard | EN 62561-1 |
