DEHN 308030 VKAR22F40STBL connection terminal for Rd 6–22 mm / Fl 40 mm

Your rating:
Average rating
product review for DEHN 308030 VKAR22F40STBL connection terminal for Rd 6–22 mm / Fl 40 mm
( 4.8 / 5 ) 17 ratings
DEHN 308030
This image may differ from the desired article.
5,32 EUR
( 6,33 EUR incl. VAT )
≈ £4.45  |  ≈ $5.85
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >100 pieces

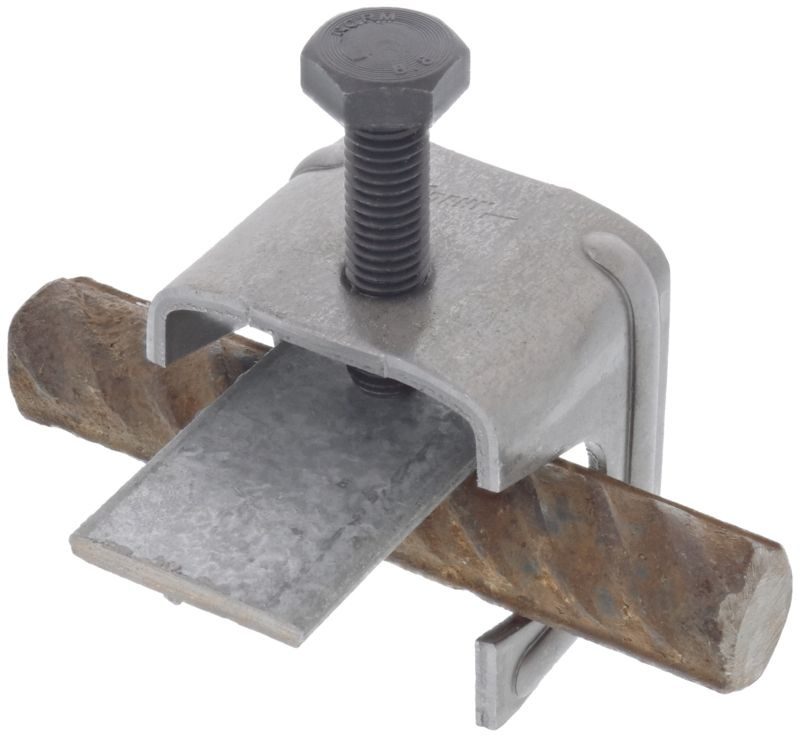

1x DEHN 308030 VKAR22F40STBL connection terminal for Rd 6–22 mm / Fl 40 mm
Datasheet:file_download Download
Lieske Part No.:124887
Mfg Part No: 308030
UPC/EAN: 4013364030749
Weight:0.125 kg
Type:VK A R22 F40 STBL
Graduated prices net
From piecesPrice per pieces
255,00 EUR
504,68 EUR
1004,36 EUR
2504,04 EUR

Product information for DEHN 308030:

The connection clamp VK A R22 F40 STBL from DEHN is a component for secure electrical connection of reinforced concrete mesh or reinforcement with round and flat conductors within earthing and equipotential bonding systems. It complies with the standard DIN EN 62561-1 and is particularly used in building earthing to connect the equipotential bonding conductor or foundation earth electrode with the reinforcement of the foundation slab. The clamp is designed for T- and cross-connections, thus enabling flexible arrangements in construction.

Applications

The clamp is used to connect reinforcement with metallic conductors in concrete construction, particularly in foundation slabs, where the equipotential bonding conductor must be connected to the reinforcement every 2 meters, according to DIN 18014. It is suitable for use in earthing installations that require a reliable and durable electrical connection between reinforcement elements and conductors. The arrangement is either parallel or in cross form, depending on the site requirements.

Functions and Equipment in Detail

The clamp is made of steel in bare finish (St/blank), ensuring high mechanical strength and corrosion resistance under the given operating conditions. The clamping area accommodates round conductors with a diameter of 6 to 22 mm and flat conductors with a cross-section width of 30 to 40 mm. The connection is made via a screw with a diameter of M10 and a length of 40 mm, also made of bare steel. This construction enables a firm, durable connection that remains stable even under mechanical stress.

Technology Explained Simply

The clamp is designed for use in earthing installations that must carry high current levels in the event of a lightning strike or short circuit. The lightning current carrying capacity is defined according to standards, with the exact classification specified in the test certificate. The short-circuit current withstand capability is 1.0 kA for a duration of 1 second and a maximum temperature of 300 °C, ensuring safety under extreme electrical loads. The connection is therefore suitable for use in electrical installations with high safety requirements.

Compatibility and Accessories

The clamp is specifically designed for connecting reinforced concrete mesh with round and flat conductors. It is compatible with standard reinforcements and conductors within the specified cross-section range. It is used in conjunction with the appropriate conductors and reinforcements as specified in the construction project.

Installation and Mounting

Mounting is done via screw connection, with the M10 x 40 mm screw inserted into the designated holes in the clamp. The reinforcement and conductor are placed into the clamp and securely fastened by tightening the screw. The arrangement is made in T- or cross-form according to requirements. Mounting requires no additional tools other than a suitable screwdriver or wrench.

Advantages in Operation

The clamp provides a reliable, durable connection that meets the requirements of DIN EN 62561-1. The use of bare steel ensures high mechanical strength and sufficient corrosion resistance under the given operating conditions. The clamp is easy to install and allows flexible T- or cross-form arrangements, simplifying the planning and execution of earthing installations. The short-circuit current withstand capability of 1.0 kA ensures functionality even under extreme electrical loads.

General
MaterialSt/bare
Clamping range Rd / Fl(+) 6-22 / 30-40 mm
Screwd i M10 x 40 mm
Lightning current carrying capability (10/350 µs)= *)
StandardEN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)1.0 kA


Product data sheet
Datasheet for DEHN 308030, EAN: 4013364030749

Questions & answers

What is the delivery time of DEHN 308030 VKAR22F40STBL connection terminal for Rd 6–22 mm / Fl 40 mm?

The article DEHN 308030 VKAR22F40STBL connection terminal for Rd 6–22 mm / Fl 40 mm is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 308030 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 308030 VKAR22F40STBL connection terminal for Rd 6–22 mm / Fl 40 mm always at the best possible price. We can give you a discount of 2% on DEHN 308030 VKAR22F40STBL connection terminal for Rd 6–22 mm / Fl 40 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 308030 VKAR22F40STBL connection terminal for Rd 6–22 mm / Fl 40 mm we can offer you a price of 5,00 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
