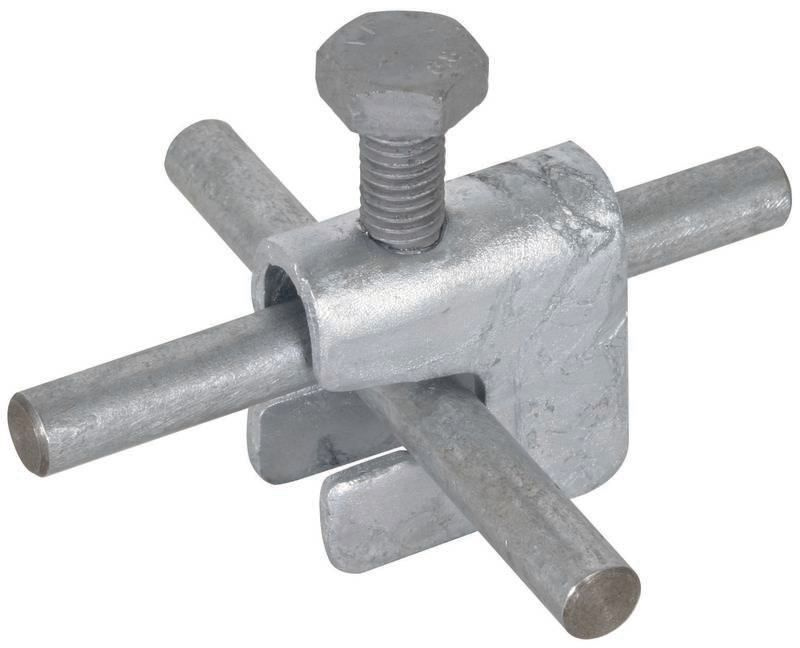

DEHN 308025 VKAUNIST connection terminal for round 6-10/6-10 mm/flat 30 mm

Your rating:
Average rating
product review for DEHN 308025 VKAUNIST connection terminal for round 6-10/6-10 mm/flat 30 mm
( 4.4 / 5 ) 41 ratings
DEHN 308025
This image may differ from the desired article.
5,32 EUR
( 6,33 EUR incl. VAT )
≈ £4.45  |  ≈ $5.85
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >100 pieces
1x DEHN 308025 VKAUNIST connection terminal for round 6-10/6-10 mm/flat 30 mm
Datasheet:file_download Download
Lieske Part No.:434250
Mfg Part No: 308025
UPC/EAN: 4013364035881
Weight:0.1 kg
Type:VK A UNI ST
Graduated prices net
From piecesPrice per pieces
255,00 EUR
504,68 EUR
1004,36 EUR
2504,04 EUR

Product information for DEHN 308025:

The connection clamp VK A UNI ST from DEHN is a component for earthing systems, specifically designed for secure and durable connection of reinforced concrete mats or reinforcements with round conductors or flat conductors. The product complies with the standard DIN EN 62561-1 and is used in electrical installations for creating equipotential bonding connections, particularly in connection with foundation earth electrodes and the connection of reinforcement grids with earthing conductors. The clamp is designed for various arrangements, including T-, cross- and parallel connections, where arrangement (II) is for parallel and (+) for cross connections.

Applications

The connection clamp is used in construction and electrical installations where a firm electrical connection between reinforcement elements and earthing conductors is required. According to DIN 18014, the equipotential bonding conductor or foundation earth electrode must be connected to the reinforcement of the foundation slab every 2 meters to ensure effective earthing and safe equipotential bonding. Therefore, the clamp is a central component in building earthing, especially in new constructions and renovation projects.

Functions and Equipment in Detail

The clamp enables the connection of round conductors (Rd) with a diameter of 6 to 10 mm, as well as flat conductors (Fl) with a width of 30 mm. The combination Rd/Rd (6–10 mm) is intended for cross connections (arrangement +), while Rd/Fl (6–10 mm / 30 mm) is also used in cross arrangement. For parallel connections (arrangement II), the combination Fl/Fl (30 mm / 30 mm) is intended. The clamp is fastened using a screw with dimensions M10 x 25 mm, made of steel with zinc coating (St/tZn). The material of the clamp itself is also St/tZn, ensuring good corrosion resistance and mechanical strength.

Technology Explained Simply

The connection clamp is designed to create a firm, durable electrical connection between metallic components necessary for earthing and equipotential bonding. The clamp safely conducts electrical current, even under high short-circuit currents. The specified short-circuit current is 9 kA for a duration of 1 second and a maximum temperature of 300 °C, demonstrating the clamp’s load capacity under extreme conditions. The connection is achieved through mechanical clamping, where the screw generates the necessary pressure to ensure a low transition resistance.

Compatibility and Accessories

The clamp is compatible with round conductors in the diameter range of 6 to 10 mm and flat conductors with a width of 30 mm. The arrangement of the connection (T-, cross- or parallel connection) is enabled by the specific design of the clamp. The connection is made directly between reinforcement elements and earthing conductors, without requiring additional components. The clamp is part of DEHN’s product family “Connection clamps for reinforcements” and can be used in combination with other components of this family, such as pipe clamps or equipotential bonding rails, if provided in the system.

Installation and Mounting

Mounting is done by securing the clamp to the conductors to be connected using the supplied screw M10 x 25 mm. The clamp is designed to securely enclose the conductors and ensure a firm connection. Installation typically takes place during concrete work, with the clamp positioned before inserting the reinforcement or conductor.

Advantages in Operation

The connection clamp VK A UNI ST provides a reliable and durable connection that meets the requirements of DIN EN 62561-1. The use of St/tZn as material ensures high corrosion resistance, especially in moist or aggressive environments. The high short-circuit current load capacity of 9 kA secures functionality even under sudden current surges. The clamp is easy to install and allows flexible application in various connection geometries, simplifying the planning and execution of earthing systems. The clamp is designed for use in buildings where safe earthing and effective equipotential bonding are required.

General
MaterialSt/tZn
Clamping range Rd / Rd(+) 6-10 / 6-10 mm
Clamping range Rd / Fl(+) 6-10 / 30 mm
Clamping range Fl / Fl(II) 30 / 30 mm
Screwd i M10 x 25 mm
StandardEN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)9 kA


Product data sheet
Datasheet for DEHN 308025, EAN: 4013364035881

Questions & answers

What is the delivery time of DEHN 308025 VKAUNIST connection terminal for round 6-10/6-10 mm/flat 30 mm?

The article DEHN 308025 VKAUNIST connection terminal for round 6-10/6-10 mm/flat 30 mm is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 308025 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 308025 VKAUNIST connection terminal for round 6-10/6-10 mm/flat 30 mm always at the best possible price. We can give you a discount of 2% on DEHN 308025 VKAUNIST connection terminal for round 6-10/6-10 mm/flat 30 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 308025 VKAUNIST connection terminal for round 6-10/6-10 mm/flat 30 mm we can offer you a price of 5,00 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
