DEHN 274160 LHZS8.10FL20KSKD8X40V2A cable holder NIRO for round wire 8–10 mm

Your rating:
Average rating
product review for DEHN 274160 LHZS8.10FL20KSKD8X40V2A cable holder NIRO for round wire 8–10 mm
( 4.6 / 5 ) 12 ratings

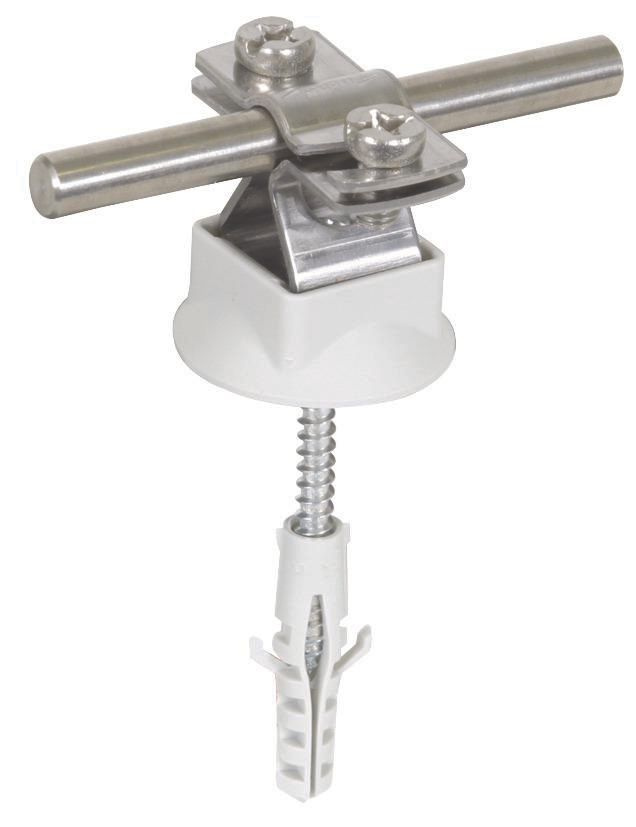

DEHN 274160
This image may differ from the desired article.
DEHN 274160DEHN 274160
5,89 EUR
( 7,01 EUR incl. VAT )
≈ £4.93  |  ≈ $6.47
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >50 pieces
1x DEHN 274160 LHZS8.10FL20KSKD8X40V2A cable holder NIRO for round wire 8–10 mm
Datasheet:file_download Download
Lieske Part No.:124513
Mfg Part No: 274160
UPC/EAN: 4013364123380
Weight:0.04 kg
Type:LH ZS 8.10 FL20 KS KD8X40 V2A
Graduated prices net
From piecesPrice per pieces
255,45 EUR
505,01 EUR
1004,56 EUR
2504,12 EUR

Product information for DEHN 274160:

The DEHNhold cable holder, type LH ZS 8.10 FL20 KS KD8X40 V2A, is a mounting component for round conductors in the field of earthing technology. The manufacturer is DEHN, and the product is specifically designed for secure and permanent cable routing. It is intended for the safe and durable mounting of conductors with a diameter of 8 to 10 mm or a flat conductor width of 20 mm. The holder features a slotted over-clip design, which allows precise adaptation to the conductor geometry and ensures a stable connection. The M8 internal thread enables mounting on various substrates, with the pre-installed screw (ak 5 x 50 mm) and plastic anchor (Ø8 x 40 mm) ready for immediate installation. The material of the cable holder is NIRO, providing high corrosion resistance and mechanical strength. The plastic base is grey and serves as an insulating and protective component between the metal holder and the substrate.

Applications

The cable holder is intended for use in earthing systems, particularly in installations requiring reliable and durable fixation of round conductors. It is suitable for various materials, including aluminium (Al), NIRO, galvanised steel (St/tZn), and copper (Cu). The secure cable routing ensures that the conductor cannot shift or loosen, which is critical for electrical safety and the functionality of the earthing system. Typical applications include industrial, commercial, or public facilities where robust and maintenance-free mounting is required.

Functions and Equipment in Detail

The holder is pre-assembled, which accelerates installation and reduces potential errors. The screw (ak 5 x 50 mm) is made of NIRO, ensuring high corrosion resistance and mechanical strength. The plastic anchor (Ø8 x 40 mm) enables secure mounting in holes or drilled openings in materials such as concrete, masonry, or wood. The height of the cable holder is 20 mm, sufficient to securely fix the conductor without it being inserted too deeply. The cable routing is fixed, meaning the conductor cannot be moved or shifted once installed.

Technology Explained Simply

The slotted over-clip design of the cable holder allows for elastic adaptation to the conductor geometry. The slotting ensures that the holder easily conforms around the conductor, creating a firm but not excessive tension. This prevents shifting or loosening of the conductor, even under mechanical stress. The M8 internal thread allows compatibility with standard screws and anchors, making the installation universal and compatible with common mounting methods. The NIRO material offers high corrosion resistance, which is particularly advantageous in damp or aggressive environments. The pre-installed screw and anchor reduce installation time and minimise error potential during mounting.

Compatibility and Accessories

The cable holder is designed for round conductors with a diameter of 8 to 10 mm and for flat conductors with a width of 20 mm. Compatibility with various materials such as Al, NIRO, St/tZn, and Cu makes it versatile for different applications. Mounting is achieved via the M8 internal thread, with the pre-installed screw (ak 5 x 50 mm) and plastic anchor (Ø8 x 40 mm) ready for immediate use.

Mounting and Installation

Installation involves drilling a hole in the substrate with a diameter matching the anchor (Ø8 mm). The pre-assembled cable holder is then inserted into the hole with the screw and anchor and tightened securely. The screw (ak 5 x 50 mm) is tightened using an appropriate screwdriver or electric screwdriver until the holder is firmly seated in the substrate. The conductor is placed into the slotted over-clip and fixed by the secure routing. The 20 mm height ensures the conductor is not inserted too deeply into the holder, enabling a safe and visible installation.

Operational Advantages

The cable holder provides reliable and durable fixation of round conductors, which is essential for earthing systems. The secure cable routing prevents shifting and loosening, enhancing electrical safety. The use of NIRO as the material ensures high corrosion resistance, extending the product’s service life. The pre-assembled design with screw and anchor reduces installation time and minimises error sources. Compatibility with various materials and conductor geometries makes the holder versatile for different application areas.

Compliance with DIN EN 62561-4 ensures adherence to technical requirements for earthing systems. This standard specifies requirements for electrical conductivity, mechanical strength, and corrosion resistance of earthing components. Compliance with this standard guarantees that the cable holder can be safely and reliably used in earthing systems.

General
Material of conductor holderStSt
Conductor support Rd8-10 mm
Conductor support Fl20 mm
Height of conductor holder20 mm
Thread of conductor holderM8
Plastic basegrey ●
Screwa k 5 x 50 mm
StandardEN 62561-4


Product data sheet
Datasheet for DEHN 274160, EAN: 4013364123380

Questions & answers

What is the delivery time of DEHN 274160 LHZS8.10FL20KSKD8X40V2A cable holder NIRO for round wire 8–10 mm?

The article DEHN 274160 LHZS8.10FL20KSKD8X40V2A cable holder NIRO for round wire 8–10 mm is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 274160 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 274160 LHZS8.10FL20KSKD8X40V2A cable holder NIRO for round wire 8–10 mm always at the best possible price. We can give you a discount of 2% on DEHN 274160 LHZS8.10FL20KSKD8X40V2A cable holder NIRO for round wire 8–10 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 274160 LHZS8.10FL20KSKD8X40V2A cable holder NIRO for round wire 8–10 mm we can offer you a price of 5,45 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
