DEHN 207029 LHDG8H32B7.8V2A cable holder grip NIRO for round 8 mm H32 mm

Your rating:
Average rating
product review for DEHN 207029 LHDG8H32B7.8V2A cable holder grip NIRO for round 8 mm H32 mm
( 4.4 / 5 ) 28 ratings
DEHN 207029
This image may differ from the desired article.
DEHN 207029DEHN 207029
2,75 EUR
( 3,27 EUR incl. VAT )
≈ £2.29  |  ≈ $3.02
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 207029 LHDG8H32B7.8V2A cable holder grip NIRO for round 8 mm H32 mm
Datasheet:file_download Download
Lieske Part No.:915570
Mfg Part No: 207029
UPC/EAN: 4013364042711
Weight:0.024 kg
Type:LH DG 8 H32 B7.8 V2A
Graduated prices net
From piecesPrice per pieces
502,59 EUR
1002,42 EUR
2502,26 EUR
5002,09 EUR

Product information for DEHN 207029:

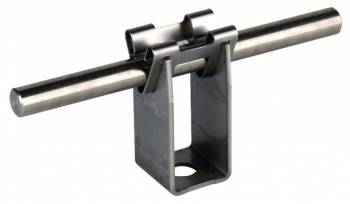

The DEHNgrip cable holder type LH DG 8 H32 B7.8 V2A from DEHN is a screwless holding system made of stainless steel (V2A) for routing round wires with a diameter of 8 mm. The product is specifically designed for simple and quick installation, where the wire is pressed into the holder from above. The mounting height is 32 mm, enabling loose wire guidance, where the wire is not clamped tightly but guided. This design ensures secure fastening without additional tools or screws.

Cable holder made of stainless steel offers high corrosion resistance and is therefore suitable for use in damp or aggressive environments. The use of V2A material ensures long service life and resistance to external influences such as moisture or chemical substances. The mounting height of 32 mm allows sufficient coverage of the wire without the mounting components appearing too high or obtrusive.

Screwless mounting system significantly simplifies installation. The wire is simply pressed into the holder from above, eliminating the need for additional tools or mounting aids. This reduces installation time and minimizes the risk of damage to the wire or holder. The loose wire guidance also allows for some movement, which is beneficial in cases of thermal expansion or mechanical stress.

Round wires with a diameter of 8 mm can be securely and stably positioned in the holder. The holder's bore is 7.8 mm, ensuring a precise fit for the intended wires. The exact alignment of the bore to the wire diameter ensures secure guidance without overly tight or loose fit, securing the holder's function over time.

Applications include electrical installations in industrial, commercial, and outdoor environments where robust and maintenance-free wire fastening is required. Due to the stainless steel material, the holder is particularly suitable for environments with high humidity, such as kitchens, laundry areas, or outdoor use. The loose wire guidance reduces mechanical stress on the wires and prevents breaks or wear at the fastening points.

Functions and equipment in detail include screwless mounting, loose wire guidance, and the use of stainless steel V2A. The mounting height of 32 mm provides sufficient space for the wire and enables clean and orderly routing. Installation is done by simply pressing the wire from above, requiring no additional mounting aids. The material selection ensures high mechanical strength and corrosion resistance.

Technology explained simply shows that the holder requires no screws or bolts, but instead holds the wire securely through a special shape design. The loose guidance means the wire is not tightly clamped, but guided in a channel that accommodates movements and expansions. The V2A material (stainless steel) is resistant to rust and chemical influences, increasing the product's lifespan.

Compatibility and accessories refer to use with round wires of 8 mm diameter. The 7.8 mm bore is precisely matched to this diameter.

Mounting and installation is done by simply pressing the wire from above into the holder. No tools or additional mounting components are required. Installation can be performed quickly and without special skills. The loose wire guidance ensures no excessive tension is applied to the wire.

Operational advantages include easy mounting, high corrosion resistance, and long service life. The loose wire guidance reduces mechanical stress and extends the life of the wires. The stainless steel material ensures reliable performance even in demanding environments. The screwless mounting reduces installation time and minimizes error sources during installation.

General
ManufacturerDEHN
MaterialV2A
Height32 mm
Bore hole7,8 mm
Cable diameter8 mm
Mounting methodScrewless
Guide typeloose cable routing
Hole of conductor holderØ7.8 mm
Material of conductor holderStSt
Conductor support Rd8 mm
StandardEN 62561-4


Product data sheet
Datasheet for DEHN 207029, EAN: 4013364042711
