DEHN 123021 FS16102000MDALV2A grounding clamp AL/NIRO clamp D16/10 mm 2 m

Your rating:
Average rating
product review for DEHN 123021 FS16102000MDALV2A grounding clamp AL/NIRO clamp D16/10 mm 2 m
( 4.6 / 5 ) 19 ratings
DEHN 123021
This image may differ from the desired article.
DEHN 123021DEHN 123021DEHN 123021
118,84 EUR
( 141,42 EUR incl. VAT )
≈ £99.47  |  ≈ $130.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 123021 FS16102000MDALV2A grounding clamp AL/NIRO clamp D16/10 mm 2 m
Datasheet:file_download Download
Lieske Part No.:104550
Mfg Part No: 123021
UPC/EAN: 4013364092822
Weight:2.2 kg
Type:FS 16 10 2000 MD AL V2A
Graduated prices net
From piecesPrice per pieces
5111,71 EUR
10104,58 EUR
1597,45 EUR
2090,32 EUR

Product information for DEHN 123021:

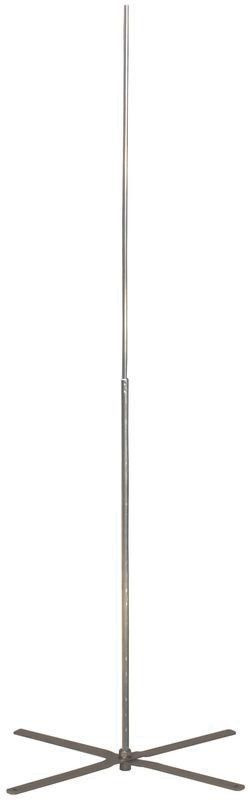

The DEHN air terminal type FS 16 10 2000 MD AL V2A is a specially designed earthing component for metal roofs, intended for lightning protection of roof-mounted structures, skylights, and similar constructions. With a total height of 2000 mm, it serves as an air terminal in the lightning protection system and is mounted at the ends of the roof profile struts. The mounting is achieved via four roof conductor holders, which are installed in holes with a diameter of 11 mm. The roof conductor holders must be selected according to the specific roof profile, for example for round standing seam roofs, to ensure a secure and durable connection. The air terminal is made of aluminium and features a V2A coating, providing high corrosion resistance and longevity even under weather-exposed conditions.

Applications

The air terminal is primarily intended for use on metal roofs, especially in buildings with metallic roof structures, where roof-mounted installations such as ventilation systems, skylights, or antennas exhibit increased susceptibility to lightning strikes. It serves as part of a comprehensive lightning protection system to protect these elements from direct lightning strikes. The installation at the strut ends allows the air terminal to be optimally integrated into the existing roof structure and enables secure conduction of lightning current into the earthing system.

Functions and Equipment in Detail

The air terminal has a length of 2000 mm and is specifically designed for mounting on roof struts. Installation is carried out using four roof conductor holders, which are attached to holes with a diameter of 11 mm. These holders must be selected according to the roof profile to ensure a secure mechanical connection. The use of V2A coating provides high resistance against external influences such as moisture, salt spray, or chemical exposure, extending the component's service life. The aluminium alloy ensures sufficient electrical conductivity for the conduction of lightning currents.

Technology Explained Simply

The air terminal functions as a strike point in the lightning protection system. In the event of a direct lightning strike, the high current is conducted through the air terminal into the earthing system, thereby preventing damage to roof-mounted structures or the building itself. Mounting at the strut ends ensures stable anchoring and minimizes the risk of loosening or displacement. The V2A coating protects the aluminium from corrosion, which is particularly important when the air terminal is used outdoors. The 11 mm hole diameter allows universal adaptation to various roof profile types, provided the appropriate roof conductor holders are used.

Compatibility and Accessories

The air terminal is designed for metal roofs and requires the use of roof conductor holders specifically designed for the respective roof profile (e.g. round standing seam roofs). Compatibility therefore depends on selecting the correct holders to ensure a secure and durable installation. The air terminal itself is intended for use with roof struts featuring holes with a diameter of 11 mm.

Installation and Mounting

Installation is carried out at the ends of the roof profile struts, using holes with a diameter of 11 mm. The four roof conductor holders must be selected and mounted according to the roof profile to ensure a secure fastening. The air terminal is then attached to these holders. Installation should be performed by qualified professionals familiar with lightning protection system regulations.

Operational Advantages

The air terminal provides reliable protection for roof-mounted structures and ensures secure conduction of lightning currents. The use of V2A coating increases service life and resistance to external influences. Mounting at the strut ends ensures a stable installation that remains secure even under wind and weather stress. The universal adaptability to various roof profiles through the selection of appropriate roof conductor holders enables flexible use in different application scenarios.

General
Catch bar length2000 mm
Mounting hole11 mm
Surface coatingV2A
Application rangeMetal roofs
Total length (Ø16 / 10 mm)2000 mm
Max. gust wind speed184 km/h
Profile distance230-520 mm
Fixing[4x] Ø9 mm
Material of braceStSt
Material of air-termination rodAl
StandardEN 62561-(1+2)


Product data sheet
Datasheet for DEHN 123021, EAN: 4013364092822
