D-Link DPE-301GI 1-Port Gigabit PoE+ Injector
|
45,50 EUR |
|
|
( 54,14 EUR incl. VAT ) ≈ £37.95 | ≈ $50.82 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 974134 |
| Mfg Part No: | DPE-301GI |
| UPC/EAN: | 0790069416668 |
| Weight: | 0.456 kg |
| Type: | DPE-301GI |
Product information for D-Link DPE-301GI:

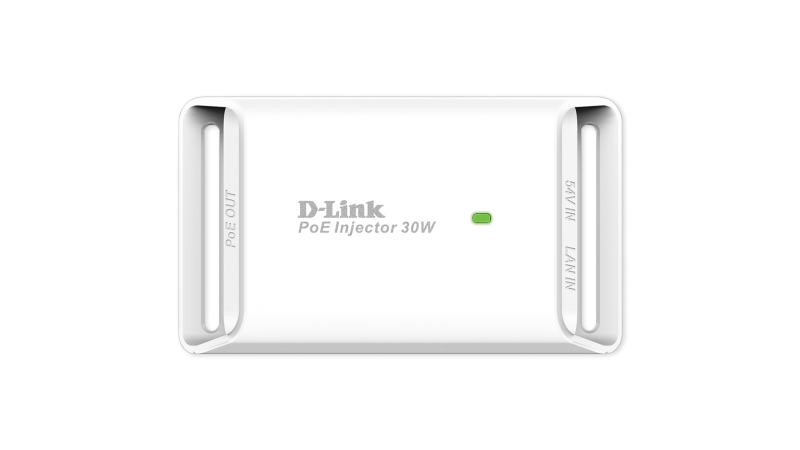

The D-Link DPE-301GI is a 1-Port Gigabit PoE+ injector that transmits data and electrical power over a single Ethernet cable to PoE-enabled end devices such as network cameras or WLAN access points. The device enables the installation of PoE devices at locations where no power outlet is available, by combining power supply and network connection over the network cable. Power supply is provided according to the IEEE 802.3at (PoE+) standard, delivering a maximum power of 30 watts. Data transmission occurs via Gigabit Ethernet at speeds of 10, 100, or 1000 Mbit/s, with cabling technology supporting 10/100/1000. The device is compatible with network standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3u.
Applications
The DPE-301GI is suitable for powering PoE-enabled devices indoors, particularly in areas where no direct power supply is available, such as ceilings, corridors, or entrances. The flexible wall-mounting option allows for easy installation at various locations. The Plug-and-Play function enables commissioning without additional software or configuration, simplifying installation especially for users with limited technical knowledge.
Functions and Equipment in Detail

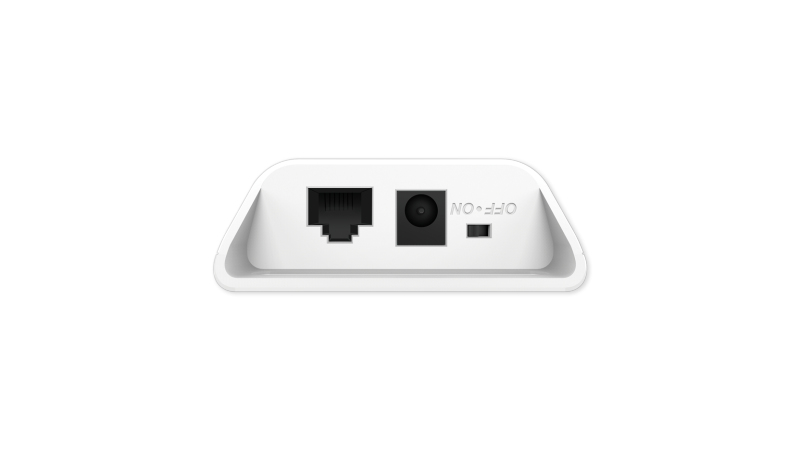

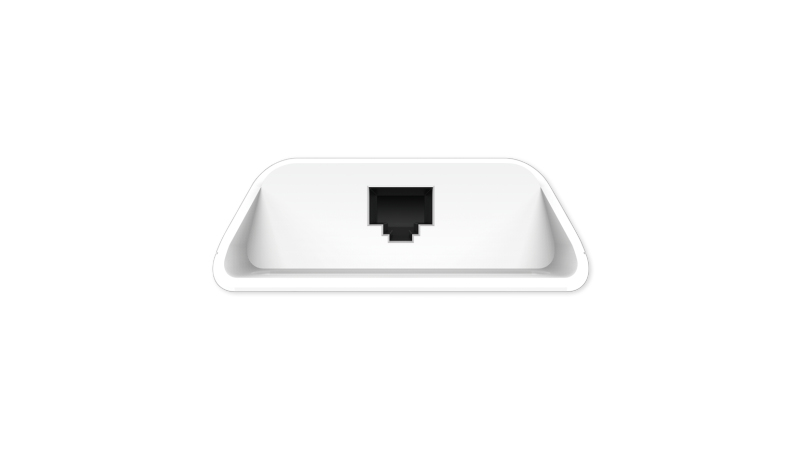

The device features two Ethernet LAN ports (RJ-45), one serving as the network input and the other as the PoE device output. Power supply is provided via a DC connector, which connects to a power adapter. The input voltage of the power adapter ranges from 100 to 240 V at a frequency of 50/60 Hz. The maximum power consumption is 32.4 W, with an output current of 0.6 A. LED indicators provide visual status display of the device.
Technology Explained Simply
The DPE-301GI uses Power over Ethernet (PoE) technology, transmitting power and data over the same Ethernet cable. This reduces the need for separate power cables and allows flexible placement of end devices. PoE technology is based on the IEEE 802.3af and IEEE 802.3at standards, with the DPE-301GI supporting the PoE+ specification (IEEE 802.3at), which enables higher power delivery than classic PoE (IEEE 802.3af). The maximum transmission distance is 100 meters, allowing use in larger buildings or across multiple rooms.
Compatibility and Accessories
The device is compatible with PoE-enabled end devices supporting the IEEE 802.3af or IEEE 802.3at standards. It can be used with network cameras, WLAN access points, or other PoE-enabled devices. Operation requires an Ethernet cable of Category 5e or higher to ensure full speeds and PoE functionality.
Mounting and Installation
The DPE-301GI is designed for wall mounting and can be fixed at a suitable location within the building. Installation involves connecting the power adapter to a power outlet and linking the Ethernet cables to the respective RJ-45 ports. The Plug-and-Play function requires no additional configuration, enabling quick and easy commissioning.
Operational Advantages
The combination of power supply and network connection over a single cable reduces cable count and simplifies installation. Flexible mounting allows optimal placement of end devices, regardless of proximity to power outlets. The Plug-and-Play function reduces installation time and the need for specialized expertise. Support for Gigabit Ethernet ensures high data transfer rates required for modern network applications. The operating temperature ranges from -10 to 50 °C, with relative humidity during operation allowed between 5 and 95 %. The device is designed for indoor use and complies with certifications CE, FCC, VCCI, and RCM.
The device has dimensions of 62.2 mm (width) × 109.8 mm (depth) × 24.5 mm (height) and weighs 70 g. The color is white. Delivery includes a single D-Link DPE-301GI 1-Port Gigabit PoE+ injector. Certifications and conformity declarations include directives 2014/30/EU (EMC), 2014/35/EU (LVD), 2009/125/EC (ErP), as well as 2011/65/EU & (EU)2015/863 (RoHS).
Applications
The DPE-301GI is suitable for powering PoE-enabled devices indoors, particularly in areas where no direct power supply is available, such as ceilings, corridors, or entrances. The flexible wall-mounting option allows for easy installation at various locations. The Plug-and-Play function enables commissioning without additional software or configuration, simplifying installation especially for users with limited technical knowledge.
Functions and Equipment in Detail
The device features two Ethernet LAN ports (RJ-45), one serving as the network input and the other as the PoE device output. Power supply is provided via a DC connector, which connects to a power adapter. The input voltage of the power adapter ranges from 100 to 240 V at a frequency of 50/60 Hz. The maximum power consumption is 32.4 W, with an output current of 0.6 A. LED indicators provide visual status display of the device.
Technology Explained Simply
The DPE-301GI uses Power over Ethernet (PoE) technology, transmitting power and data over the same Ethernet cable. This reduces the need for separate power cables and allows flexible placement of end devices. PoE technology is based on the IEEE 802.3af and IEEE 802.3at standards, with the DPE-301GI supporting the PoE+ specification (IEEE 802.3at), which enables higher power delivery than classic PoE (IEEE 802.3af). The maximum transmission distance is 100 meters, allowing use in larger buildings or across multiple rooms.
Compatibility and Accessories
The device is compatible with PoE-enabled end devices supporting the IEEE 802.3af or IEEE 802.3at standards. It can be used with network cameras, WLAN access points, or other PoE-enabled devices. Operation requires an Ethernet cable of Category 5e or higher to ensure full speeds and PoE functionality.
Mounting and Installation
The DPE-301GI is designed for wall mounting and can be fixed at a suitable location within the building. Installation involves connecting the power adapter to a power outlet and linking the Ethernet cables to the respective RJ-45 ports. The Plug-and-Play function requires no additional configuration, enabling quick and easy commissioning.
Operational Advantages
The combination of power supply and network connection over a single cable reduces cable count and simplifies installation. Flexible mounting allows optimal placement of end devices, regardless of proximity to power outlets. The Plug-and-Play function reduces installation time and the need for specialized expertise. Support for Gigabit Ethernet ensures high data transfer rates required for modern network applications. The operating temperature ranges from -10 to 50 °C, with relative humidity during operation allowed between 5 and 95 %. The device is designed for indoor use and complies with certifications CE, FCC, VCCI, and RCM.
The device has dimensions of 62.2 mm (width) × 109.8 mm (depth) × 24.5 mm (height) and weighs 70 g. The color is white. Delivery includes a single D-Link DPE-301GI 1-Port Gigabit PoE+ injector. Certifications and conformity declarations include directives 2014/30/EU (EMC), 2014/35/EU (LVD), 2009/125/EC (ErP), as well as 2011/65/EU & (EU)2015/863 (RoHS).
| Certificates | |
| Certification | CE, FCC, VCCI, RCM |
| Features | |
| Product colour | White |
| Wall mountable | |
| Easy to install | |
| Rack mounting | |
| Plug and Play | |
| LED indicators | |
| Logistics data | |
| Shipping (inner) case length | 32.6 cm |
| Shipping (inner) case width | 23.3 cm |
| Shipping (inner) case height | 36 cm |
| Shipping (inner) case net weight | 4.1 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 297.8 kg |
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Products per pallet (air) | 600 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 194 cm |
| Pallet gross weight (sea) | 297.8 kg |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Products per pallet (sea) | 600 pc(s) |
| Pallet height (sea) | 194 cm |
| Shipping (inner) case gross weight | 4.63 kg |
| Harmonized System (HS) code | 85044095 |
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Power over Ethernet (PoE) | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Packaging data | |
| Package width | 153 mm |
| Package depth | 213 mm |
| Package height | 68 mm |
| Package weight | 398 g |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Output current | 0.6 A |
| Power consumption (max) | 32.4 W |
| Weight & dimensions | |
| Width | 62.2 mm |
| Depth | 109.8 mm |
| Height | 24.5 mm |
| Weight | 70 g |
