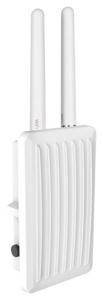

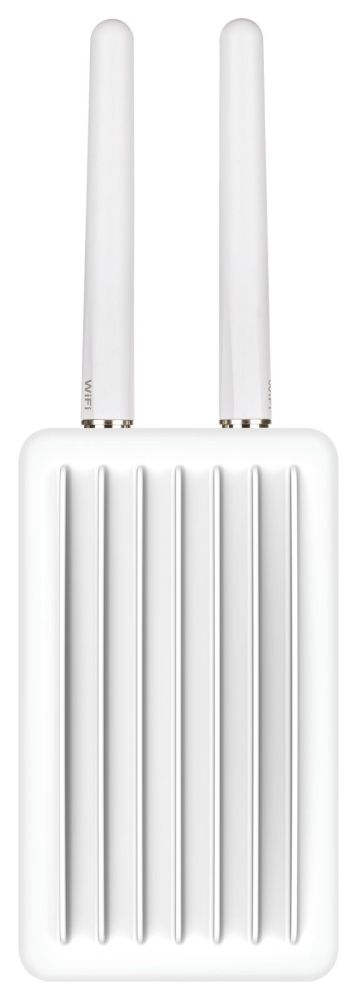

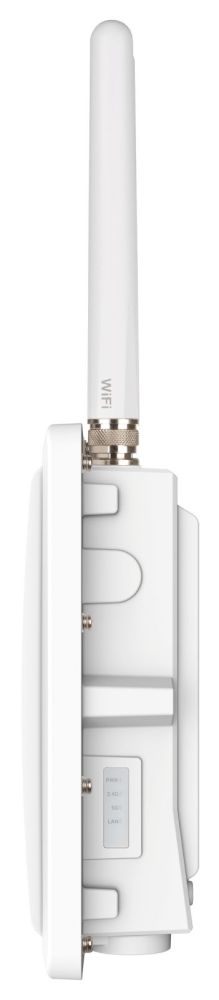

D-Link DIS-3650AP
Industrial Outdoor AC1200 Wave 2 Acc.Point content_copy

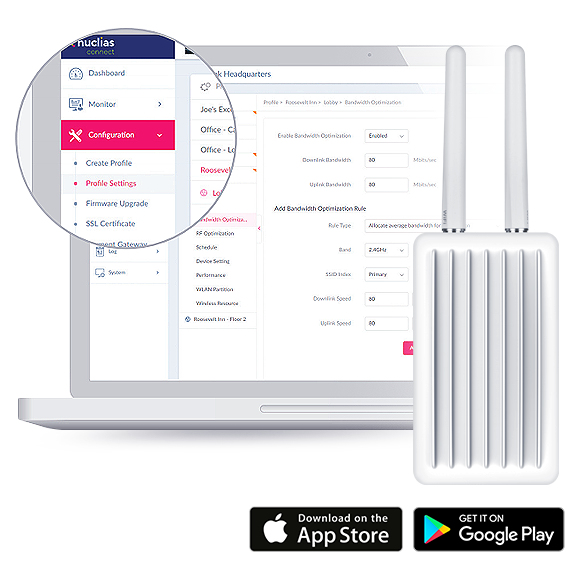

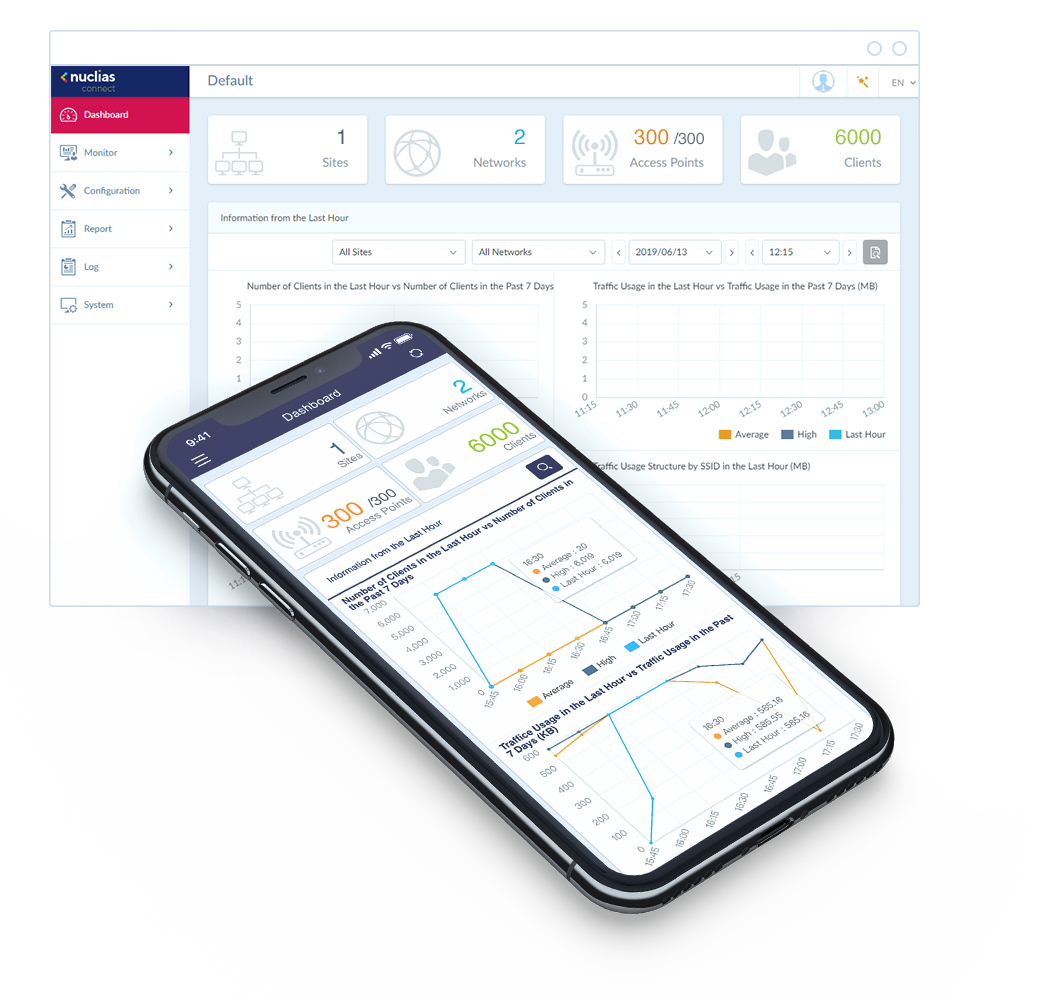

Fast WiFi even in extreme weather conditions. Fast dual-band Wi-Fi you can rely on even in extreme environments thanks to a robust, IP67 weatherproof housing. D-Link's DIS-3650AP AC1200 access point can be mounted on DIN rails, walls and poles, making it ideal for industrial installations. It can be operated either as a standalone device or together with Nuclias Connect. You can either use these locally or host them on a public cloud service. Administration tasks are completed in no time. The Nuclias Connect app and software on your PC/server provide easy access, automation and network scaling. The DIS-3650AP delivers reliable and fast performance thanks to Wireless AC Wave 2 with maximum combined wireless transfer rates of up to 1,200 Mbit/s as well as a Gigabit LAN port for powerful backhaul to the wired network. It also supports multiple VLANs for improved network management, 16 SSID setups, MAC address filtering, Wi-Fi partitioning, and uses WPA3 Wi-Fi security for enhanced network protection.

Highlights

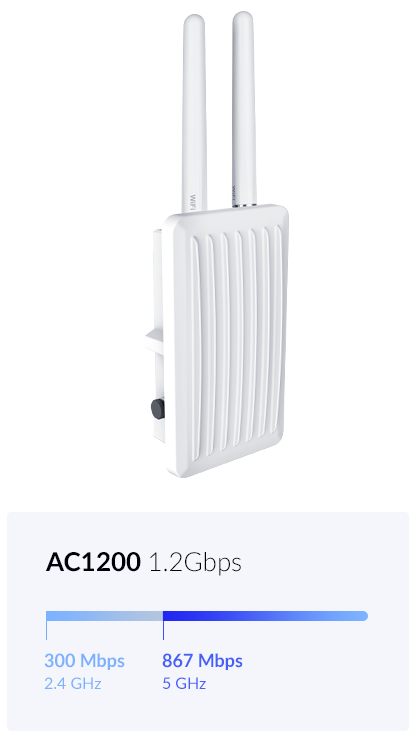

• AC1200 dual-band speeds: 300 Mbps in 2.4 GHz, 867 Mbps in 5 GHz
• Designed for industrial use, robust housing, IP67 weatherproof
• Wide operating temperature range from -20 to 65 °C
• Surge protection up to 6 kV, ESD protection up to 8 kV
• MU-MIMO, 802.11k/r fast roaming, WPA3 encryption

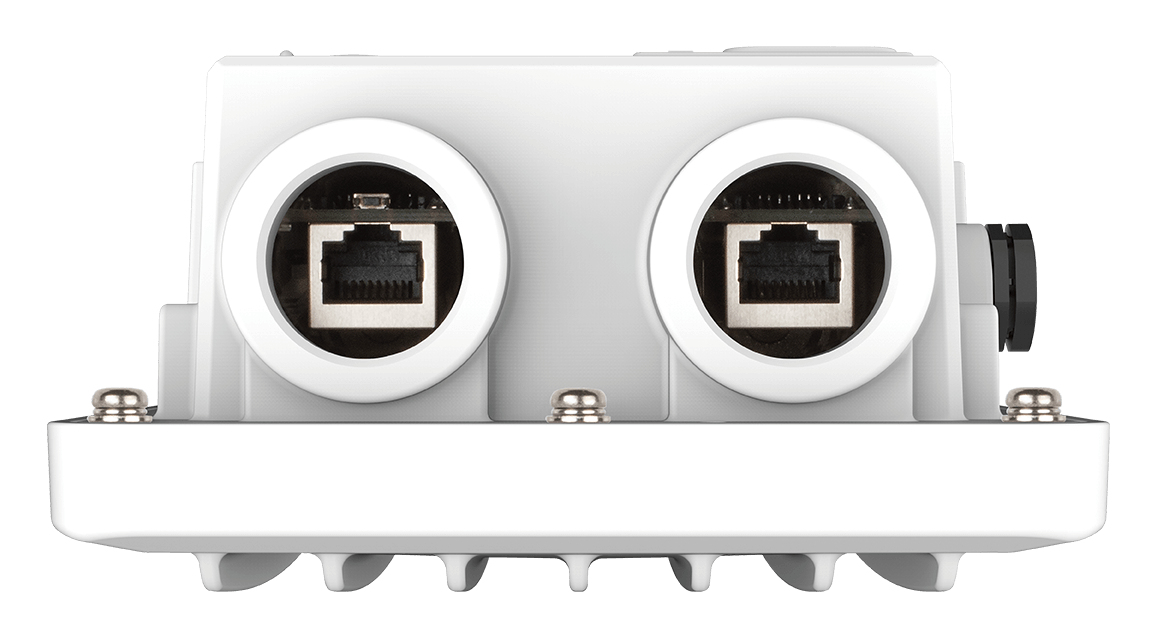

• 1 x Gigabit LAN (supports PoE 802.3at), 1 x console port

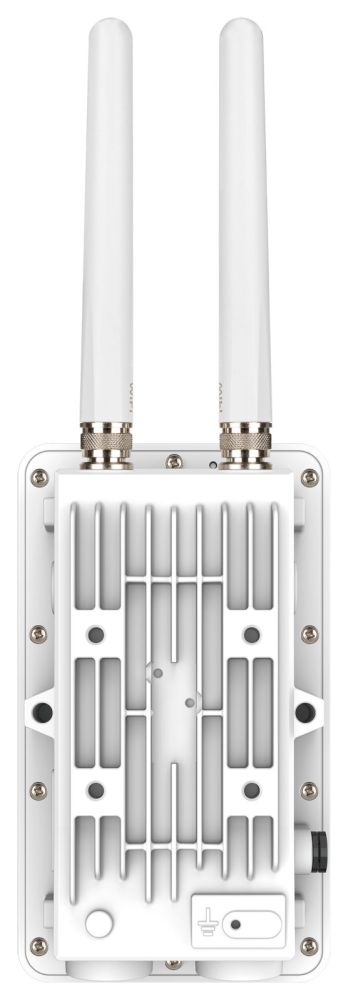

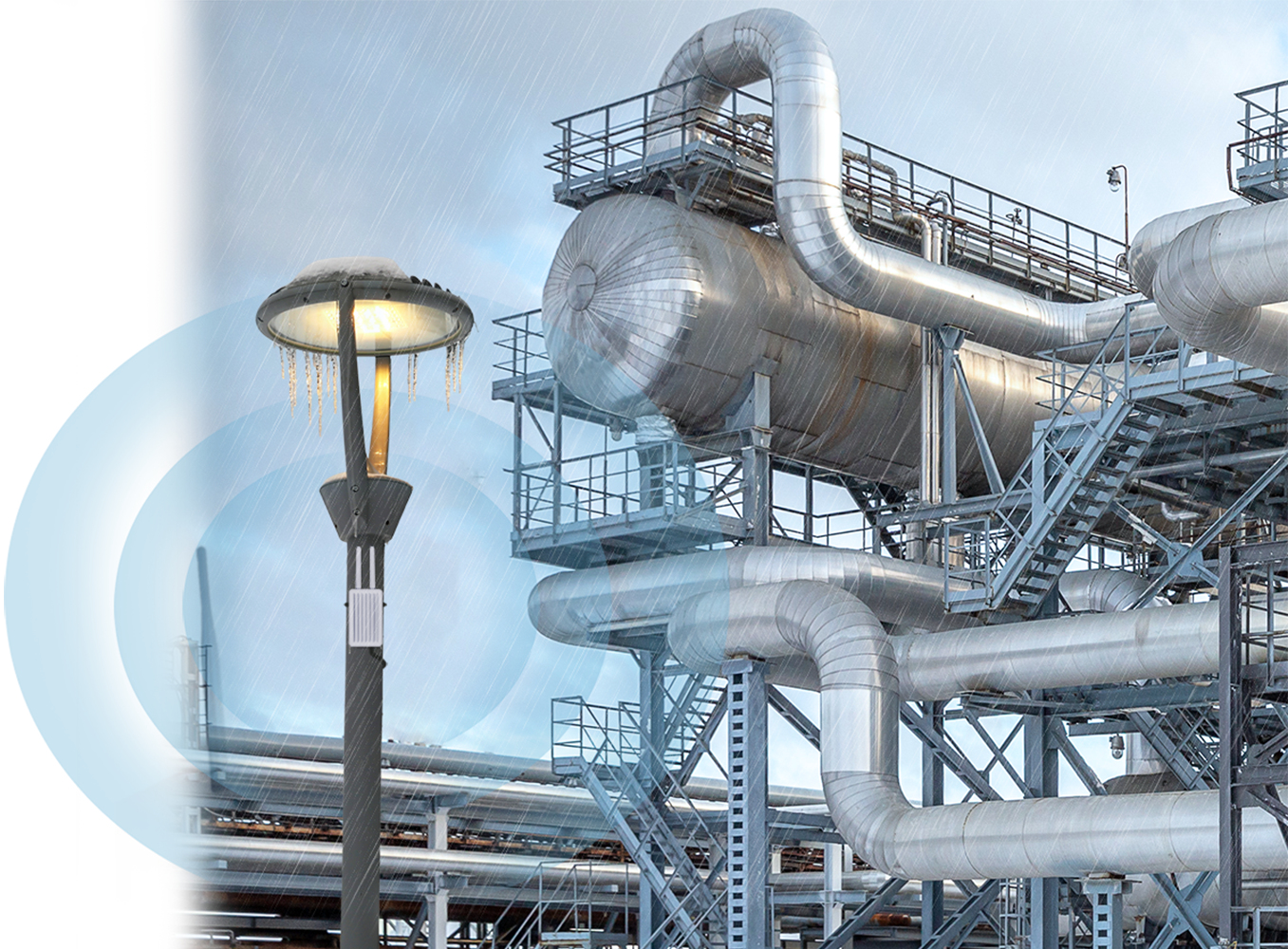

• Attachment with flexible wall/pole mount or Mounting on the DIN rail

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Operating temperature max: 65 °C
• Operating temperature min: -20 °C
• Area of application: Outdoor

Shipping

• WEEE: 10490255

Connections

• Connection: RJ45

Power supply

• PoE standard: PoE+ - 802.3at
• Power supply: No

Antenna

• Antenna technology: omnidirectional
• Reception standard: WLAN
• Gain: 5 dbi

Data transmission

• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5

Basic properties

• Color: White
• Height: 220.46 mm
• Length/Depth: 72.54 mm
• Width: 127.46 mm
• Weight: 1069.6 g

Scope of delivery

• D-Link AC1200 access point DIS-3650AP

Antenna
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	5 dBi
Certificates
Compliance certificates	CE, Low Voltage Directive (LVD)
Design
Placement	Pole, Wall
Product colour	White
International Protection (IP) code	IP67
LED indicators
Features
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	866 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.5, 5.15 - 5.35, 5.47 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Cabling technology	10/100/1000Base-T(X)
MIMO type	Multi User MIMO
2.4 GHz
5 GHz
6 GHz
MIMO
Fast roaming
Logistics data
Harmonized System (HS) code	85176990
Management features
Web-based management
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-20 - 65 °C
Storage temperature (T-T)	-40 - 80 °C
Storage relative humidity (H-H)	5 - 95%
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
Power
Power over Ethernet (PoE)
Security
Security algorithms	64-bit WEP, 128-bit WEP, SSID, SSL/TLS, WPA, WPA2, WPA3
Sustainability
Sustainability compliance
Weight & dimensions
Width	127.5 mm
Depth	72.5 mm
Height	220.5 mm
Weight	1.07 kg

---
