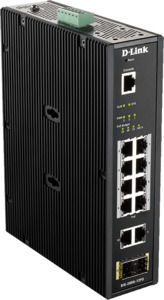

D-Link DIS-200G-12PS 12-Port Gigabit Industrial PoE Switch
|
726,47 EUR |
|||||||||||
|
( 864,50 EUR incl. VAT ) ≈ £605.88 | ≈ $811.47 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1497753 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | DIS-200G-12PS | ||||||||||
| UPC/EAN: | 0790069433504 | ||||||||||
| Weight: | 2.1975 kg | ||||||||||
| Type: | DIS-200G-12PS | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DIS-200G-12PS:
Highlights
- 8 x 10/100/1000BASE-T PoE ports and 2 x SFP ports
- 2 x 10/100/1000BASE-T ports
- Maximum PoE capacity 240 W
- Fanless, passive cooling design
- Built-in 6 kV surge protection Copper connections
- IEEE 802.1q and port-based VLAN
- IEEE 802.1p Quality of Service (QoS)
- Auto-monitoring VLAN 2.0 (ASV 2.0)
- Switch
- ear category (ElektroG): relevant, Category 6: small IT devices and telecommunications technology, small devices for IT and telecommunications technology B2C
- WEEE: 10490255
- Total number of copper ports: 8
- Total number of fiber optic ports: 2
- Total number of PoE ports: 2
- PoE budget: 240 W
- Color: Black
- Height: 210 mm
- Length/Depth: 53 mm
- Width: 171.2 mm
- Weight: 1.76 kg
- D-Link DIS-200G-12PS 12-Port Layer2 Gigabit Industrial PoE Switch
Product type
Shipping
Connections
Basic features
Scope of delivery
| Certificates | |
| Certification | CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.85 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9216 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | CISPR 22, FCC Part 15B Class A |
| Rack mounting | |
| LED indicators | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Virtual LAN features | Voice VLAN, Tagged VLAN, Port-based VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-negotiation | |
| Active link detection | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 887.16 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Performance | |
| Mean time between failures (MTBF) | 205689 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Power | |
| DC input voltage | 46 - 54 V |
| Power consumption (max) | 260 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3, SNTP, Telnet |
| Security | |
| DHCP features | DHCP client |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| Authentication | Port-based authentication |
| Authentication type | RADIUS |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 171.2 mm |
| Depth | 53 mm |
| Height | 210 mm |
| Weight | 1.76 kg |
