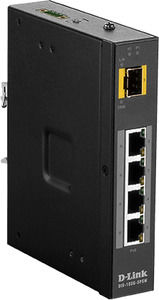

D-Link DIS-100G-5PSW 5-Port Gigabit PoE industrial switch
|
363,11 EUR |
|||||||||||
|
( 432,10 EUR incl. VAT ) ≈ £302.83 | ≈ $405.59 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| End-Of-Life: | 10. Sep 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 1472414 | ||||||||||
| Mfg Part No: | DIS-100G-5PSW | ||||||||||
| UPC/EAN: | 0790069437885 | ||||||||||
| Weight: | 0.7 kg | ||||||||||
| Type: | CPNT | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DIS-100G-5PSW:
The DIS-100G Series Industrial Gigabit Unmanaged Switches are specifically designed to withstand a wide range of temperatures, vibration and shock. These rugged yet easy-to-setup switches offer superior environmental protection compared to commercial switches.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections. DIS-100G Unmanaged Switches feature 5 Gigabit Ethernet ports and, as a true plug-and-play solution, support standard industry applications without complicated setup.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections. DIS-100G Unmanaged Switches feature 5 Gigabit Ethernet ports and, as a true plug-and-play solution, support standard industry applications without complicated setup.
Highlights
- 4x 100/1000BaseT PoE ports
- 1x 100/1000Base SFP slot
- Switch capacity: 10 GBit/s
- 120 W PoE budget
- Unmanaged, uncomplicated, plug-and-play
- Industrial-grade temperature range
- Certified vibration, shock and , drop resistance, NEMA-TS2 Section 2, and EMC
- Fanless passive cooling
- Mounting on DIN rails
- Power supply via redundant input connections
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices -Technology, small devices for IT and telecommunications technology B2C
- Switch type: Industry
- Switching capacity: 10 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 4
- Total number of fiber optic ports: 1
- Total number of PoE ports: 4
- Bandwidth: 10/100/1000 MBit/s
- PoE standard: PoE - 802.3af, PoE+ - 802.3at
- PoE budget: 120 W
- Main port type: copper
- Number of PoE+ (af/ at) Ports: 4
- Number of RJ45 ports (1G): 4
- Number of SFP ports (1G): 1
- Switch manageable: No
- Mounting type: wall, DIN rail/hat rail
- Color: Black
- Height: 139 mm
- Length/Depth: 107 mm
- Width: 29 mm
- Weight: 500 g
- D-Link DIS-100G-5PSW 5-Port Gigabit PoE Industrial Switch
Product type
Specifications
Shipping
Connections
Functions
Basic properties
Scope of delivery
| Certificates | |
| Certification | IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames | 9000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | LAN, PoE, Power |
| Electromagnetic compatibility | FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3) |
| Rack mounting | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Traffic shaping | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 410.12 BTU/h |
| Packaging data | |
| Package width | 181 mm |
| Package depth | 210 mm |
| Package height | 75 mm |
| Package weight | 700 g |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Fiber optic connector | LC |
| Power | |
| DC input voltage | 12 - 58 V |
| Power consumption (max) | 120.2 W |
| Power protection features | Over current, Reverse polarity |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage range | 54 - 58 V |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | |
| Technical details | |
| Shipping (inner) case height | 24 cm |
| Shipping (inner) case width | 38 cm |
| Shipping (inner) case length | 39 cm |
| Shipping (inner) case net weight | 7 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 251.3 kg |
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Products per pallet (air) | 300 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 133.5 cm |
| Pallet gross weight (sea) | 391.9 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Pallet height (sea) | 2.06 m |
| Shipping (inner) case gross weight | 7.81 kg |
| Weight & dimensions | |
| Width | 139 mm |
| Depth | 29 mm |
| Height | 107 mm |
| Weight | 375 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of D-Link DIS-100G-5PSW 5-Port Gigabit PoE industrial switch?
The article D-Link DIS-100G-5PSW 5-Port Gigabit PoE industrial switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DIS-100G-5PSW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you D-Link DIS-100G-5PSW 5-Port Gigabit PoE industrial switch always at the best possible price. We can give you a discount of 2% on D-Link DIS-100G-5PSW 5-Port Gigabit PoE industrial switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of D-Link DIS-100G-5PSW 5-Port Gigabit PoE industrial switch we can offer you a price of 338,60 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
