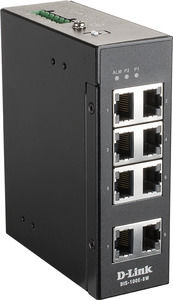

D-Link DIS-100E-8W 8-Port Fast Ethernet industrial switch
|
-7% 191,60 EUR 206,33 EUR |
|
|
( 228,00 EUR incl. VAT ) ≈ £159.79 | ≈ $214.02 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1473085 |
| Mfg Part No: | DIS-100E-8W |
| UPC/EAN: | 0790069441288 |
| Weight: | 0.6 kg |
| Type: | DIS-100E-8W |
Product information for D-Link DIS-100E-8W:
The DIS-100E Series Industrial Fast Ethernet Unmanaged Switches are specifically designed to withstand a wide range of temperatures, vibration and shock. These rugged yet easy-to-setup switches provide superior environmental protection compared to commercial switches.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections. DIS-100E Unmanaged Switches feature 5 or 8 Fast Ethernet ports and, as a true plug-and-play solution, support standard industry
applications without complicated setup.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections. DIS-100E Unmanaged Switches feature 5 or 8 Fast Ethernet ports and, as a true plug-and-play solution, support standard industry
applications without complicated setup.
Highlights
- Robust, durable construction
- High reliability
- Suitable for difficult environmental conditions
- Options for DIN rail and wall mounting
- Excellent for use in edge areas
- Switch
- ear category (ElektroG): relevant, category 6: Small IT and telecommunications devices, Small IT and telecommunications devices B2C
- Switch type: Industry
- WEEE: 10490255
- Total number of copper ports: 8
- Main port type: Copper
- Switch manageable: No
- Mounting type: wall, DIN rail/hat rail
- Color: Black
- Height: 117.8 mm
- Length/depth: 96.9 mm
- Width: 39 mm
- Weight: 405 g
- D-Link DIS-100E -8W 8-Port Fast Ethernet Industrial Switch
Product type
Specifications
Shipping
Connections
Functions
Basic properties
Scope of delivery
| Certificates | |
| Certification | UL 60950‑1 CE FCC |
| Data transmission | |
| MAC address table | 1000 entries |
| Store-and-forward | |
| Design | |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Rack mounting | |
| Stackable | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Network | |
| Networking standards | IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 178 mm |
| Package height | 83 mm |
| Package weight | 570 g |
| Performance | |
| Mean time between failures (MTBF) | 219000 h |
| Plug and Play | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Relay outputs | 1 |
| Power | |
| DC input voltage | 12 - 58 V |
| Power consumption (typical) | 1.41 W |
| Power consumption (max) | 1.64 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Technical details | |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case width | 30.5 cm |
| Shipping (inner) case length | 43 cm |
| Shipping (inner) case net weight | 6.64 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 257.4 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 360 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 135 cm |
| Pallet gross weight (sea) | 377.1 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 540 pc(s) |
| Pallet height (sea) | 195 cm |
| Shipping (inner) case gross weight | 6.65 kg |
| Weight & dimensions | |
| Width | 39 mm |
| Depth | 96.9 mm |
| Height | 117.8 mm |
| Weight | 405 g |
