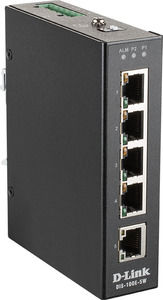

D-Link DIS-100E-5W 5-Port Fast Ethernet industrial switch
|
-7% 154,88 EUR 166,39 EUR |
|
|
( 184,31 EUR incl. VAT ) ≈ £129.17 | ≈ $173.00 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1472415 |
| Mfg Part No: | DIS-100E-5W |
| UPC/EAN: | 0790069441271 |
| Weight: | 0.515 kg |
| Type: | DIS-100E-5W |
Product information for D-Link DIS-100E-5W:
The DIS-100E Series Industrial Fast Ethernet Unmanaged Switches are specifically designed to withstand a wide range of temperatures, vibration and shock. These rugged yet easy-to-setup switches provide superior environmental protection compared to commercial switches.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections. DIS-100E Unmanaged Switches feature 5 or 8 Fast Ethernet ports and, as a true plug-and-play solution, support standard industry
applications without complicated setup.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections. DIS-100E Unmanaged Switches feature 5 or 8 Fast Ethernet ports and, as a true plug-and-play solution, support standard industry
applications without complicated setup.
Highlights
- Robust, durable construction
- High reliability
- Suitable for difficult environmental conditions
- Options for DIN rail and wall mounting
- Excellent for use in edge areas
- Switch
- ear category (ElektroG): relevant, category 6: Small IT and telecommunications devices, Small IT and telecommunications devices B2C
- Switch type: Industry
- WEEE: 10490255
- Total number of copper ports: 5
- Main port type: Copper
- Switch manageable: No
- Mounting type: wall, DIN rail/top hat rail
- Color: Black
- Height: 109.2 mm
- Length/depth: 89.4 mm
- Width: 29.1 mm
- Weight: 320 g
- D-Link DIS-100E -5W 5-Port Fast Ethernet Industrial Switch
Product type
Specifications
Shipping
Connections
Functions
Basic properties
Scope of delivery
| Certificates | |
| Certification | UL 60950‑1 CE FCC |
| Data transmission | |
| MAC address table | 1000 entries |
| Store-and-forward | |
| Design | |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Rack mounting | |
| Stackable | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Network | |
| Networking standards | IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 178 mm |
| Package height | 83 mm |
| Package weight | 488 g |
| Performance | |
| Mean time between failures (MTBF) | 219000 h |
| Plug and Play | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Relay outputs | 1 |
| Power | |
| DC input voltage | 12 - 58 V |
| Power consumption (typical) | 0.95 W |
| Power consumption (max) | 1.56 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Technical details | |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case width | 30.5 cm |
| Shipping (inner) case length | 43 cm |
| Shipping (inner) case net weight | 5.78 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 226.4 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 360 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 135 cm |
| Pallet gross weight (sea) | 330.7 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 540 pc(s) |
| Pallet height (sea) | 195 cm |
| Shipping (inner) case gross weight | 5.79 kg |
| Weight & dimensions | |
| Width | 29.1 mm |
| Depth | 89.4 mm |
| Height | 109.2 mm |
| Weight | 320 g |
Questions & answers
What is the delivery time of D-Link DIS-100E-5W 5-Port Fast Ethernet industrial switch?
The article D-Link DIS-100E-5W 5-Port Fast Ethernet industrial switch is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DIS-100E-5W to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you D-Link DIS-100E-5W 5-Port Fast Ethernet industrial switch always at the best possible price. We can give you a discount of 2% on D-Link DIS-100E-5W 5-Port Fast Ethernet industrial switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
