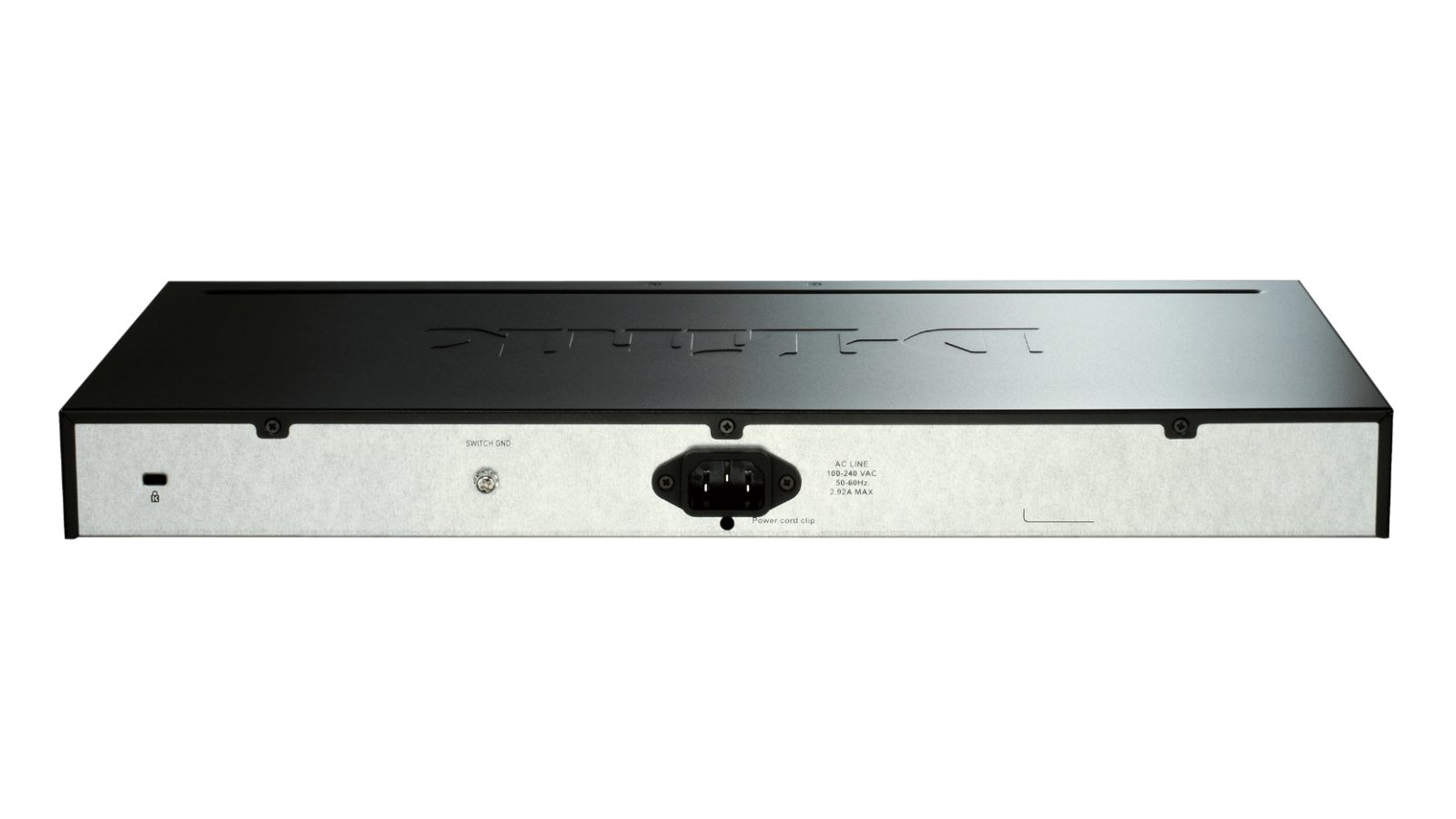

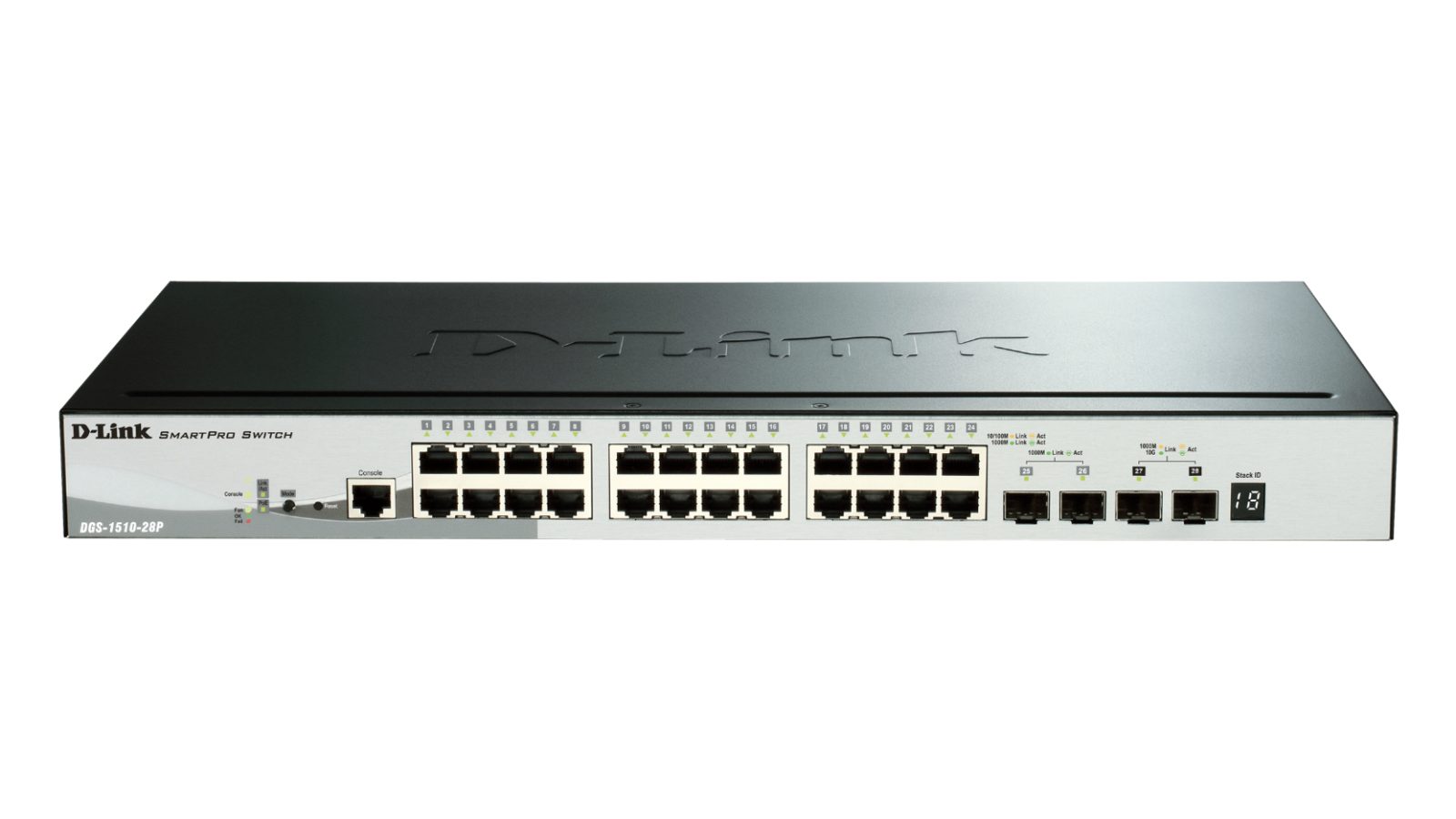

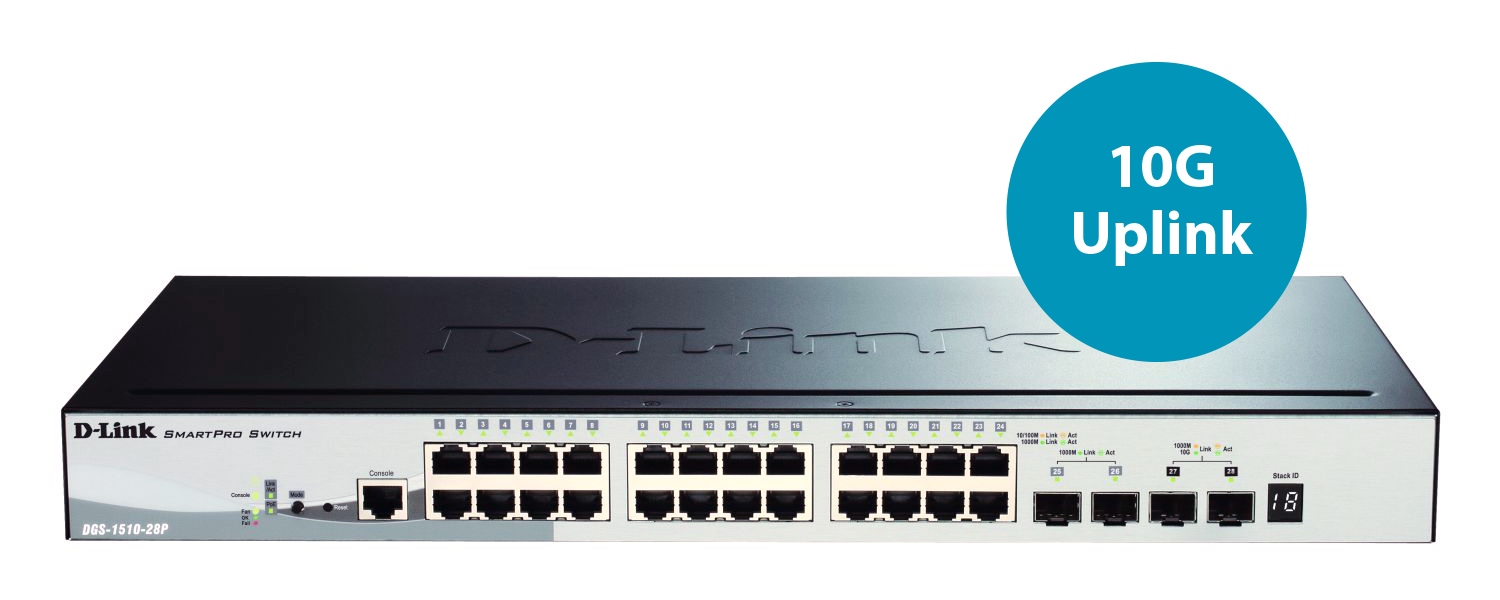

D-Link SmartPro DGS-1510-28P 28 Ports Manageable Ethernet Switch - 28 x PoE Ports
|
678,58 EUR |
|
|
( 807,51 EUR incl. VAT ) ≈ £567.97 | ≈ $759.33 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| End-Of-Life: | 05. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 120417 |
| Mfg Part No: | DGS-1510-28P/E |
| UPC/EAN: | 0790069467936 |
| Weight: | 4.112 kg |
| Type: | DGS-1510-28P/E |
Product information for D-Link DGS-1510-28P/E:
D-Link's DGS-1510 series is the latest generation of smart managed switches and features 10G SFP+ fiber ports for physical stacking or uplinks. Combining high-bandwidth connections, an industry-standard CLI and PoE options, the DGS-1510 series is the ideal solution for small to medium-sized businesses.
Highlights
- 24 x Gigabit Ethernet port with PoE support
- 2 x Gigabit SFP port
- 2 x 10G SFP+ port
- Virtual stacking with up to 32 devices
- Physical stacking for up to six devices
- Switching capacity 92 Gbit/s
- PoE budget: 193 W with up to 30 W per port
- Smart Fan Technology
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C
- Integrated fan
- Switch type: Access
- Switching capacity: 92 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 24
- Total number of fiber optic ports: 4
- Total number of PoE ports: 24
- Bandwidth : 10/100/1000 MBit/s
- PoE standard: PoE - 802.3af, PoE+ - 802.3at
- PoE budget: 193 W
- Console port
- Main port type: Copper
- Number of PoE+ (af/at) ports: 24
- Number of RJ45 Ports (1G): 24
- Number of SFP ports (1G): 2
- Number of SFP+ ports (10G): 2
- Switch manageable: Yes
- Mounting type: 48,3 cm ( 19 inch ) rack mounting
- Stacking
- IGMP
- Power supply: integrated
- Color: Silver, Black
- Height: 44 mm
- Length/Depth: 210 mm
- Width: 440 mm
- Weight: 2.54 kg
- D-Link DGS-1510-28P 28-Port Smart Managed PoE Gigabit Stackable Switch
Product type
Specifications
Shipping
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Certification | CE, FCC, C-Tick, VCCI, BSMI, CCC |
| Data transmission | |
| Switching capacity | 92 Gbit/s |
| Forwarding rate | 68.45 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 512 |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 2 fan(s) |
| Safety | cUL, CB |
| Rack mounting | |
| Stackable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat5, Cat5e |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Head-of-line (HOL) blocking | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 813.967 BTU/h |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 348 mm |
| Package depth | 511 mm |
| Package height | 91 mm |
| Package weight | 4 kg |
| Performance | |
| Physical stacking (units) | 6 |
| Virtual stacking (units) | 32 |
| Noise level | 46.4 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 238.7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 193 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Static port security | |
| SSH/SSL support | |
| Technical details | |
| Shipping (inner) case height | 38.3 cm |
| Shipping (inner) case width | 29.6 cm |
| Shipping (inner) case length | 52.9 cm |
| Shipping (inner) case net weight | 9.27 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 533.9 kg |
| Master (outer) cases per pallet (air) | 40 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.05 m |
| Pallet gross weight (sea) | 533.9 kg |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Products per pallet (sea) | 120 pc(s) |
| Pallet height (sea) | 2.05 m |
| Shipping (inner) case gross weight | 12.9 kg |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 2.54 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
