CUDY M11000(1-Pack) BE11000 Tri-Band Wi-Fi 7 Mesh 2.5G Solution,

Your rating:
Average rating
product review for CUDY M11000(1-Pack) BE11000 Tri-Band Wi-Fi 7 Mesh 2.5G Solution,
( 4.5 / 5 ) 4 ratings

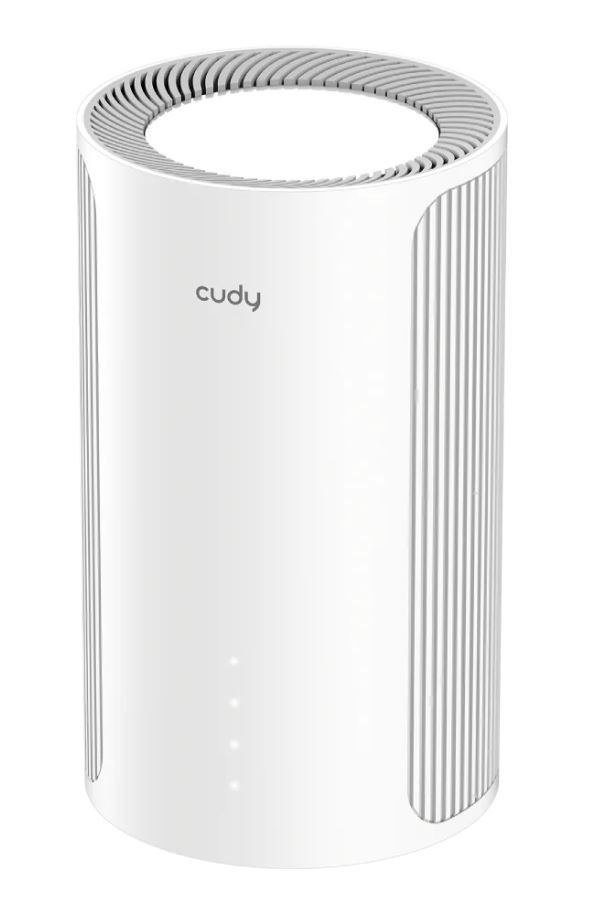

CUDY M11000(1-Pack)
This image may differ from the desired article.
CUDY M11000(1-Pack)CUDY M11000(1-Pack)CUDY M11000(1-Pack)
129,44 EUR
( 154,04 EUR incl. VAT )
≈ £108.34  |  ≈ $142.26
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >25 pieces
1x CUDY M11000(1-Pack) BE11000 Tri-Band Wi-Fi 7 Mesh 2.5G Solution,
Datasheet:file_download Download
Lieske Part No.:1385383
Mfg Part No: M11000(1-Pack)
UPC/EAN: 6971690793616
Weight:0.68 kg

Product information for CUDY M11000(1-Pack):

The Cudy M11000 is a mesh router with Wi-Fi 7 technology, designed for wireless network coverage in larger living and working spaces. The device features a tri-band system with frequencies of 2.4 GHz, 5 GHz, and 6 GHz, achieving high network speeds and low latency. Maximum coverage reaches up to 260 m², with actual range depending on room layout and wall materials. The router is white in colour and equipped with six internal antennas featuring spherical radiation patterns, ensuring even signal distribution. A reset button allows resetting settings to factory defaults.

Applications

The M11000 is suitable for scenarios requiring high speed and low latency, such as 4K streaming, online gaming, or IoT device usage. Support for up to 300 simultaneous devices makes it appropriate for larger households or small offices. The 2.5 Gbit/s Ethernet ports enable fast connections to network devices such as NAS systems or gaming consoles. Functionality as a router, access point, repeater, or in WISP mode expands its usability in various network environments.

Features and Specifications in Detail

The device is based on a Qualcomm chipset with a 1.5 GHz quad-core processor, ensuring efficient processing of network data. The router includes 128 MB DDR-RAM and 512 MB flash memory, sufficient for processing network services and storing firmware updates. Support for MLO (Multi-Link Operation) enables higher speeds and lower latency by simultaneously utilising multiple Wi-Fi bands. MU-MIMO technology ensures multiple devices can transmit data simultaneously without interfering with each other. The integrated QoS function allows prioritisation of specific devices, for example for gaming or video streaming applications. Parental controls enable setting up user profiles with corresponding access policies.

Technical Explanation

The router supports the Wi-Fi 7 standard (802.11be), offering higher data rates, greater bandwidth, and improved efficiency compared to previous standards. Maximum WLAN data rate is 4324 Mbit/s, with the 6 GHz band operating at 5765 Mbit/s, the 5 GHz band at 4324 Mbit/s, and the 2.4 GHz band at 688 Mbit/s. Utilisation of 320 MHz bandwidth in the 6 GHz band and 4K-QAM modulation increases data processing density and enhances performance. The internal antennas provide maximum gain of 4 dBi (6 GHz), 5 dBi (5 GHz), and 5.5 dBi (2.4 GHz). MLO functionality enables devices to communicate simultaneously across multiple bands, increasing overall performance.

Compatibility and Accessories

The router is compatible with Cudy Mesh and EasyMesh, enabling network expansion via additional mesh node devices. Management is performed via the Cudy app, allowing remote control and monitoring of the network through a smartphone. Support for IPv6, DDNS, TR069/TR098/TR111/TR181, and IPTV with Tag VLAN and IGMP Snooping extends functionality for both professional and private users. Integrated VPN support (PPTP, L2TP, OpenVPN, WireGuard, ZeroTier) enables secure remote access. Network connectivity is provided via four 2.5 Gbit/s Ethernet LAN ports and one Ethernet WAN port.

Installation and Mounting

Installation is performed using the included Ethernet cable and AC power adapter. The quick installation guide supports the setup process. Devices can be connected in a mesh network via WLAN backhaul, with positioning in the centre of each floor recommended to ensure optimal coverage. The maximum number of obstacles between router and device should be three to maintain signal quality.

Operational Advantages

Operation of the M11000 is versatile due to support for IPv6, QoS, parental controls, and VPN functions. The high number of simultaneously connected devices (up to 300) and fast Ethernet ports (2.5 Gbit/s) ensure a stable network environment. Cloud-based remote management via the Cudy app enables flexible network control. Operating temperature ranges from 0 to 40 °C, with relative humidity during operation between 10 and 90 %. Power supply is via a 12 V/2 A power adapter, included in the delivery. Certification according to FCC and CE ensures compliance with applicable standards.

Certificates
CertificationFCC, CE
Design
Product typeMesh router
Product colourWhite
LED indicatorsStatus, System
Antenna typeInternal
Antennas quantity6
Antenna direction typeOmni-directional
Maximum coverage260 m²
Reset buttonYes
Features
Processor cores4
Processor frequency1.5 GHz
Internal memory128 MB
Flash memory512 MB
Built-in processorYes
BluetoothNo
Virtual assistantNo
Quality of Service (QoS) supportYes
Parental controlYes
MU-MIMO technologyYes
MIMOYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Packaging content
Number of products included1 pc(s)
AC adapter includedYes
Ethernet cableYes
Quick installation guideYes
Packaging data
Package width313 mm
Package depth152 mm
Package height132 mm
Package weight852.5 g
Ports & interfaces
Ethernet LAN (RJ-45) ports4
Ethernet WANYes
DC-in jackYes
Power
AC input voltage100-240 V
AC input frequency50/60 Hz
AC adapter output voltage12 V
AC adapter output current2 A
Weight & dimensions
Width116 mm
Depth116 mm
Height202 mm
Weight852.5 g
Wireless LAN features
Wi-Fi bandTri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN data transfer rate (max)4324 Mbit/s
WLAN data transfer rate (first band)2882 Mbit/s
WLAN data transfer rate (second band)2882 Mbit/s
WLAN data transfer rate (third band)688 Mbit/s
Networking standardsIEEE 802.11be
Security algorithmsWPA, WPA2, WPA3
Guest accessYes


Product data sheet
Datasheet for CUDY M11000(1-Pack), EAN: 6971690793616
